IRR Webbing (Infrared Reflective Webbing)

IRR webbing, or infrared-resistant webbing, is designed to reduce visibility under night vision and thermal imaging devices. Commonly used in military vests, belts, and backpacks, this specialized webbing helps personnel remain undetected in low-light environments by reflecting infrared radiation in a way that blends with natural surroundings.

Infrared camouflage works by disrupting visual detection through multi-layered infrared characteristics embedded in the printed patterns. These patterns reflect specific wavelengths, blending with the infrared spectrum of natural environments, including snow, rocks, urban settings, trees, and vegetation. This reduces visibility in low-light and nighttime conditions, while still maintaining a traditional camouflage appearance in daylight for effective concealment.

At Jude Webbing, we combine visual and infrared camouflage technologies to create webbing that works in both natural and artificial light conditions, providing enhanced concealment and tactical effectiveness for military and defense applications.

IRR Webbing Options We Offer

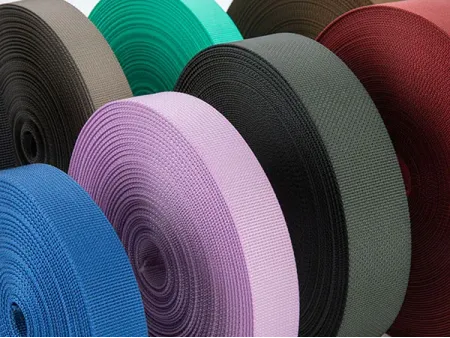

  • Solid color IRR webbing is designed for military, tactical, and outdoor applications, providing infrared concealment and durability for gear such as vests, belts, and backpacks. Engineered to meet strict industry standards, this type of webbing ensures reduced infrared visibility while maintaining high strength and color stability.

    Specifications
    Material: Nylon 6, High-Tenacity Nylon, Nylon 6.6, Polyester (PES)
    Width Options: 20mm, 25mm, 38mm, 50mm (3/4", 1", 1.5", 2") – Custom sizes available
    Color Options: Federal Standard Colors, RAL Colors, Military Shades (Black, Coyote Tan, Coyote Brown, Ranger Green, RAL 7013, RAL 6003, etc.)
    Compliance: Mil-W-17337, A-A-55301, Mil-PRF-5038
    Breaking Strength: Approx. 704 kg / 1552 lbs for 1" wide, 1.20mm thick nylon webbing
    Color Fastness: Grade 4-5, exceeding standard grade 3-4

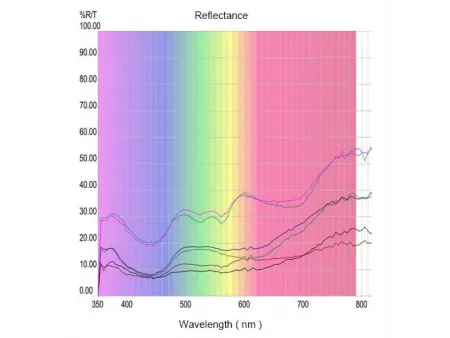

    IRR Performance: Designed for 600-860 nm IRR wavelength. Additional customization is available for extended IRR protection up to 350-3000 nm
  • Jude is the only webbing manufacturer in China that produces double-sided pattern-matched camouflage IRR webbing. This unique capability allows us to deliver specialized solutions for tactical and military applications. Our camouflage IRR webbing is designed to meet high-performance standards, combining advanced technology with practical functionality.

    Specifications
    Material: Nylon 6, High-Tenacity Nylon, Polyester
    Printing Width: Available from 5mm to 350mm. Customized widths available
    IRR Printing Technology: Screen printing and digital printing
    Pattern Repetition: No limitation on pattern repeat length with digital printing
    Camouflage Color Variability: Unlimited color variations achievable through digital printing
    Color Fastness: Grade 4-5, exceeding standard grade 3-4
    Abrasion Resistance: Over 200,000 cycles tested according to ISO 12947
    Breaking Strength: Approx. 810 kg / 1785 lbs for 1" wide, 1.20mm thick nylon webbing

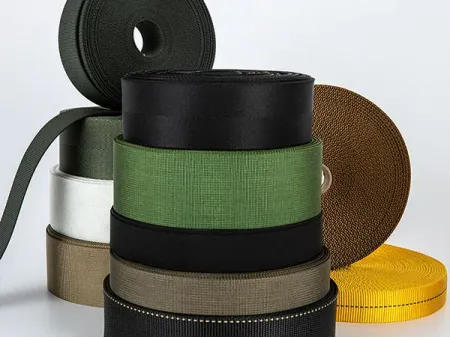

  • Specifications
    Material: Nylon, Polyester (PES), available with or without fabric edging
    Width Options: 20mm, 25mm, 38mm, 50mm (3/4", 1", 1.5", 2") – Custom sizes available
    Color Customization: Matched to fabric or sample color (Black, Coyote Tan, Coyote Brown, Ranger Green, RAL 7013, RAL 6003, etc.)
    Standards Compliance: MIL-DTL-32439B, A-A-55126
    Durability & Strength: Maintains over 95% of shear, peel, and tension strength after washing tests
    Color Fastness: Rated 4 or higher for light and wash resistance
    IRR Performance: Tested across 350-3000 nm infrared spectrum
Applications

IRR webbing are widely used in military gear, uniforms, and tactical equipment, enhancing stealth and reducing visibility in combat environments.

FAQs

Yes, we provide high-performance IRR webbing solutions with a fully integrated production facility, covering solid color and camouflage webbing, IRR elastic bands, and hook & loop fasteners. Our production facility is equipped to handle every stage from material selection to final testing, ensuring high-performance products for military and tactical applications.

Our IRR webbing is available in Nylon 6, Nylon 6.6, semi-dull nylon, and polyester, providing durability and performance suited for military gear and equipment.

Yes, we can integrate flame resistance, water repellency, UV protection, camouflage printing, and resin treatments, depending on the specific application and environmental conditions.

To ensure the best match for your needs, share information such as infrared wavelength range, reflectance values, webbing dimensions, and preferred colors. If you're unsure about specifications, our team is available to help find the right option.

We have supplied defense-grade IRR webbing to over 20 countries, including the United Kingdom, France, the United States, Switzerland, and Sweden, meeting various military and tactical requirements.
