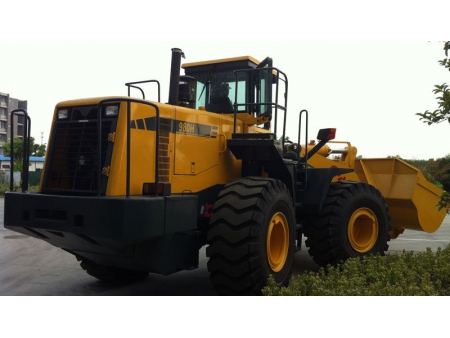

980H Wheel Loader

Request a Quote

View All: http://sinomachhiglobal.com/1wheel_loader_6.html

This 980H Wheel Loader is equipped with reliable original Cummins engine, famous original ZF wet-type axles with multi-disc limited-slip differentials, combined seal cylinder which obtains high seal performance and more reliability, dual brake valve & dual pipe full hydraulic brake and central lubrication.

Consulting Products Information

Features of 980H Wheel Loader:

KD switch allows better efficiency & easy operation
Reliable ZF transmission case and Torque Converter
Bucket automatic leveling ability
It can deliver maximum traction in changing traction conditions

Specifications of Wheel Loader 980:

Model	980H
Length×Width×Height(mm)	8696×3099×3710
Rated load (Kg)	7500
Rated bucket capacity(m³)	4.2
Operating weight(Kg)	23500
Diesel engine	Original Cummins QSM11-C290
Rated output(KW)	216
Transmission case	ZF
Gear positions	4 forward gear, 3 reverse gear
Max. drawing force(KN)	222
Max. dump clearance(mm)	3220
Dump reach (mm)	1275
Wheel base(mm)	3400
Total cycle time (s)	11.8
