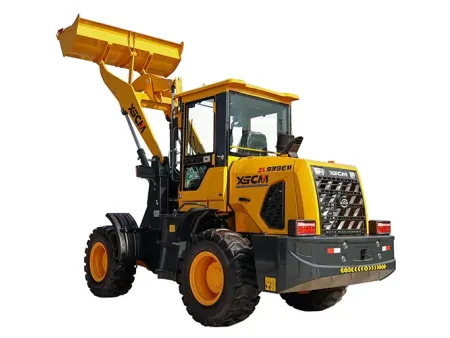

939E Wheel Loader
Request a Quote
Front end loader with diesel engine for construction, agricultural and material handling operations
- Rated load
1800kg - Rated bucket capacity
0.75m³ - Operating weight
4670kg - Dump height
3500mm
The 939E wheel loader is built with a reinforced cast drive axle, featuring large-module spiral bevel and planetary gears. Both the main transmission and wheel reduction systems use a dual-seal design, ensuring durability and minimizing the risk of leakage. With strong power and smooth performance, this model is ideal for construction, agricultural, and material handling applications where reliability and efficiency are essential.
Specifications
| Model | ZL939E |
| Rated load | 1800kg |
| Rated bucket capacity | 0.75m³ |
| Operating weight | 4670kg |
| Dump height | 3500mm |
| Min. turning radius | 2970mm |
| Power | 80~90kW |
| Dimensions (L×W×H) | 6100×2060×2840mm |
Detail Highlights

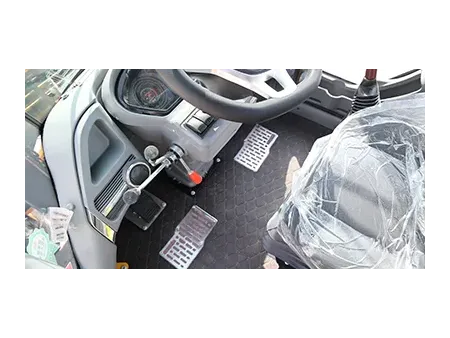

- Driving cabin
- Rear Engine hood
- Articulation joint
