This product has been discontinued and removed from our shelves.

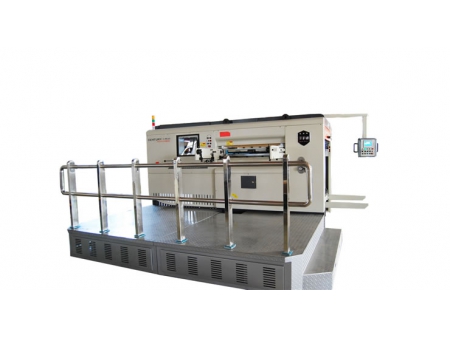

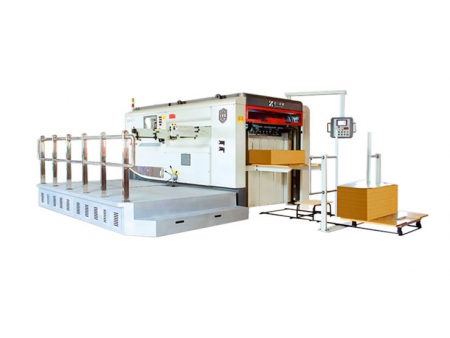

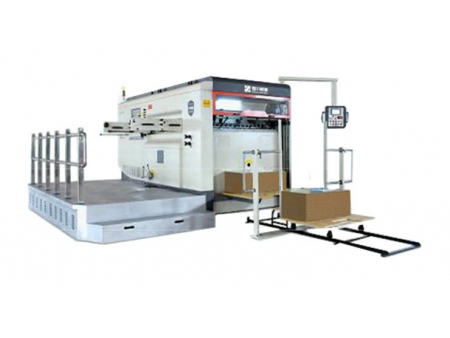

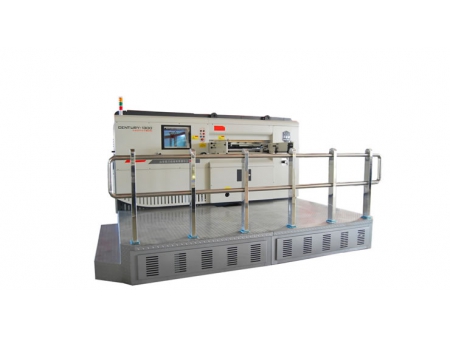

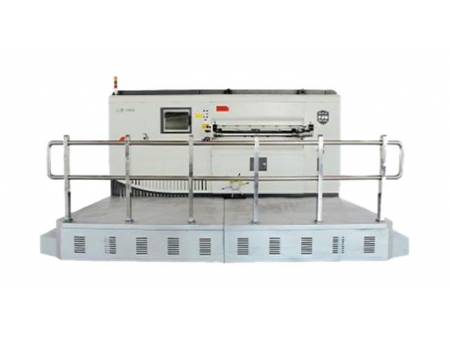

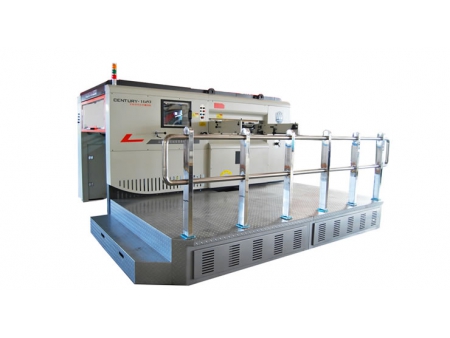

The semi-automatic die cutters are Century's best-selling product. They are designed for conversion of paper, corrugated board, PP materials, especially for curved boards.

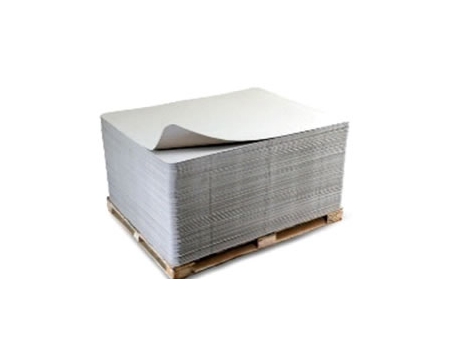

Processed Materials
Suitable for the following industries

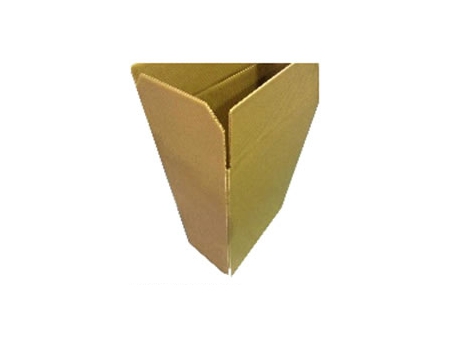

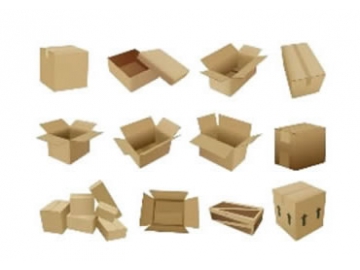

- Packaging: corrugated board, paper board and PP boxes
Features of MWB Series semi-automatic flatbed die cutting machine include
CE certified
Human machine interface
Siemens latest PLC technology
Wide stock range of paper converting
Photo-electrical device for safe operation
European, Taiwanese and Japanese standard spare parts
ISO9001:2008 approved manufacturing process.
Specifications
MWB 930 Model | MWB 930 |
Maximum paper size | 960*680mm |
Minimum paper size | 400*360mm |
Maximum cutting size | 930*660mm |
Maximum cutting pressure | 150 T |
Stock range | Corrugated board up to7mmand Cardboard >250gsm |
Cutting precision | ±0.5mm |
Maximum speed | 4,200 s/h |
Pressure adjusting range | ±1mm |
Minimum front waste | 8mm |
Inner chase size | 960*700mm |
Machine dimension (L*W*H) | 4910*3705*2045mm |
Total power | 11 KW |
Machine's weight | 9 T
|
MWB 1050 Model | MWB 1050 |
Maximum paper size | 1080*780mm |
Minimum paper size | 400*360mm |
Maximum cutting size | 1050*760mm |
Maximum cutting pressure | 200 T |
Stock range | Corrugated board up to7mmand Cardboard >250gsm |
Cutting precision | ±0.5mm |
Maximum speed | 4,200 s/h |
Pressure adjusting range | ±1mm |
Minimum front waste | 8mm |
Inner chase size | 1080*790mm |
Machine dimension (L*W*H) | 5390*4180*2165mm |
Total power | 13 kw |
Machine's weight | 10.5 T
|
MWB 1160 Model | MWB 1160 |
Maximum paper size | 1180*900mm |
Minimum paper size | 450*400mm |
Maximum cutting size | 1160*880mm |
Maximum cutting pressure | 200 T |
Stock range | Corrugated board up to7mmand Cardboard >250gsm |
Cutting precision | ±0.5mm |
Maximum speed | 4,200 s/h |
Pressure adjusting range | ±1mm |
Minimum front waste | 8mm |
Inner chase size | 1190*910mm |
Machine dimension (L*W*H) | 5610*4300*2285mm |
Total power | 13 kw |
Machine's weight | 12 T
|
MWB 1300 Model | MWB 1300 |
Maximum paper size | 1330*980mm |
Minimum paper size | 550*480mm |
Maximum cutting size | 1300*960mm |
Maximum cutting pressure | 250 T |
Stock range | B, C, A flue and double wall, Corrugated board up to9mm |
Cutting precision | ±0.5mm |
Maximum speed | 4,200 s/h |
Pressure adjusting range | ±1mm |
Minimum front waste | 8mm |
Inner chase size | 1330*990mm |
Machine dimension (L*W*H) | 6120*4615*2290mm |
Total power | 16.5 kw |
Machine's weight | 15 T
|
MWB 1450 Model | MWB 1450 |
Maximum paper size | 1480*1080mm |
Minimum paper size | 480*550mm |
Maximum cutting size | 1450*1050mm |
Maximum cutting pressure | 300 T |
Stock range | B, C, A flue and double wall, Corrugated board up to9mm |
Cutting precision | ±0.5mm |
Maximum speed | 4,000 s/h |
Pressure adjusting range | ±1mm |
Minimum front waste | 8mm |
Inner chase size | 1480*1080mm |
Machine dimension (L*W*H) | 6330*4900*2350mm |
Total power | 20.5 kw |
Machine's weight | 17 T
|
MWB 1620 Model | MWB 1620 |
Maximum paper size | 1650*1210mm |
Minimum paper size | 550*650mm |
Maximum cutting size | 1620*1190mm |
Maximum cutting pressure | 300 T |
Stock range | B, C, A flue and double wall, Corrugated board up to9mm |
Cutting precision | ±0.5mm |
Maximum speed | 3,600 s/h |
Pressure adjusting range | ±1mm |
Minimum front waste | 10mm |
Inner chase size | 1646*1220mm |
Machine dimension (L*W*H) | 6620*5330*2550mm |
Total power | 21 kw |
Machine's weight | 21 T
|
Features of machine include

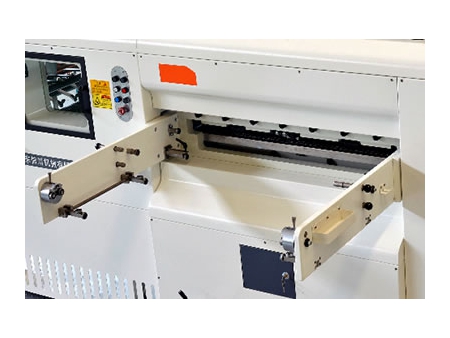

- Feeding Section
Effective manual feeding system.
Automatic sheet pile lifting system.
Side guide to position paper pile center.

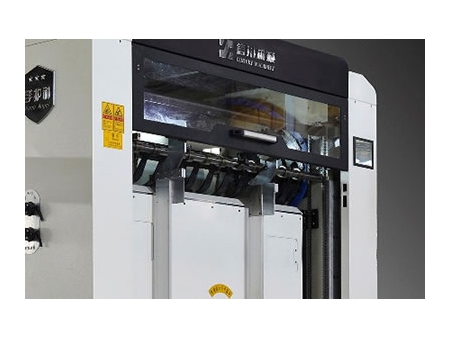

- Die Cutting Section
A pneumatic push button die-chase locking mechanism is used to ensure a safe and operator friendly changing of cutting die.
Using internationally known bearings and electronic components, precise control of the die cutting process is achieved.

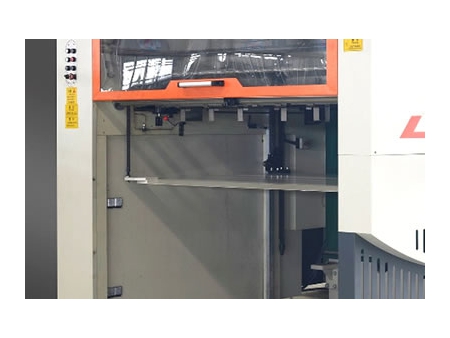

- Delivery Section
Optional function:Tape inserter.
Side and front joggers to ensure neat stacking.
Two delivery options available: pallet or trailer.
Photoelectric detective device for safety entrance and operation.

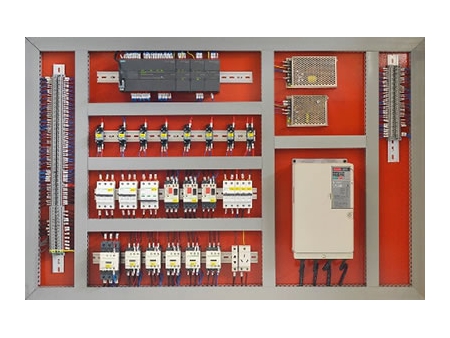

- Electrical Control Section
The electrical control section uses the latest PLC technology for trouble free operation.
This die cutting machine also uses electrical components from internationally known companies for a better performance and quick, efficient, local after-sales service and maintenance.
The semi-automatic die cutting machine is equipped with a number of safety protection devices. The machine will alarm and stop automatically when faults occur.

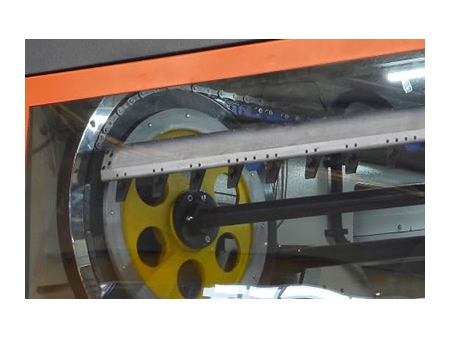

- Main Drive Chain
Heavy load and a highly precise chain achieve a high tensile strength and wear resistance.
- Main Driving System
A mono-block casting chassis is used to reduce the vibration and achieve a better performance and a longer lifespan.
A deepened oil tank to make part of worm wheel working under lubrication oil for better lubrication.
