VMC-1580 Vertical Machining Center (Box Way) 3-Axis Heavy Duty Machining Center

VMC-1580 Vertical Machining Center (Box Way)  3-Axis Heavy Duty Machining Center
VMC-1580 Vertical Machining Center (Box Way)  3-Axis Heavy Duty Machining Center
VMC-1580 Vertical Machining Center (Box Way)  3-Axis Heavy Duty Machining Center
VMC-1580 Vertical Machining Center (Box Way)  3-Axis Heavy Duty Machining Center
Request a Quote

The 3-axis heavy duty machining center has a workbench of 1700×800mm, whose maximum load is 1500kg. And it is usually used for the rough processing of different products and mold manufacturing.

Parameters
Model VMC-1580
Stroke
X-axis travel (mm) 1500
Y-axis travel (mm) 800
Z-axis travel (mm) 700
Distance from spindle nose to table center (mm) 180-880
Distance from spindle nose to table center (mm) 900
Worktable
Worktable area (mm) 1700×800
Maximum weight on table (kg) 1500
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) 18-7×120
Spindle
Standard spindle speed (r.p.m) 6000
Spindle horsepower (KW) 25 (18.5)
Spindle taper BT50φ190 (belt drive)
Feed
X、Y-axis rapid feed (mm/min) 15000
Z-axis rapid feed (mm/min) 13000
Triaxial cutting feed (mm/min) 1-7000
Others
Three-axis motor power (KW) 4.5/4.5/4.5
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 30
Air pressure (bar) 6-7
Machine weight (kg) 14000
Machine dimension (mm) 4650×3300×3200
Components display of vertical machining centers (3 axis box guideways)
  • Turntable type tool magazine, holding 24 tools.

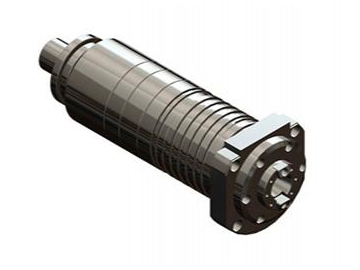

  • Mechanical spindle, direct drive

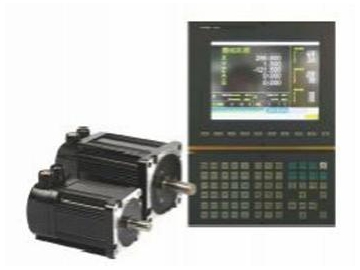

  • Control system and motor

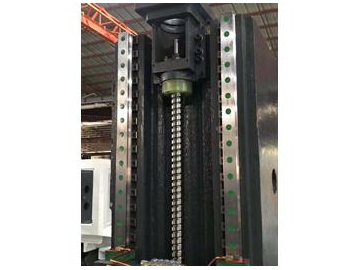

  • Box guideway
