Torsion Bar Press Brake, E21 Manufacturer

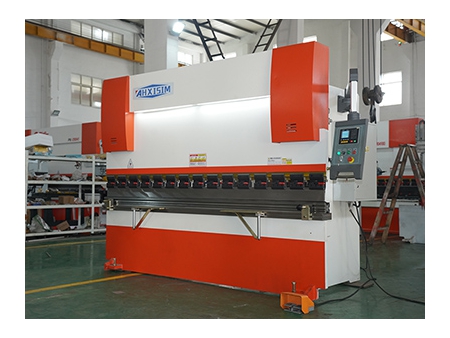

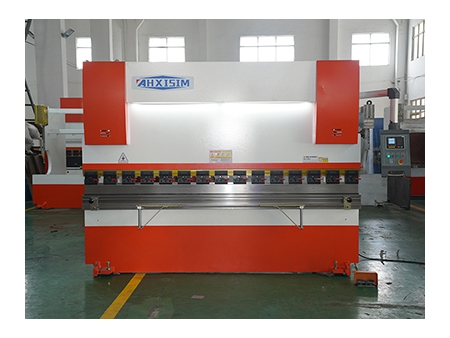

Torsion Bar Press Brake, E21

Request a Quote

View All: http://customtoolscn.com/1-3-1-torsion-bar-press-brake-e21.html

The NC press brake connects the left and right swing arms through the torsion axis to create a synchronized mechanism. This allows the oil cylinders on both sides to move up and down, which in turn makes the slider move in a synchronized way. The NC press brake has been used a lot in the metal processing industry because it's precise, stable, and cost-effective. It's also highly automated.

Bending Capabilities

Material Carbon steel, alloy steel, aluminum alloy, copper alloy, high-speed steel, carbide alloy

Length 10-6000

Width 10-1500

Thickness 0.5-20

Angle 0-180 degrees

Accuracy 0.1-0.3mm

Shapes V Shape, U Shape, Z Shape, L Shape

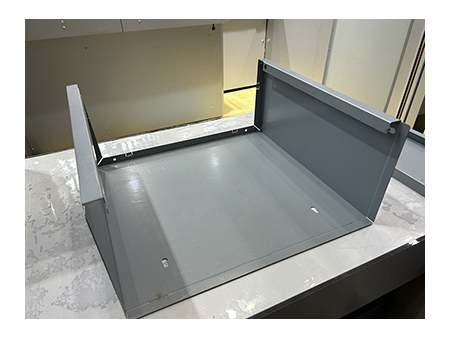

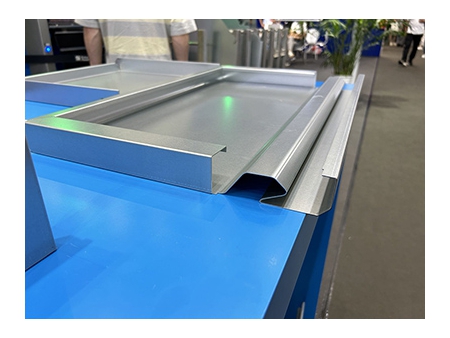

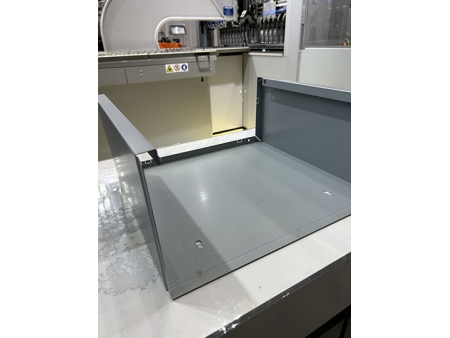

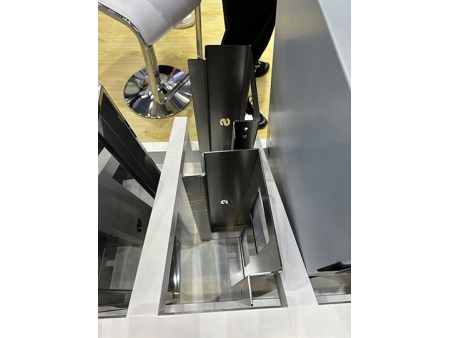

Examples of Our Processed Sheet Metal Products

Technical Parameters

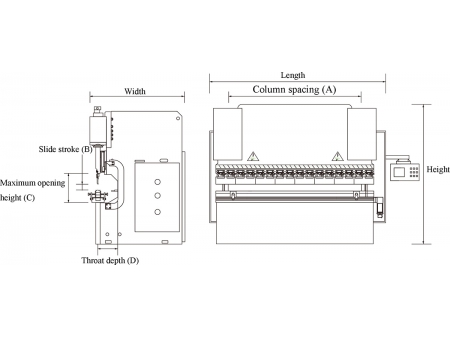

Model	Nominal Pressure (kN)	Workbench Length (mm)	Throat Depth (mm)(D)	Column Spacing (mm)(A)	Slide Stroke (mm) (B)	Max. Opening Height (mm) ©	Main Motor Power (kW)
	630	2500	280	2050	120	350	5.5
	800	2500	320	2050	120	370	7.5
	1000	2500	400	2050	120	370	7.5
	1250	2500	400	2050	140	40	7.5
	1000	3200	400	2560	120	370	7.5
	1250	3200	400	2560	140	370	7.5
	1600	3200	400	2550	180	460	11
	2000	3200	400	2500	200	470	11
	2500	3200	400	2500	250	550	18.5
	3000	3200	400	2500	250	560	22
	1000	4000	400	3160	120	370	7.5
	1250	4000	400	3150	140	370	7.5
	1600	4000	400	3150	180	460	11
	2000	4000	400	3100	200	470	11
	2500	4000	400	3100	250	550	18.5
	3000	4000	400	3100	250	560	22
	4000	4000	400	3100	300	600	30

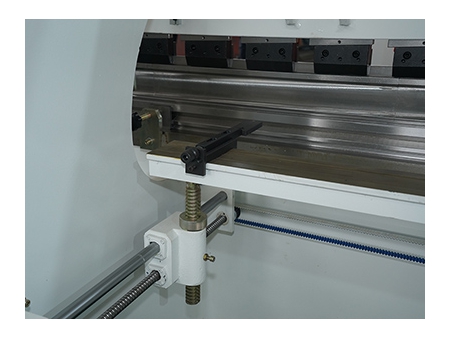

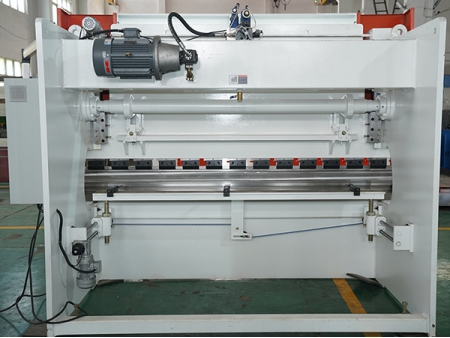

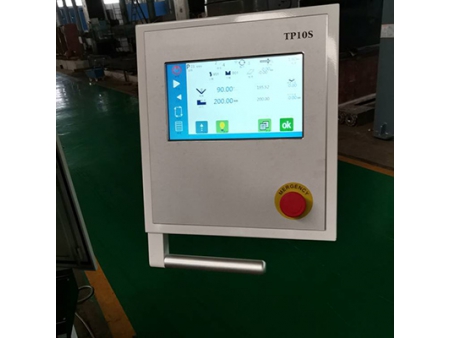

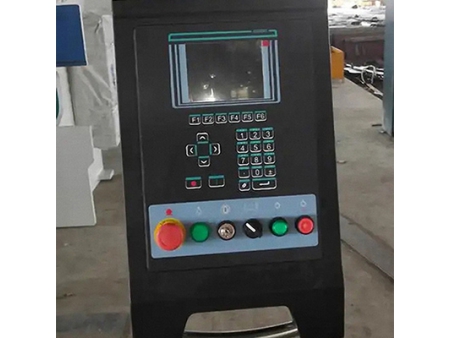

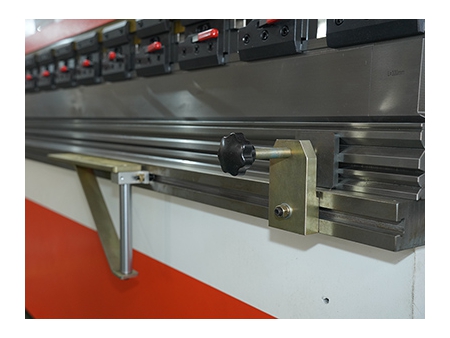

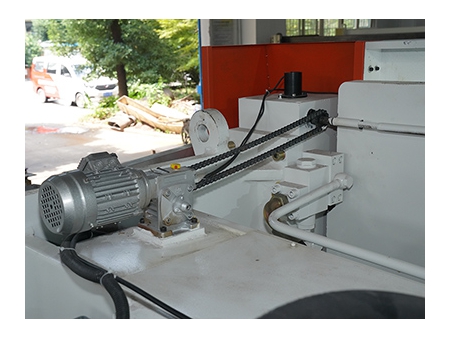

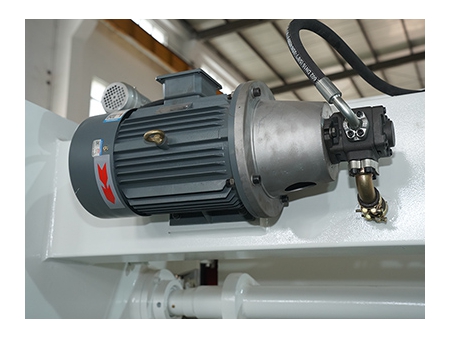

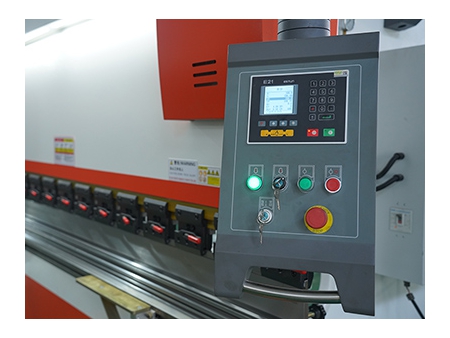

Machine Components
