Request a Quote

SSD Series

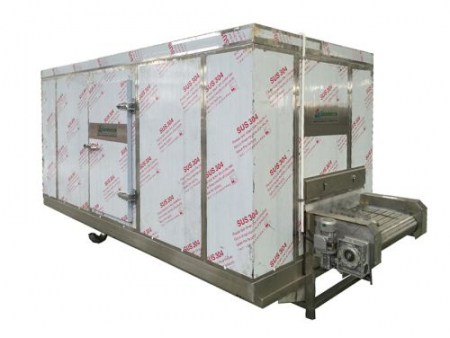

SSD series IQF tunnel freezer is a simple-structured, stable-performing, and versatile high-efficiency freezing device. Depending on the type of conveyor belt, it can be divided into SSD-W mesh belt tunnel freezer, SSD-B plate belt tunnel freezer, and SSD-C impact tunnel freezer.

Applications

SSD-W mesh belt tunnel freezer is suitable for quick freezing of seafood, poultry, pasta, vegetarian food, seasoning packs and other products.
SSD-B plate belt tunnel freezer is suitable for handling high-moisture, soft, fluid-like food products.

Samples
  • Fresh Fish
  • Frozen Fish
  • Fresh Dumpling
  • Frozen Dumpling
Walley offers three models of IQF tunnel freezers

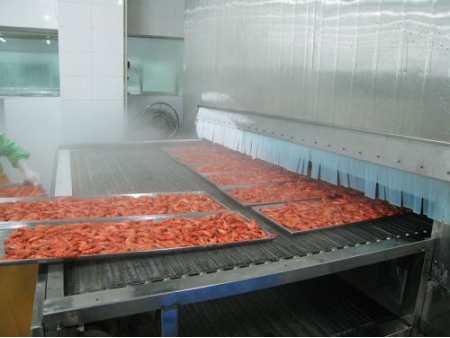

SSD-W mesh belt tunnel freezer

Recommendation Reason: mesh belt tunnel freezer is suitable for IQF, BQF, and tray quick freezing.

Specifications

Model SSD-W-300 SSD-W-500 SSD-W-750 SSD-W-1000 SSD-W-1500
Capacity (kg/h) 300 500 750 1000 1500
Dimensions (m) 9.3×3.3×2.2 10.3×3.3×2.2 12.3×3.7x2.2 15.3×3.7×2.2 18.3×4.3×2.2
Freezer length (m) 7 8 10 13 16
Input material temperature (℃) 15
Output material temperature (℃) -18
Freezing temperature (℃) -36 /-2
Freezing time (min) 5-50 (continually adjustable)
Refrigerants R717/R507a/R404a
Cold consumption (kW) 70 110 140 180 270
Power (kW) 11 12 15 22 32

Note:
1. Capacity mentioned above is based on dumplings. The capacity may vary for different materials even with the same model.
2. Working conditions: 35°C/-40°C.
3. The power excludes the compressor system.


SSD-B plate belt tunnel freezer

Recommendation Reason: The frozen surface is smooth, without any marks, making it suitable for high-quality frozen products with strict surface requirements.

Specifications

Model SSD-B-300 SSD-B-500 SSD-B-750
Capacity (kg/h) 300 500 750
Dimensions (m) 18×2.5×1.6 24×2.5×1.6 28×2.5×1.6
Freezer length (m) 13 18 22
Input material temperature (℃) 15
Output material temperature (℃) -18
Freezing temperature (℃) -36 /-2
Freezing time (min) 5-50 (continually adjustable)
Refrigerants R717/R507a/R404a
Cold consumption (kW) 70 130 185
Power (kW) 14 18 23

Note:
1. Capacity mentioned above is based on frozen naked scallop. The capacity may vary for different materials even with the same model.
2. Working conditions: 35°C/-40°C.
3. The power excludes the compressor system.


SSD-C impact tunnel freezer

Recommendation Reason: The mesh belt is designed to be exposed to air on both sides, enabling fast freezing speed.

Specifications

Model SSD-C-500 SSD-C-750 SSD-C-1000
Capacity (kg/h) 500 750 1000
Dimensions (m) 7.0×4.4×3.1 10×4.4×3.1 13×4.4×3.1
Freezer length (m) 6 9 12
Input material temperature (℃) 15
Output material temperature (℃) -18
Freezing temperature (℃) -36 /-2
Freezing time (min) 5-50 (continually adjustable)
Refrigerants R717/R507a/R404a
Cold consumption (kW) 90 140 190
Power (kW) 32 47 62

Note:
1. Capacity mentioned above is based on fish fillet. The capacity may vary for different materials even with the same model.
2. Working conditions: 35°C/-40°C.
3. The power excludes the compressor system.

Features
  • The insulation body of the freezer is made of double-sided stainless steel polyurethane sandwich panels, and the internal polyurethane is injected and foamed with a high-pressure foaming machine imported from abroad.

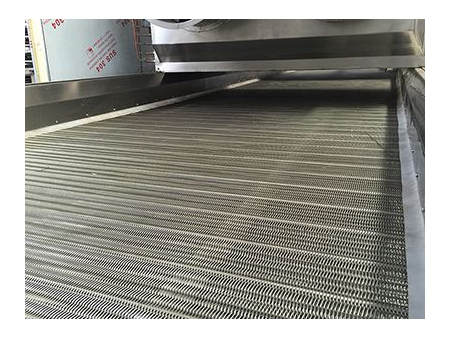

  • The conveyor mesh belt is made of 304 stainless steel spring wire, being pressed and formed. It has a smooth surface, long service life, and is equipped with a high-quality frequency converter for stepless speed regulation.

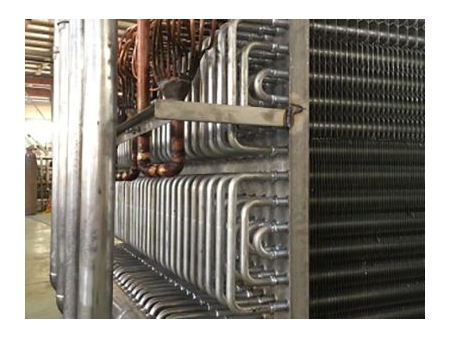

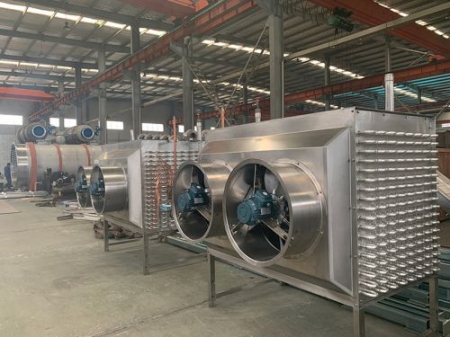

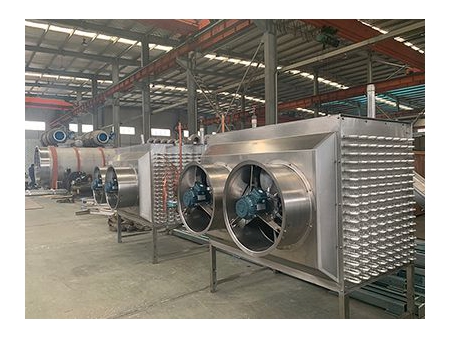

  • The evaporator adopts a three-inlet, three-outlet welding design to enhance refrigeration efficiency. The fins are designed with variable fin spacing to ensure continuous and efficient freezing.

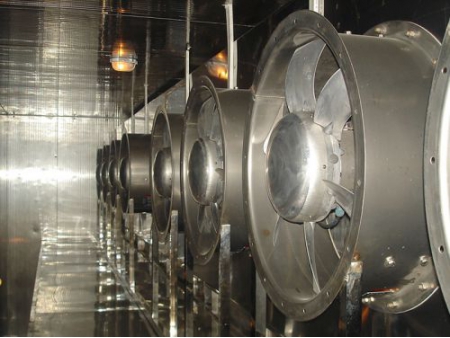

  • The ventilation system adopts axial flow fans with fully enclosed, low-temperature resistant, moisture-proof, and waterproof motors. It is efficient, energy-saving, low-noise, and operates smoothly. The motor blades are made of anti-rust aluminum alloy, and the fan casing and protective cover are made of stainless steel. The air circulation is smooth, resulting in excellent freezing effects.
