V-650 3-Axis Vertical Machining Center (Linear Guideway) 3 Axis CNC Machine
Request a Quote
The V-650 3 axis CNC machine has a workbench of 760×450mm, which can load as many as 350kg of machining items. It is suitable for fine processing and the machined product features finer tool lines on its surface. This CNC machine weighs 4200kg, with a size of 2200×2500×2650mm.
Parameters| Model | V-650 |
| Stroke | |
| X-axis travel (mm) | 600 |
| Y-axis travel (mm) | 500 |
| Z-axis travel (mm) | 550 |
| Distance from spindle nose to table center (mm) | 120-670 |
| Distance between spindle center to column (mm) | 520 |
| Worktable | |
| Worktable area (mm) | 760×450 |
| Maximum weight on table (kg) | 350 |
| T-slot quantity | 3 |
| T-slot size (mm) | 18 |
| Spindle | |
| Standard spindle speed （r.p.m） | 10000 |
| Spindle speed (non-standard) (rpm) | 12000-15000 |
| Spindle horsepower (KW) | 10(7.5) |
| Spindle taper | BT-40 |
| Feed | |
| Triaxial rapid feed (mm/min) | 48000 |
| Triaxial cutting feed (mm/min) | 1-10000 |
| Others | |
| Three-axis motor power (KW) | 2/2/3 |
| Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003/300 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 1/2 |
| Power requirement (KVA) | 20 |
| Air pressure (bar) | 6-7 |
| Machine weight (kg) | 4200 |
| Machine dimension (mm) | 2200×2500×2650 |
- Control system and motor

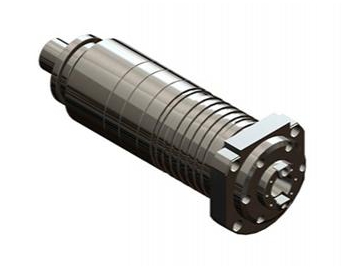

- Mechanical spindle, direct drive

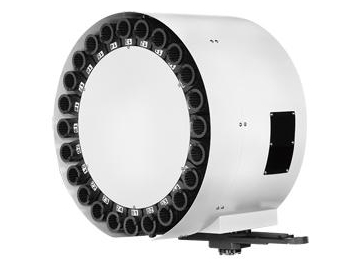

- Turntable tool storage, holding 24 tools.

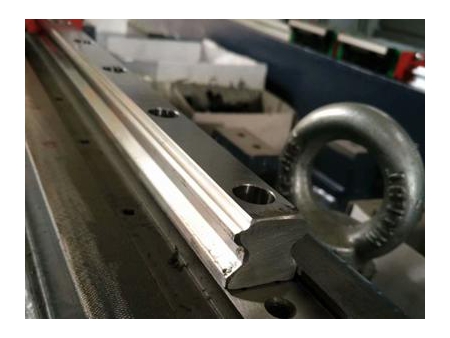

- Linear guideway runs stably and has high machining precision
