V-1370 3-Axis Vertical Machining Center (Linear Guideway) 3-Axis CNC Machine
Request a Quote
The V-1370 3 axis CNC machine is CNC machining equipment intended for the fine machining of products. Its workbench has a size of 1400×600mm, capable of holding 850kg machined items. Its positioning accuracy is ±0.005/300mm. The spindle speed is optional in 8000rpm and 12000rpm.
Parameters| Model | V-1370 |
| Stroke | |
| X-axis travel (mm) | 1300 |
| Y-axis travel (mm) | 700 |
| Z-axis travel (mm) | 700 |
| Distance from spindle nose to table center (mm) | 120-820 |
| Distance between spindle center to column (mm) | 770 |
| Worktable | |
| Worktable area (mm) | 1400×600 |
| Maximum weight on table (kg) | 850 |
| T-slot quantity | 5 |
| T-slot size (mm) | 18 |
| Spindle | |
| Standard spindle speed （r.p.m） | 8000 |
| Spindle speed (non-standard) (rpm) | 12000 |
| Spindle horsepower (KW) | 20(15) |
| Spindle taper | BT-40 |
| Feed | |
| Triaxial rapid feed (mm/min) | 24000 |
| Triaxial cutting feed (mm/min) | 1-10000 |
| Others | |
| Three-axis motor power (KW) | 3/3/4.5 |
| Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003/300 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 1/2 |
| Power requirement (KVA) | 35 |
| Air pressure (bar) | 6-7 |
| Machine weight (kg) | 9000 |
| Machine dimension (mm) | 3550×2800×3035 |
- Control system and motor
- Mechanical spindle, direct drive

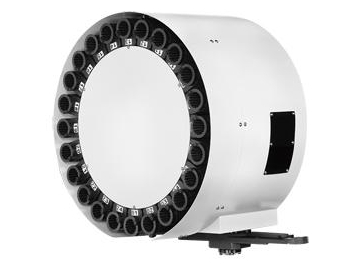

- Turntable tool storage, holding 24 tools.

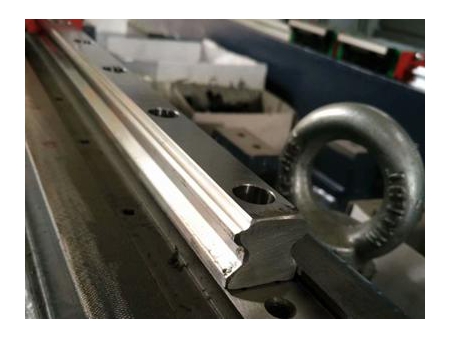

- Linear guideway runs stably and has high machining precision
