High Speed Vertical Machining Center,Series V-850 3 Axis CNC Machine
Request a Quote
The V-850 3 axis CNC machine’s travels in X, Y and Z axes are 800mm, 500mm and 500mm respectively. Its 3 axes adopt linear guideways, with a positioning accuracy of ±0.005/300mm. This machine is mainly used for finishing products. If clients choose this CNC machine, as many as 600kg materials can be loaded on the workbench for finishing.
Parameters| Model | V-850 |
| Stroke | |
| X-axis travel (mm) | 800 |
| Y-axis travel (mm) | 500 |
| Z-axis travel (mm) | 500 |
| Distance from spindle nose to table center (mm) | 90-640 |
| Distance between spindle center to column (mm) | 553 |
| Worktable | |
| Worktable area (mm) | 1000×500 |
| Maximum weight on table (kg) | 600 |
| T-slot quantity | 3 |
| T-slot size (mm) | 18 |
| Spindle | |
| Standard spindle speed （r.p.m） | 10000 |
| Spindle speed (non-standard) (rpm) | 12000-15000 |
| Spindle horsepower (KW) | 10(7.5) |
| Spindle taper | BT-40 |
| Feed | |
| Triaxial rapid feed (mm/min) | 48000 |
| Triaxial cutting feed (mm/min) | 1-10000 |
| Others | |
| Three-axis motor power (KW) | 2/2/3 |
| Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003/300 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 1/2 |
| Power requirement (KVA) | 35 |
| Air pressure (bar) | 6-7 |
| Machine weight (kg) | 5000 |
| Machine dimension (mm) | 2400×2360×2650 |
- Control system and motor

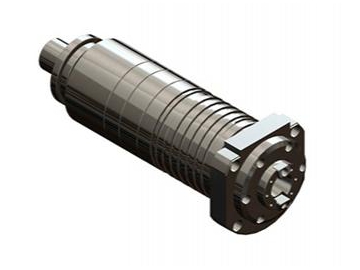

- Mechanical spindle, direct drive

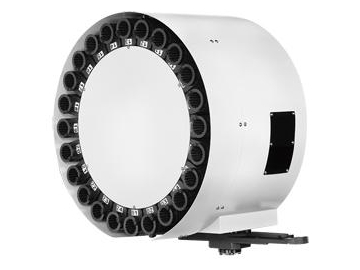

- Turntable tool storage, holding 24 tools.

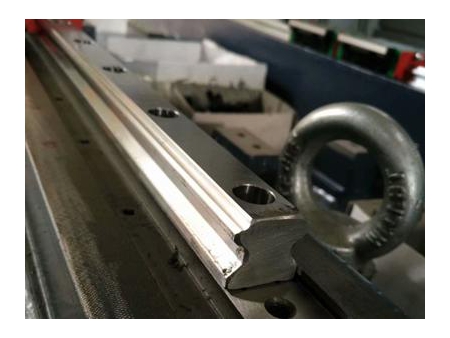

- Linear guideway runs stably and has high machining precision
