The V-1160 3 axis vertical CNC machining center’s 3 axes adopt linear guideways. It is applicable to finish machining and the surface of the finished product has finer tool lines. Its travels in X, Y and Z axes are 1100mm, 600mm and 600mm respectively. Its worktable is 1200×600mm, on which people can put as many as 800kg machined materials at one time.

Parameters
Model V-1160
Stroke
X-axis travel (mm) 1100
Y-axis travel (mm) 600
Z-axis travel (mm) 600
Distance from spindle nose to table center (mm) 120-720
Distance between spindle center to column (mm) 665
Worktable
Worktable area (mm) 1200×600
Maximum weight on table (kg) 800
T-slot quantity 5
T-slot size (mm) 18
Spindle
Standard spindle speed (r.p.m) 8000
Spindle speed (non-standard) (rpm) 12000
Spindle horsepower (KW) 15(11)
Spindle taper BT-40
Feed
Triaxial rapid feed (mm/min) 24000
Triaxial cutting feed (mm/min) 1-10000
Others
Three-axis motor power (KW) 3/3/3
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 35
Air pressure (bar) 6-7
Machine weight (kg) 7200
Machine dimension (mm) 3150×2700×2850
Components of CNC vertical machining center (3 axis linear guideway)
  • Control system and motor

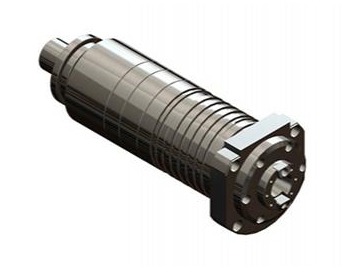

  • Mechanical spindle, direct drive

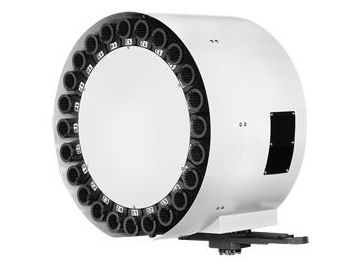

  • Turntable tool storage, holding 24 tools.

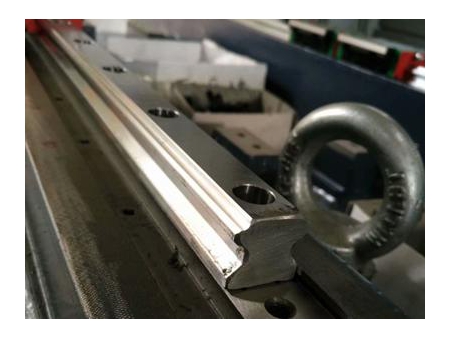

  • Linear guideway runs stably and has high machining precision
