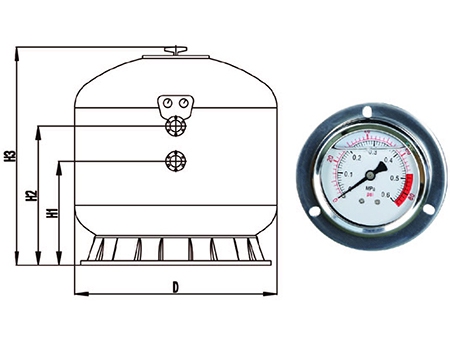

Sand Filter, Series CNC-S1400
Request a Quote
This sand filter is used to filter small particles in the pool water. The filtered water turbidity is less than 2NTU, and the filter is easy to install and repair.
With proven product quality and performance, we are confident to offer:
- Pool equipment wholesale for distributors
- Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
- OEM service for branded suppliers and manufacturers of pool equipment and supplies
- Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.
Technical data
| Model | Tank diameter | Tank height | Flow | Filter area | Connections | Required sand | Package | (NW) | (GW) | |||||||||
| mm | inches | mm | inches | m3/h | GPM | m2 | sq.ft | mm | inches | kg | lbs | mm | inches | kg | lbs | kg | lbs | |
| CNC-S1400 | 1400 | 55.1 | 1480 | 58.3 | 56 | 246 | 1.25 | 12.3 | 90 | 3〞 | 1460 | 3219 | 1350*1350*1550 | 53*53*61 | 116.2 | 256 | 130.2 | 287 |
| CNC-S1600 | 1600 | 63 | 1680 | 66.1 | 100 | 440 | 2.01 | 19.7 | 90 | 3〞 | 2180 | 4807 | 1500*1500*1750 | 59*59*69 | 131.2 | 289 | 154.3 | 340 |
| CNC-S1800 | 1800 | 70.9 | 1890 | 74.4 | 125 | 550 | 2.54 | 25 | 110 | 4〞 | 3100 | 6836 | 1950*1950*1960 | 77*77*77 | 253.5 | 559 | 298.8 | 659 |
| CNC-S2000 | 2000 | 78.7 | 2120 | 83.5 | 153 | 673 | 3.14 | 30.9 | 110 | 4〞 | 4250 | 9371 | 2150*2150*2220 | 85*85*87 | 312.2 | 688 | 357.5 | 788 |
| CNC-S2350 | 2350 | 92.5 | 2500 | 98.4 | 200 | 880 | 4.3 | 42.2 | 160 | 6〞 | 6370 | 14046 | 2500*2500*2600 | 98*98*102 | 596.4 | 1315 | 656.4 | 1447 |
| CNC-S2500 | 2500 | 98.4 | 2800 | 110.2 | 238 | 1047 | 4.88 | 47.9 | 225 | 8〞 | 9550 | 21058 | 2650*2650*2750 | 104*104*108 | 710.3 | 1566 | 770.3 | 1699 |
