GH018-F Automatic High Speed Spool Sewing Thread Winding Machine
GH018-F Automatic High Speed Spool Sewing Thread Winding Machine
- King spools
for sewing threads / final make-up
- Tuck- inTuck- in
tuck with the yarn tail in the thread
- STSewing yarn
Sewing yarns are especially made to pass rapidly through a sewing machine. They are a fine cord of a fibrous material, which are made of two or more filaments twisted together. The yarns form efficient stitches without breaking or becoming distorted.
- Spun yarnStaple spun yarn
Textile yarn spun twisted from staple length fiber, either natural or synthetic.
- COCotton
Natural fibre from the cotton plant which is spun into fine yarn.
- PET / PESPolyester
Synthetic fiber made from a thermoplastic polymer that contains the ester functional group in their main chain. Most commonly refers to a type called polyethylene terephthalate (PET) or polyethylene succinate (PES) with a melting point from 103 - 106°C.
- CVViscose
Viscose, formerly known as viscose rayon, is made by treating cellulose with caustic alkali solution and carbon disulphide. It is a soft fibre commonly used in dresses, linings, shirts, shorts, coats, jackets, and other outerwear.
- TYTechnical Yarns
The yarns are used for technical textile products, which are manufactured for non-aesthetic purposes. The function such as rigidity, strength, dimension stability, design flexibility and economic viability is main feature.
GH018-F fully automatic high speed spool sewing thread winding machine is used for winding embroidery threads into 2 inches tubes. The yarn winding machine adopts automatic bobbin feeding and winding system, a computer controlled automatic yarn length counter, frequency control, a slotted spool yarn guide device, and a pump-based cycling-type oiling device. All devices above enable the machine to have functions of good shape formation, high efficiency, easy operation, assured safety and reliability, and broad applicability.
| Model | GH018-F auto |
| Take-up tube | Cylindrical tube |
| Spindle number | 4 |
| Drive | Individual motor per spindle |
| Control | Computer controlled |
| Traverse length | 2” |
| Spindle speed | 9000rpm |
| Mechanical speed | 200~1000 m/min |
| Weight | 500kg |
| Installed power | 1.2kW |
| Air pressure | 2 KGS |
| Power supply | 220V (single phase) or 380 V (three phases), 1.2kW |
| Frequency | 50/60Hz |
| Compressed air | 0.2MPa |
| Dimension | 2208×812×1619mm |

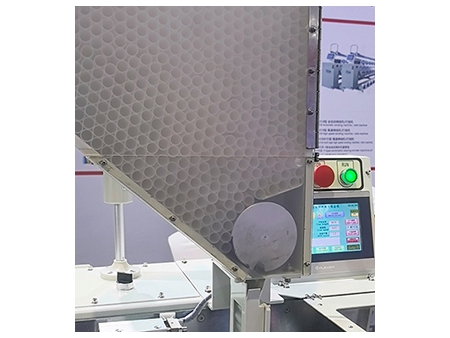

- Automatic bobbin feeding and automatic winding system offer high automation.
- Automatic bobbin feeding and no bobbin auto-stop
- Non-contact broken yarn detector is sensitive.
- Automatic bobbin changing is fast and stable, greatly reducing labor cost.
- Computer-based yarn length automatic measuring system comes with an accuracy of ±0.5%.
- Automatic control of winding linear speed is flexibly set within 100-1000 m/min.
- Grooved drum yarn guide system offers fast speed and low noise.
- Grooved drum is manufactured with special material and is polished, being smooth and wear-resistant and having no damage to the yarn.
- Pump-based cycling-type oiling device allows for the setting of oil wheel speed ratio, ensuring uniform oiling combined with the constant linear speed. Each oil wheel is configured with a filter to prevent oil spray and oil waste.
- High productivity: each machine offers an output of 5 kg yarns per hour, and the daily output is up to 110kg based on 22 working hours. The efficiency is 5-6 times higher than that of traditional winding machines.
