Roof Evaporative Air Cooler Manufacturer

Roof Evaporative Air Cooler

Request a Quote

View All: http://evaporation-cooler.com/1-3-roof-evaporative-air-cooler.html

Mounted on the roof, these evaporative air coolers mitigate the heat by moving the cooled air through ceiling and walls into your living or work spaces. With the circulation of cooled air within the rooms, the roof-mounted evaporative coolers can achieve effects of excellent cooling, air purification and natural humidification.

Product volume: 2.10m³-9.244m³

Weight: 113kg-827kg

Air flow: 23000m³/h-60000m³/h

Power: 2200W-22000W

Cooling area

Applications

The roof evaporative coolers are built for cooling air in many fields, such as gyms, yoga studios, libraries, hospitals, workshops, internet cafes, classrooms, conference rooms, indoor farms, supermarkets, shopping centers, restaurants, workplace canteens, warehouses, etc.

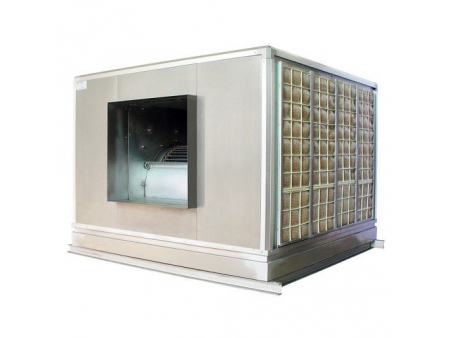

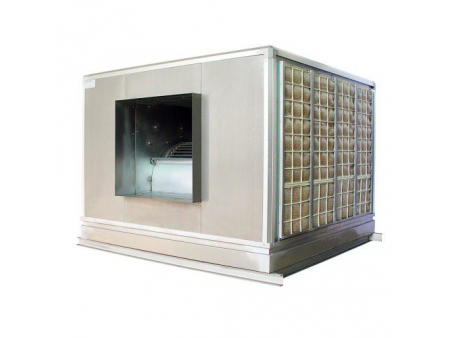

Ducted Evaporative Cooler, 20000m³/h, 71-160m²

Model: LC-25

Max. air flow: 20000m³/h

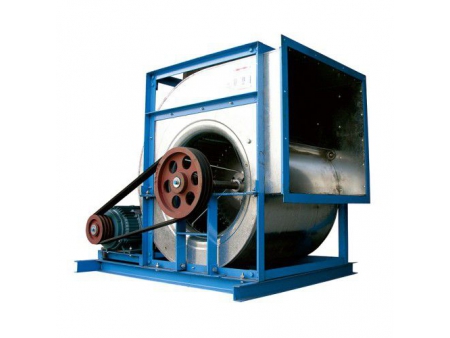

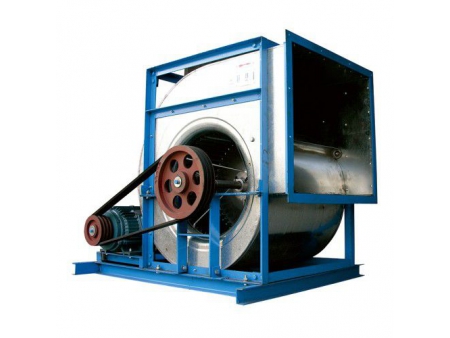

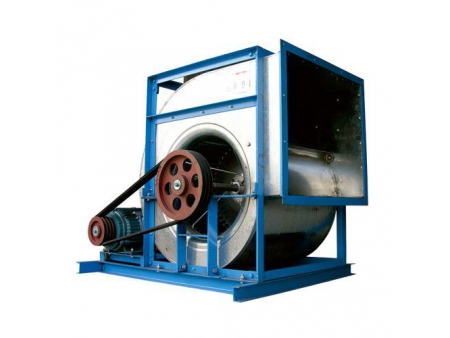

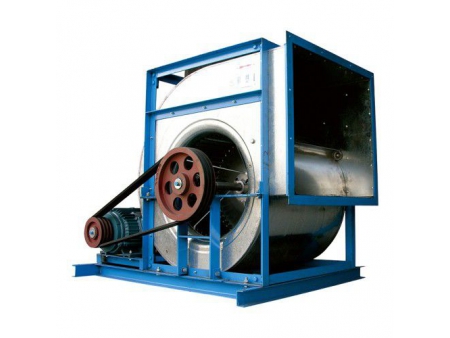

Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 5.5kW
Operating current: 11.6A
Water tank capacity: 85L
Overall size: 1582×1442×1168mm
Air outlet size: 550×500mm
Net weight: 206kg
Cooling area: 71-160m²
Fan speed: 1
Control mode: mechanical control (class S)

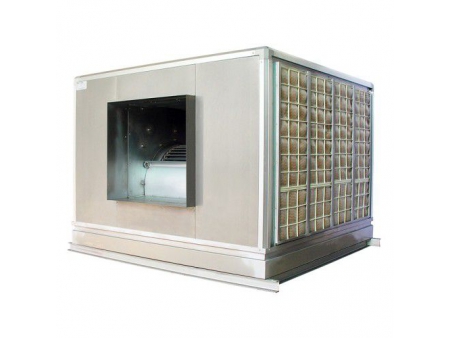

Ducted Evaporative Cooler, 20000m³/h, 71-160m²

Model: LS-25

Max. air flow: 20000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 5.5kW
Operating current: 11.6A
Water tank capacity: 85L
Overall size: 1869×1729×1168mm
Air outlet size: 550×500mm
Net weight: 273kg
Cooling area: 71-160m²
Fan speed: 1
Control mode: mechanical control (class S)

Ducted Evaporative Cooler, 20000m³/h, 71-160m²

Model: LC/BP-25

Max. air flow: 20000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 5.5kW
Operating current: 11.6A
Water tank capacity: 85L
Overall size: 1582×1442×1168mm
Air outlet size: 550×500mm
Net weight: 206kg
Cooling area: 71-160m²
Fan speed: stepless speed regulation

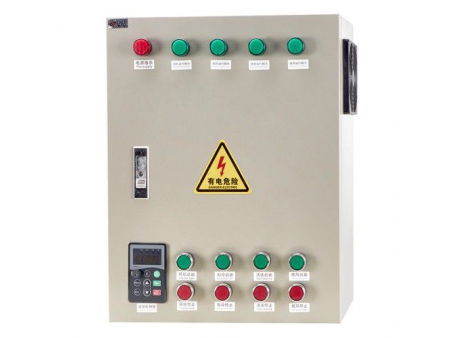

Control mode: stepless speed control box

Ducted Evaporative Cooler, 20000m³/h, 71-160m²

Model: LS/BP-25

Max. air flow: 20000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 5.5kW
Operating current: 11.6A
Water tank capacity: 85L
Overall size: 1869×1729×1168mm
Air outlet size: 550×500mm
Net weight: 273kg
Cooling area: 71-160m²
Fan speed: stepless speed regulation
Control mode: stepless speed control box

Ducted Evaporative Cooler, 25000m³/h, 87-198m²

Model: LC-30

Max. air flow: 25000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 7.5kW
Operating current: 15.4A
Water tank capacity: 92L
Overall size: 1685×1545×1289mm
Air outlet size: 620×600mm
Net weight: 350kg
Cooling area: 87-198m²
Fan speed: 1
Control mode: mechanical control (class S)

Ducted Evaporative Cooler, 25000m³/h, 87-198m²

Model: LS-30

Max. air flow: 25000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 7.5kW
Operating current: 15.4A
Water tank capacity: 92L
Overall size: 1989×1849×1289mm
Air outlet size: 620×600mm
Net weight: 405kg
Cooling area: 87-198m²
Fan speed: 1
Control mode: mechanical control (class S)

Ducted Evaporative Cooler, 25000m³/h, 87-198m²

Model: LC/BP-30

Max. air flow: 25000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 7.5kW
Operating current: 15.4A
Water tank capacity: 92L
Overall size: 1685×1545×1289mm
Air outlet size: 620×600mm
Net weight: 350kg
Cooling area: 87-198m²
Fan speed: stepless speed regulation
Control mode: stepless speed control box

Ducted Evaporative Cooler, 25000m³/h, 87-198m²

Model: LS/BP-30

Max. air flow: 25000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 7.5kW
Operating current: 15.4A
Water tank capacity: 92L
Overall size: 1989×1849×1289mm
Air outlet size: 620×600mm
Net weight: 405kg
Cooling area: 87-198m²
Fan speed: stepless speed regulation
Control mode: stepless speed control box

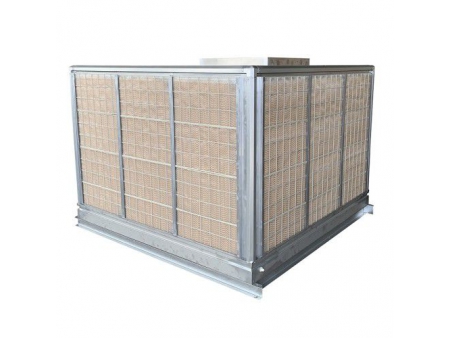

Roof Top Evaporative Cooler, 120-180m², 23000m³/h

Model: LX-23

Max. air flow: 23000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 2.2kW
Operating current: 5.7A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 545×342mm
Noise: ≤83dB
Net weight: 190kg
Cooling area: 120-180m²
Fan speed: 1
Control mode: mechanical control (class S)

Roof Mount Evaporative Cooler, 120-180m², 23000m³/h

Model: LC-23

Max. air flow: 23000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 2.2kW
Operating current: 5.7A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 545×430mm
Noise: ≤83dB
Net weight: 198kg
Cooling area: 120-180m²
Fan speed: 1
Control mode: mechanical control (class S)

Roof Mount Ducted Evaporative Cooler, 120-180m², 23000m³/h

Model: LS-23

Max. air flow: 23000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 2.2kW
Operating current: 5.7A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 545×430mm
Noise: ≤83dB
Net weight: 198kg
Cooling area: 120-180m²
Fan speed: 1
Control mode: mechanical control (class S)

Roof Top Evaporative Cooler, 120-180m², 23000m³/h

Model: LX/BP-23

Max. air flow: 23000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 2.2kW
Operating current: 5.7A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 545×342mm
Noise: ≤83dB
Net weight: 190kg
Cooling area: 120-180m²
Fan speed: stepless speed regulation

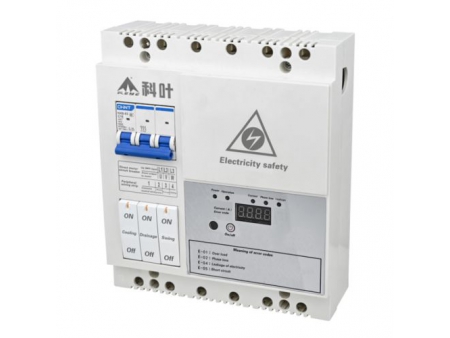

Control mode: control box

Roof Top Evaporative Cooler, 120-180m², 23000m³/h

Model: LC/BP-23

Max. air flow: 23000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 2.2kW
Operating current: 5.7A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 545×430mm
Noise: ≤83dB
Net weight: 198kg
Cooling area: 120-180m²
Fan speed: stepless speed regulation
Control mode: control box

Roof Mount Ducted Evaporative Cooler, 120-180m², 23000m³/h

Model: LS/BP-23

Max. air flow: 23000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 2.2kW
Operating current: 5.7A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 545×430mm
Noise: ≤83dB
Net weight: 198kg
Cooling area: 120-180m²
Fan speed: stepless speed regulation
Control mode: control box

Roof Top Evaporative Cooler, 120-200m², 30000m³/h

Model: ZX/A-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 113kg
Cooling area: 120-200m²
Fan speed: 1
Control mode: mechanical control (class A)

Roof Mounted Evaporative Cooler, 120-200m², 30000m³/h

Model: ZS/A-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 121kg
Cooling area: 120-200m²
Fan speed: 1
Control mode: mechanical control (class A)

Roof Evaporative Cooler, 120-200m², 30000m³/h

Model: ZX/S-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 113kg
Cooling area: 120-200m²
Fan speed: 1
Control mode: mechanical control (class S)

Rooftop Evaporative Cooler, 120-200m², 30000m³/h

Model: ZS/S-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 121kg
Cooling area: 120-200m²
Fan speed: 1
Control mode: mechanical control (class S)

Rooftop Evaporative Cooler, 120-200m², 30000m³/h

Model: ZX-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 113kg
Cooling area: 120-200m²
Fan speed: 1
Control mode: LCD control panel (single speed)

Roof Evaporative Cooler, 120-200m², 30000m³/h

Model: ZS-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 121kg
Cooling area: 120-200m²
Fan speed: 1
Control mode: LCD control panel (single speed)

Roof Evaporative Cooler, 120-200m², 30000m³/h

Model: ZX/BP-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 113kg
Cooling area: 120-200m²
Fan speed: stepless speed regulation
Control mode: control box

Roof Mount Evaporative Cooler, 120-200m², 30000m³/h

Model: ZS/BP-30

Max. air flow: 30000m³/h
Fan type: axial flow
Voltage/Frequency: 380V/50Hz
Power: 3.2kW
Operating current: 7.0A
Water tank capacity: 60L
Overall size: 1330×1330×1190mm
Air outlet size: 900×900mm
Noise: ≤83dB
Net weight: 121kg
Cooling area: 120-200m²
Fan speed: stepless speed regulation
Control mode: control box

Ducted Evaporative Cooler, 30000m³/h, 113-263m²

Model: LC-35

Max. air flow: 30000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 11kW
Operating current: 22A
Water tank capacity: 103L
Overall size: 1838×1698×1324mm
Air outlet size: 700×650mm
Net weight: 410kg
Cooling area: 113-263m²
Fan speed: 1
Control mode: single speed control box

Ducted Evaporative Cooler, 30000m³/h, 113-263m²

Model: LS-35

Max. air flow: 30000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 11kW
Operating current: 22A
Water tank capacity: 103L
Overall size: 2090×1950×1292mm
Air outlet size: 700×650mm
Net weight: 460kg
Cooling area: 113-263m²
Fan speed: 1
Control mode: single speed control box

Ducted Evaporative Cooler, 30000m³/h, 113-263m²

Model: LC/BP-35

Max. air flow: 30000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 11kW
Operating current: 22A
Water tank capacity: 103L
Overall size: 1838×1698×1324mm
Air outlet size: 700×650mm
Net weight: 410kg
Cooling area: 113-263m²
Fan speed: stepless speed regulation
Control mode: stepless speed control box

Ducted Evaporative Cooler, 30000m³/h, 113-263m²

Model: LS/BP-35

Max. air flow: 30000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 11kW
Operating current: 22A
Water tank capacity: 103L
Overall size: 2090×1950×1292mm
Air outlet size: 700×650mm
Net weight: 460kg
Cooling area: 113-263m²
Fan speed: stepless speed regulation
Control mode: stepless speed control box

Ducted Evaporative Cooler, 35000m³/h, 179-332m²

Model: LC-45

Max. air flow: 35000m³/h
Fan type: centrifugal
Voltage/Frequency: 380V/50Hz
Power: 15kW
Operating current: 29A
Water tank capacity: 106L
Overall size: 1888×1748×1414mm
Air outlet size: 780×750mm
Net weight: 510kg
Cooling area: 179-332m²
Fan speed: 1
Control mode: single speed control box
