Evaporative Condenser
Request a Quote
Evaporative Cooling System
- Refrigerant R717, R22, R507
- Design Condensing Temperature 35℃
- Heat Exchange Capacity 240kW-12800kW (depending on site conditions)
- Circulating Water Flow Rate 40-1600m³/h
- Make-up Water Flow Rate 0.2-39.1m³/h
The evaporative condenser is designed for use in refrigeration and air conditioning systems, primarily for the condensation and liquefaction of refrigerants. This evaporative cooling system integrates essential components such as a water tank, heat exchange coils, water pump, axial fan, and circulation pipelines, offering a more compact and simplified alternative to traditional cooling tower systems. Its design ensures ease of installation, operation, and maintenance.
Technical Parameters
| Model | Heat Exchange Capacity (kW) | Axial Flow Fan | Weight (kg) | Circulating Water Pump | Make-up Water Flow Rate (m³/h) | ||||||||
| Power (kW) | Rated Current (A) | Quantity | Total Air Rate 104(m/h) | Transportation Weight | Opearation Weight | Weight of The Heaviest Part | Power (kW) | Rated Current A | Quantity | Circulating Water Flow Rate (m³/h) | |||
| | 240 | 0.75 | 24 | 2 | 24 | 2055 | 2784 | 1449 | 1.1 | 2.7 | 1 | 40 | 0.20-0.73 |
| | 350 | 1.5 | 4.4 | 2 | 3.5 | 2327 | 3177 | 1651 | 1.5 | 3.5 | 1 | 50 | 0.30-1.06 |
| | 480 | 3 | 7.1 | 1 | 4.8 | 3491 | 4619 | 2535 | 1.5 | 3.5 | 1 | 75 | 0.39-1.37 |
| | 600 | 4 | 12.5 | 1 | 6.0 | 3885 | 4934 | 2874 | 1.5 | 3.5 | 1 | 75 | 0.52-1.83 |
| | 800 | 2.2 | 6.7 | 2 | 8 | 5017 | 6198 | 3522 | 2.2 | 4.9 | 1 | 100 | 0.64-2.29 |
| | 900 | 3 | 7.1 | 2 | 9 | 5874 | 7052 | 4133 | 4 | 8.7 | 1 | 120 | 0.77-2.74 |
| | 1000 | 3 | 9.7 | 2 | 10 | 6277 | 7865 | 4394 | 4 | 8.7 | 1 | 160 | 0.86-3.05 |
| | 1200 | 4 | 12.5 | 2 | 12 | 6690 | 8518 | 4933 | 4 | 8.7 | 1 | 160 | 1.02-3.65 |
| | 1400 | 11 | 36.2 | 1 | 14 | 7388 | 9044 | 5400 | 5.5 | 11.6 | 1 | 195 | 1.16-4.20 |
| | 1600 | 5.5 | 16.7 | 2 | 16 | 8958 | 10911 | 6793 | 5.5 | 11.6 | 1 | 195 | 1.27-4.56 |
| | 1800 | 5.5 | 17.9 | 2 | 18 | 10098 | 12306 | 7595 | 7.5 | 15.5 | 1 | 260 | 1.54-5.48 |
| | 2000 | 7.5 | 24.3 | 2 | 20 | 11205 | 13658 | 8347 | 7.5 | 15.5 | 1 | 260 | 1.70-6.08 |
| | 2400 | 7.5 | 24.3 | 2 | 24 | 13168 | 15677 | 10077 | 11 | 22.4 | 1 | 310 | 2.02-7.33 |
| | 2800 | 11 | 36.2 | 2 | 28 | 14597 | 17341 | 11279 | 15 | 29.2 | 1 | 360 | 2.36-8.55 |
| | 3200 | 15 | 36.7 | 2 | 32 | 16668 | 19765 | 13088 | 15 | 29.2 | 1 | 366 | 2.68-9.75 |
| Notes 1. The parameters in the above table are for reference only, and the actual parameters are based on the final drawings. 2. For other models (LNZ3600 - LNZ12800), please contact us for more information. | |||||||||||||
Features
- Full-coil heat exchange design eliminates the need for additional packing material, reducing operational and maintenance costs.

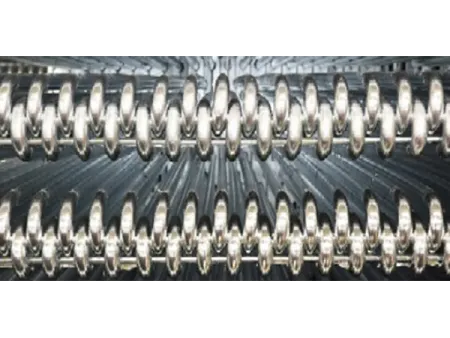

- Patented droplet-shaped coil design increases the heat exchange area and extends the condensor's lifespan.
- Axial fans and water pumps from renowned brands, with optional variable frequency control for enhanced energy efficiency.

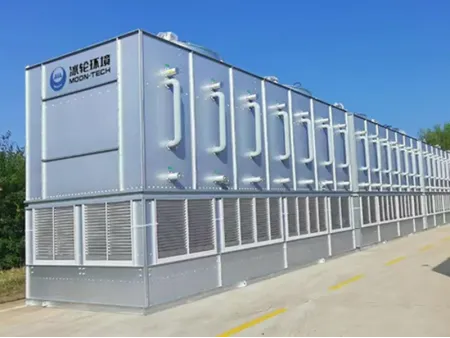

On-Site Photos
