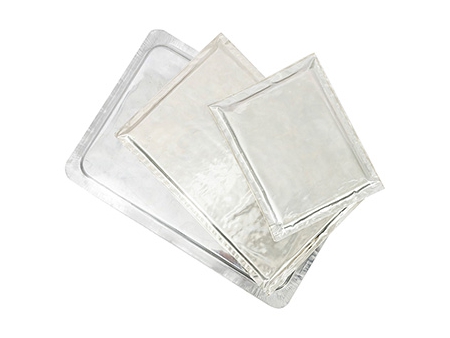

Wide Temperature Range Vacuum Insulation Panel (VIP)
Unmatched Insulation Performance Across Extreme Temperatures Designed to run consistently over a -196°C to 800°C extreme temperature range, the Wide Temperature Range VIP is an innovative thermal insulating solution. Whether your environment requires the highest degrees of insulation performance or steady-state high temperatures or non- steady-state thermal situations this VIP provides outstanding thermal protection.

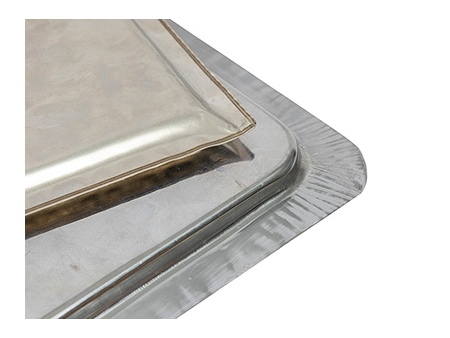

Ensuring excellent heat resistance and durability, this novel product—also known as Metal Vacuum Insulation Panel (M-VIP)—uses premium materials such aluminum foil or stainless steel foil for the membrane and basalt fiber or high-silica materials for the core. Offers a more dependable and energy-efficient replacement for conventional insulation materials including silica cotton, aerogel, fiberglass matting, PIR, and PUR,.
This VIP shines in applications needing great thermal stability and tolerance to harsh temperatures with its distinctive design. From industrial machinery to aeronautical and high-temperature appliances, Wide Temperature Range VIP guarantees that your systems run at maximum efficiency and reduce heat loss.
What the Features of Wide Temperature Range VIP
- Performs efficiently in temperatures ranging from -196°C to 800°C.
- Uses high-performance aluminum or stainless steel foil as a barrier and basalt fiber or high-silica core for optimal insulation.
- Ideal for replacing non-vacuum insulation materials like aerogel, PIR, and PUR.
- Provides reliable insulation in both steady-state and non-steady-state high-temperature environments.
Comparison of Specifications
| Thermal conductivity (W/m·K) | Body density (kg/m³) | Areal density (kg/m²) | Recommended operating temperature (℃) | Compressive strength (< 10%) (MPa) | Leak Rate (Pa.m³/s) | Standard size (mm) |

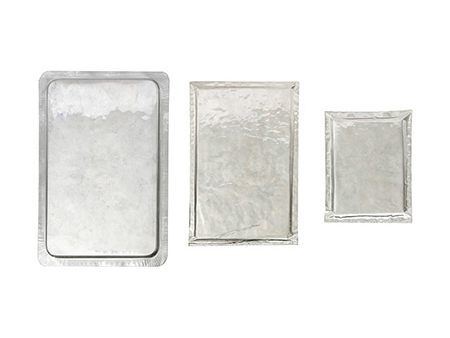

| ≤0.0020 | 250-420 | 2-5 | -196-600 | ≤0.5 | < 10⁻¹⁰ | Max: 500×1000, Min:100×100, Thickness: 3-20 |
We're Here for You!
If you have any inquiries or would like to learn more, feel free to . We're eager to assist you!
Application Examples

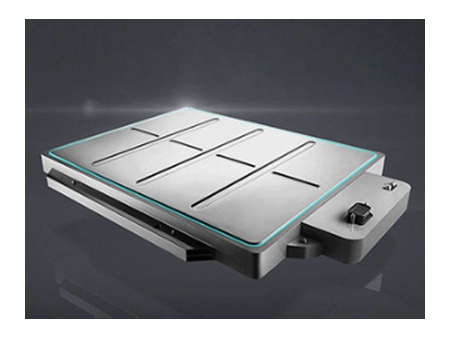

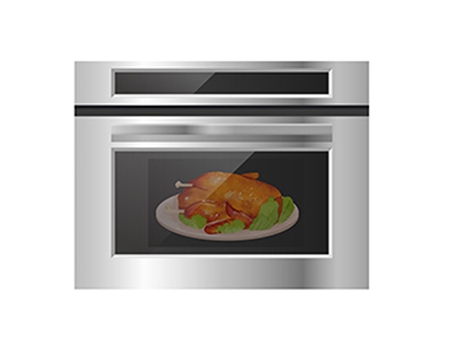

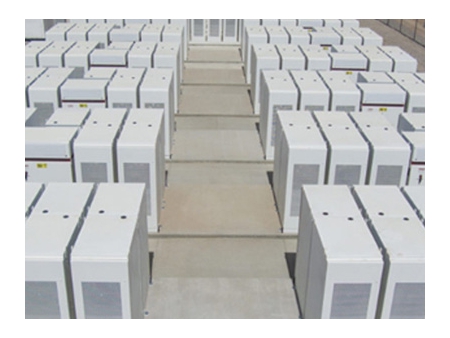

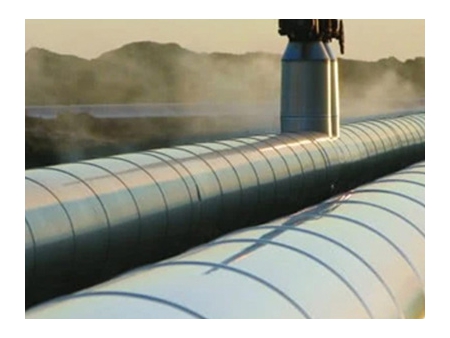

Electric vehicle batteryEnergy storage and insulationAerospace engineeringLNG pipeline insulationHigh temperature appliances
