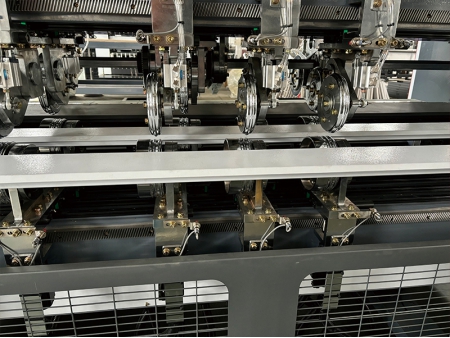

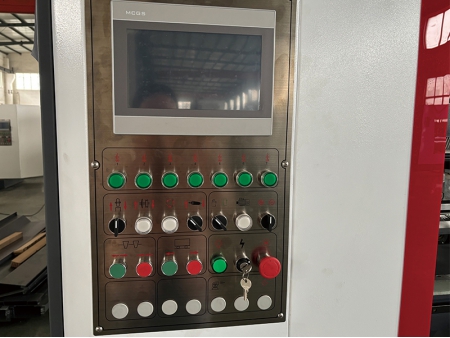

Slitter Scorer Machine, Electrical Control, 80m /min, SMBD-DDJY

Slitter Scorer Machine, Electrical Control, 80m /min, SMBD-DDJY
Request a Quote

Corrugated Board Manufacturing

Features

  • Electric adjustment of slitting blade distance, automatic tool locking, double guiding shafts, double locking oil cylinder, stable operation and easy adjustment;
  • Tungsten alloy blade is featured by great sharpness, long service life, clean slitting edge, intact and free of burrs;
  • Five-point scoring enables scored line to be easily folded without breaking;
  • Electric control of transverse movement, with moving range of 200mm;
  • Two pneumatic sharpening methods of automatic and manual sharpening are adopted. Sharpening while working is supported to improve work efficiency;
  • Polyurethane rubber is installed in the inner knife holder to prevent dust and reduce failure rate;
  • Paper feeding from two rollers and then scoring, easily adjusted, only slitting under the circumstance of not scoring, thus avoiding to make errors;
  • The lower scoring wheel is the driving wheel powered by six rows of shaft while the paper is smooth. The upper and lower scoring wheel can be slightly adjusted in a timing manner;
  • HRB bearing ensures the long time running of the machine.

Specifications

Model 1600 1800 2200
Effective width 1650mm(64.96") 1850mm(72.83") 2250(88.58")
Min. slitting 120mm(4.72")
Min. scoring distance 30mm(1.18")
Slitting blade size 200*122*1.3mm(7.87*4.8*0.05")
Scoring wheel size Upper 152mm, lower 152mm(5.98")
Guiding range ±100mm(3.94")
Slitting/scoring 4/6 5/8 6/10
Power 4kW 5.5kW 7.5kW
Scoring depth 0-12mm(0-0.47")
Speed (m/min) 80m(3149.61")/min
