Metal 17mm 4K Rotary Carbon Film Potentiometer, RV17-20/13
Request a Quote
Part Number
RV17-20/13
Parameters
| Diameters | 17mm |
| Total rotational angle | 260°±10° |
| Rotational torque | 50~300gf.cm |
| Stopper strength | ≥4kgf |
| Number of resistor elements | |
| Total resistance | 500Ω-1MΩ |
| Resistance tolerance | ±10% |
| Shaft Types | knurled shaft |
| Element | carbon film |
| Rated power | ≤0.05W |
| Voltage proof | 500V AC for 1 minute |
| Operating life | ≥10000cycles |

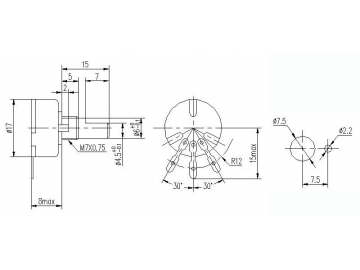

Dimensions
