Vertical Form Fill Seal Machine with Volumetric Cup Filler, SK-L360-A

Vertical Form Fill Seal Machine with Volumetric Cup Filler, SK-L360-A
Request a Quote
  • Soonk's SK-L360-A VFFS machine with a volumetric cup filler is widely used in the packaging of pillow bags for puffed food, granular products and bulk goods, including chips, nuts, seeds, rice, fruit pieces, cookies, salt, tea, snacks, popcorns and more.
Packaging machine
  • The photo eye control mechanism and stepper-motor-driven film drawing system with a frequency control achieve high stability, low noise and low failure rate.

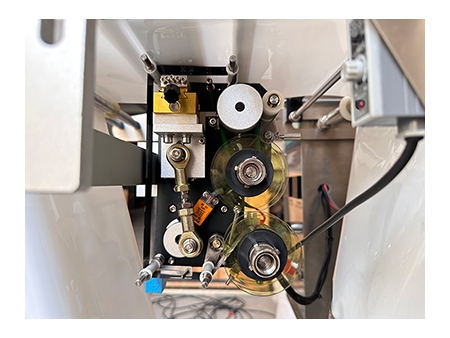

  • Automatic production line from product measurement, bag filling, data printing to packaged bag discharge, ensuring maximum packaging efficiency.
  • Reasonable machine design, robust structure, compact footprint and reliable performance.

Volumetric cup filler

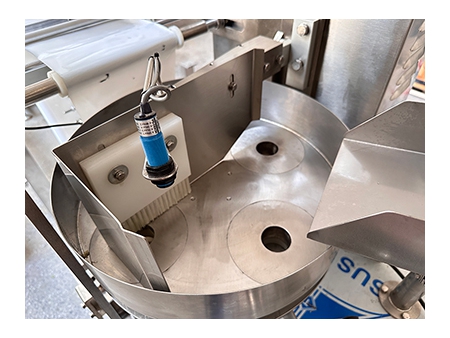

  • 4 sets of adjustable volumetric cups are equipped. The cup volume is adjusted by tightening or loosening the screws beneath the turntable. It is suitable for free-flowing granular items such as cereals, nuts, pet food, snacks and more.
  • Fixed or mobile brushes are equipped to prevent filling materials breaking.
Specifications
Model SK-L360-A
Filling capacity 50-600ml
Bag width range 50-170mm
Bag length range 50-250mm
Speed 30-80bags/min
Material type various film laminates
Bag format pillow bag
Machine Dimensions (L)1100X(W)700X(H)1900mm
Machine weight 380kg
Packaged wood cases 1 case/2-3 m³

If you need more information about the VFFS machine with volumetric cup filler, please feel free to contact us!
