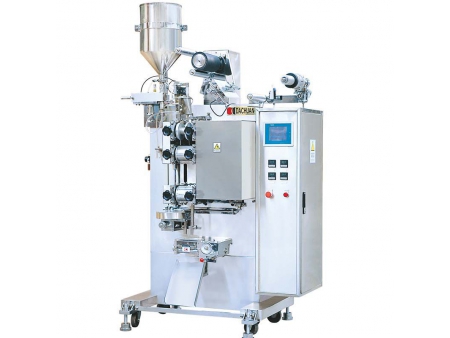

Vertical Form Fill Seal Machine with Volumetric Cup Filler, SK-L3B320QD-A
Request a Quote
- SK-L3B320QD-A packaging line is made up of aVFFS machine and a volumetric cup filler, which can be widely used in the auto packaging of incompact and non-sticky granules in operations such as food, medicine, and chemical production. Some product examples include soup base, desiccant, sugar, cereals, monosodium glutamate, salt, etc.
- Suitable for tetrahedron bags.
Packaging machine
- Ribbon printing mechanism.
- Cutting mechanism for the fixed length of each bag.
- Vacuum auto feeding system.
- On-line digital weight measurement and adjustment.
Volumetric cup filler
- 4 sets of adjustable volumetric cups are equipped. The volume of the cup is adjusted by tightening or loosening the screw beneath the turntable. Suitable for free-flowing granular items such as cereals, nuts, pet food, snacks and etc.
- Fixed or mobile brushes are equipped to prevent filling materials breaking.
Specifications
| Model | SK-L3B320QD-A |
| Filling capacity | 30-150g |
| Bag width range | 50-140mm |
| Bag length range | 50-200mm |
| Speed | 15-65bags/min |
| Material type | various film laminates |
| Bag format | 3-side seal bag |
| Machine Dimensions | (L)1000*(W)910*(H)1620mm |
| Machine weight | 350kg |
| Packaged wood cases | 1 case/2 m³ |
If you need more information, please feel free to contact us!
