Application
The crimp force of YONG-FENG Y550 Siemens PLC Digital hydraulic hose crimping machine is 8000kN, with a crimp range of 50~410mm. YONG-FENG Y550 crimpers are widely used for crimping large high-pressure fuel pipes, industrial hoses, large water hoses, automobile air bags and wire ropes etc.

Max. inner diameter
Hydraulic hose up to 12"
Industrial hose up to 12"

Specification
Crimp head material Forge steel
Crimp range 2-12"
Hose size 12"
Passing diameter 560mm
Opening diameter 560mm
Opening 140mm
System pressure 31.5MPa
Crimp force 8000kN
Drive 15kW
Standard voltage Customized
Control Siemens PLC digital touch screen

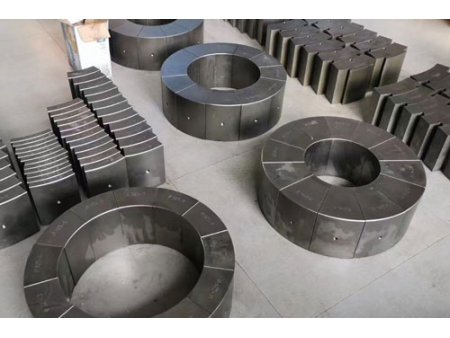

Standard dies Customized
Weight 8500kg(Crimping Unit)/660kg(Hydraulic power Unit)
L x W x H 2230*1490*1690mm/850*810*1220mm

Details

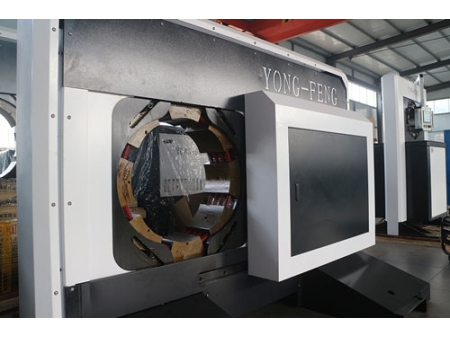

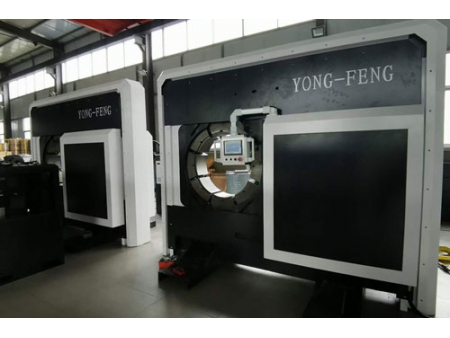

YONG-FENG Y550 hose crimping machine features stable structure, unique appearance design and Siemens PLC touch screen system. It is particularly manufactured by hydraulic technology and production process developed by YONG-FENG to crimp industrial hoses that are 2 to 12 inch. We provide custom-tailored services to produce crimping machines that are suitable for different hose dimensions. Using our crimping machines, you will find that a hose is securely attached to a crimp flange or other hose fittings.
