YONG-FENG Y630 Hose/Pipe Crimping Machine
Application
The crimp force of YONG-FENG Y630 Siemens PLC Digital hydraulic hose crimping machine is 12000KN, with a crimp range of 50~640mm. YONG-FENG Y630 crimpers are widely used for crimping large high-pressure fuel pipes, industrial hoses, large water hoses, automobile air bags and wire ropes etc.
Max. inner diameter
Hydraulic hose up to 24"
Industrial hose up to 24"
| Crimp head material | Forge steel |
| Crimp range | 10-24" |
| Hose size | 24" |
| Passing diameter | 830mm |
| Opening diameter | 830mm |
| Opening | 160mm |
| System pressure | 31.5MPa |
| Crimp force | 12000kN |
| Drive | 15kw |
| Standard voltage | Customized |
| Control | Siemens PLC digital touch screen |

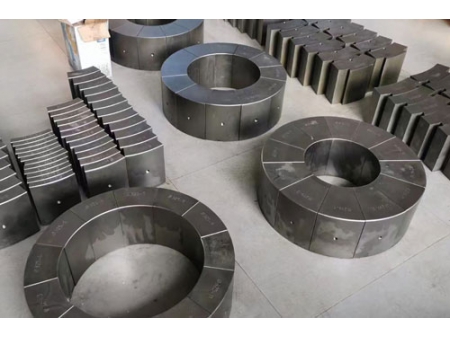

| Standard dies | Customized |
| Weight | 4200kg(crimping unit)/660kg(hydraulic power unit) |
| L x W x H | 2980*1530*2360mm/850*810 *1220mm |
Details

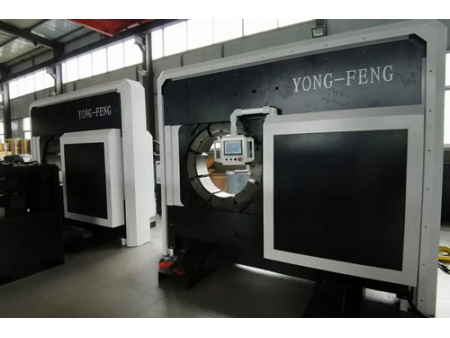

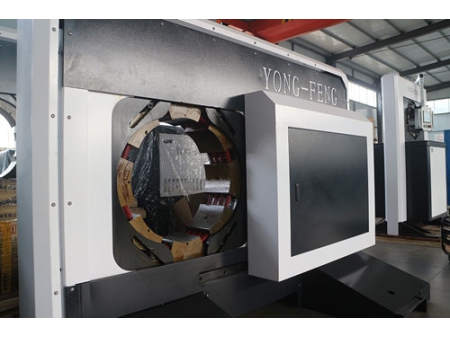

YONG-FENG Y630 hose crimping machine features stable structure, unique appearance design and Siemens PLC touch screen system. It is particularly manufactured by hydraulic technology and production process developed by YONG-FENG to crimp industrial hoses that are up to 24 inch. We also provide custom-tailored services to produce crimping machines that are suitable for different hose dimensions. Using our hose crimping machines, you will find that a hose is securely attached to a crimp flange or other hose fittings.
