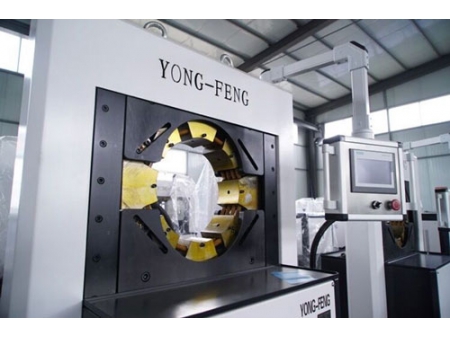

YONG-FENG Y360 Hose/Pipe Crimping Machine
Application
The crimp force of YONG-FENG Y360 Siemens PLC digital hydraulic hose crimping machine is 4800kN, with a crimp range of 50~240mm. YONG-FENG Y360 crimpers are widely used for crimping large high-pressure fuel pipes, industrial hoses, large water hoses, automobile air bags and wire ropes etc.
Max. inner diameter
Hydraulic hose up to 10"
Industrial hose up to 12"
| Crimp head material | Forge steel |
| Crimp range | 50-240mm |
| Hose size | 10" |
| Passing diameter | 360mm |
| Opening diameter | 360mm |
| Opening | 120mm |
| System pressure | 31.5MPa |
| Crimp force | 4800kN |
| Drive | 15kw |
| Standard voltage | Customized |

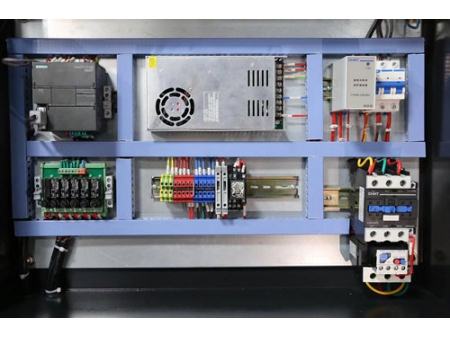

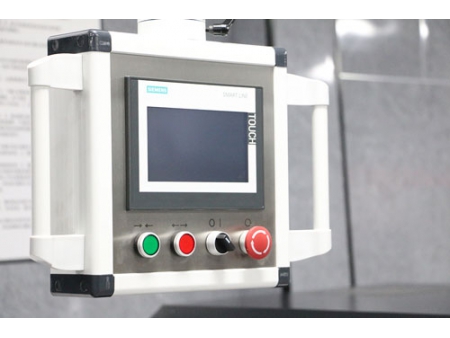

| Control | Siemens PLC digital touch screen |

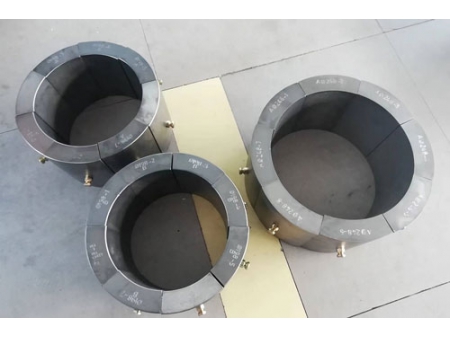

| Standard dies | Customized |
| Weight | 3100kg(crimping unit)/660kg(hydraulic power unit) |
| L x W x H | 1160*1010*1960mm/850* 810 *1220mm |
Details
YONG-FENG Y360 hose crimping machine features stable structure, unique appearance design and Siemens PLC touch screen system. It is particularly manufactured by hydraulic technology and production process developed by YONG-FENG to crimp industrial hoses that are 2 to 10 inch. By virtue of its high quality, the hose crimping machine has won trust of clients at home and abroad.
