Tandem Press Brake
Request a Quote
Tandem press brake is typically designed for extra-long workpiece bending applications by utilizing two or more press brakes in tandem with synchronized control system.
Features
- Precision bending to provide a superior processing accuracy;
- The motion of sliding block is controlled by four hydraulic cylinders; Electro-hydraulic servo system is used to control the four cylinders for sliding block synchronization, ensuring a constant reliability;
- Using CNC controller from world famous brand DELEM to control Y-axis;
- Manual operation, semi-automatic operation and fully automatic operation are available;
- Back gauge is controlled by high performance servo motor, ensuring high positioning accuracy of X-axis;
- Coupled with CNC control, worktable is outfitted with automatically adjustable deflection compensation system and V-axis to ensure high accuracy of workpiece processing;
- REXROTH electro-hydraulic servo valve is characterized by compact structure, high synchronization precision, long service life;
- Adopting HYTECH high pressure gear pump which can bear high pressure and produce low noise;
- Overflow protection is outfitted to hydraulic system;
- The tandem press brake can be continuously operated under rated workload condition, and the hydraulic system is featured by high stability without leakage problem, significantly guaranteeing a high precision;
- Various specifications including open height (daylight), throat depth and quantity of CNC axis are selectable according to your specific needs;

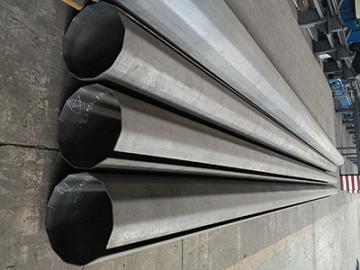

Applications
Details

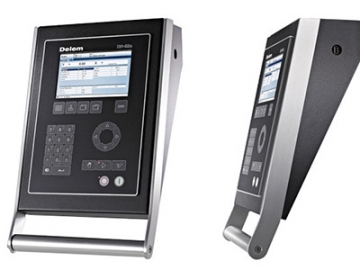

- DA-52S CNC control system

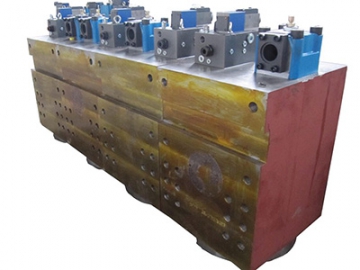

- Hydraulic cylinder

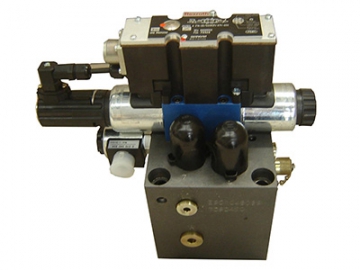

- Proportional servo valve

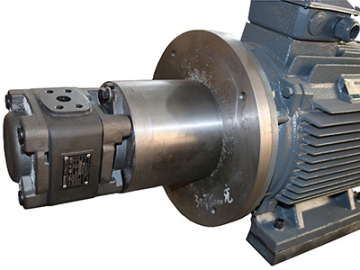

- Motor & pump

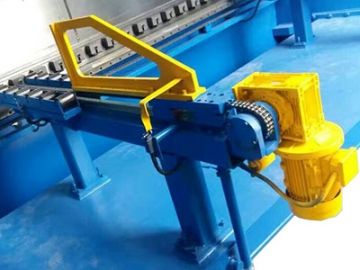

- Front in-feed unit
- Back gauge

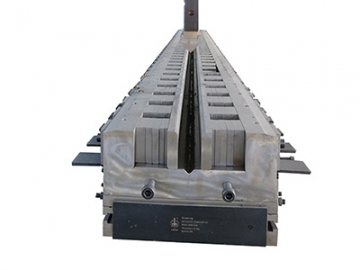

- Adjustable bottom die

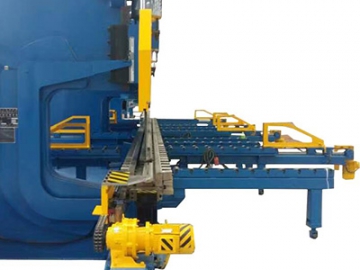

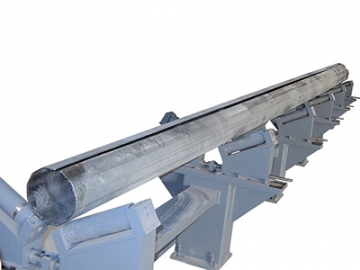

- Side out-feed unit
Optional configurations

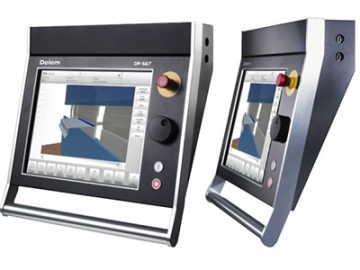

- DA-66T CNC control system

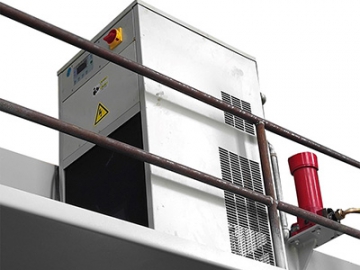

- Cooling system

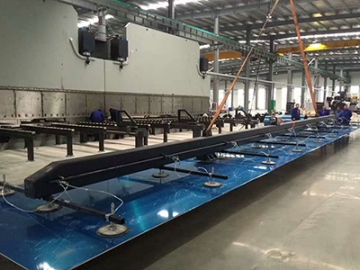

- Suction pad lifting system

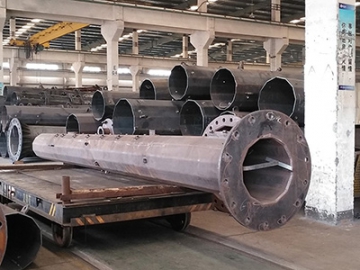

- Round light pole tooling
Specifications
No. | Model | Unit | 2xWE67K-200/4000 | 2xWE67K-300/4000 | 2xWE67K-400/4000 | 2xWE67K-500/4100 | 2xWE67K-500/6000 | 2xWE67K-600/6000 |
1 | Nominal force | KN | 2x2000 | 2x3000 | 2x4000 | 2x5000 | 2x5000 | 2x6000 |
2 | Length of working table | mm | 2x4000 | 2x4000 | 2x4000 | 2x4100 | 2x6000 | 2x6000 |
3 | Distance between uprights | mm | 3100 | 3100 | 3100 | 3100 | 4800 | 4800 |
4 | throat depth | mm | 320 | 350 | 400 | 400 | 1300 | 1300 |
5 | Max. daylight | mm | 435 | 435 | 520 | 600 | 1300 | 1300 |
6 | Main motor power | KW | 2x15 | 2x22 | 2x30 | 2x37 | 2x45 | 2x45 |
7 | Main oil pump | L/min | 2x25 | 2x40 | 2x50 | 2x63 | 2x80 | 2x80 |
8 | Approaching speed | mm/s | 70 | 70 | 70 | 70 | 70 | 70 |
9 | Bending speed | mm/s | 7 | 7 | 7 | 7 | 7 | 7 |
10 | Returning speed: | mm/s | 70 | 70 | 70 | 70 | 70 | 70 |
11 | Length | mm | 2x4200 | 2x4200 | 2x4200 | 2x4400 | 2x6200 | 2x6200 |
12 | Width | mm | 1650 | 1850 | 2000 | 2400 | 2800 | 3000 |
13 | Height(over land) | mm | 3070 | 3285 | 3430 | 3710 | 4300 | 4600 |
No. | Model | Unit | 2xWE67K-600/7000 | 2xWE67K-800/6000 | 2xWE67K-800/6500 | 2xWE67K-800/7000 | 2xWE67K-1000/6000 | 2xWE67K-1200/7000 | 2xWE67K-1600/6000 | 2xWE67K-1600/7000 |
1 | Nominal force | KN | 2x6000 | 2x8000 | 2x8000 | 2x8000 | 2x10000 | 2x12000 | 2x16000 | 2x16000 |
2 | Length of working table | mm | 2x7000 | 2x6000 | 2x6500 | 2x7000 | 2x6000 | 2x7000 | 2x6000 | 2x7000 |
3 | Distance between uprights | mm | 5600 | 4800 | 4800 | 5600 | 4800 | 5600 | 4800 | 5600 |
4 | Throat depth | mm | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 |
5 | Max. daylight | mm | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 |
6 | Main motor power | KW | 2x45 | 2x2x37 | 2x2x45 | 2x2x37 | 2x2x45 | 2x2x45 | 2x2x55 | 2x2x55 |
7 | Main oil pump | L/min | 2x80 | 2x2x50 | 2x2x63 | 2x2x50 | 2x2x63 | 2x2x80 | 2x2x100 | 2x2x100 |
8 | Approaching speed | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
9 | Bending speed | mm/s | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
10 | Returning speed: | mm/s | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
11 | Length | mm | 2x7200 | 2x6200 | 2x6700 | 2x7200 | 2x6200 | 2x7200 | 2x6200 | 2x6300 |
12 | Width | mm | 3000 | 3500 | 3500 | 3500 | 3800 | 4000 | 4500 | 4500 |
13 | Height(over land) | mm | 4600 | 4800 | 4800 | 5000 | 5100 | 5800 | 5900 | 5900 |
