CNC Press Brake
Request a Quote
Features
- Precision bending to provide a superior processing accuracy;
- Sliding block moves up and down by utilizing two hydraulic cylinders to control; Electro-hydraulic servo system is used to control the two cylinders for sliding block synchronization, ensuring a constant reliability;
- Using CNC controller from world famous brand DELEM to control Y-axis;
- Current and target positions of X, Y and V axes will be displayed;
- Back gauge is controlled by servo motor, ensuring high positioning accuracy of X-axis;
- Compact structure, excellent sealing performance, high synchronization precision, long service life;
- Equipped with large diameter filling valve, featuring high speed and low consumption;
- Adopting HYTECH high pressure gear pump which can bear high pressure and produce low noise;
- Overload and overflow protection is outfitted to hydraulic system;
- The CNC press brake can be continuously operated under rated workload condition, guaranteeing a high precision;
- Various specifications including open height (daylight), throat depth and quantity of CNC axis are selectable according to your specific needs;
- Manual operation, semi-automatic operation and fully automatic operation are available;
- Can be configured with CNC port for synchronization of two or three machines;

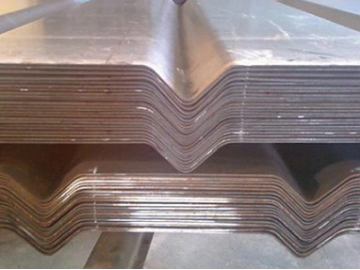

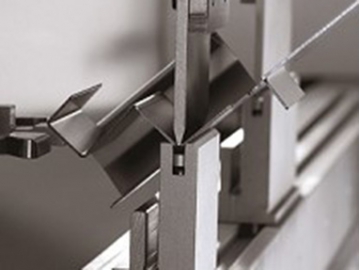

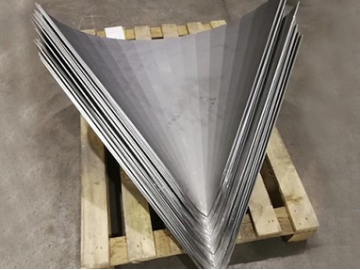

Applications
Details

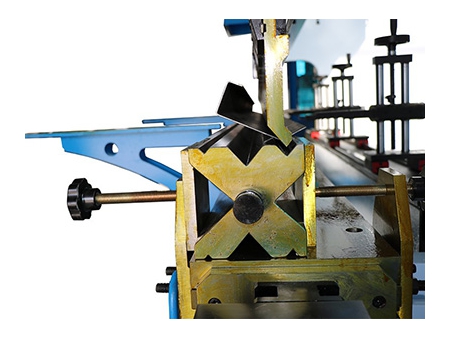

- Standard 4-way die with multiple V openings

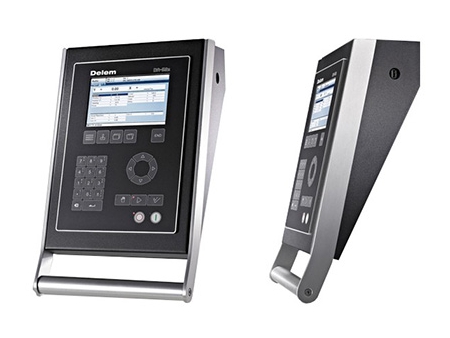

- DELEM CNC controller
- Precision hydraulic cylinder

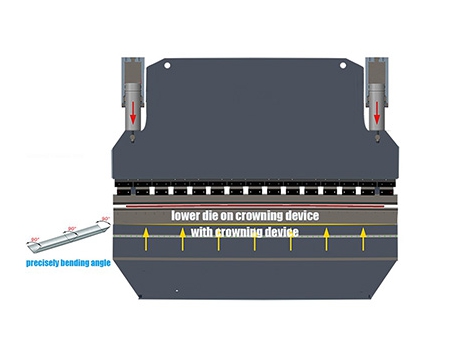

- CNC crowning system for deflection compensation

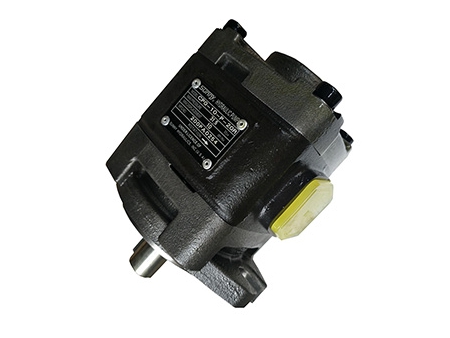

- Gear pump

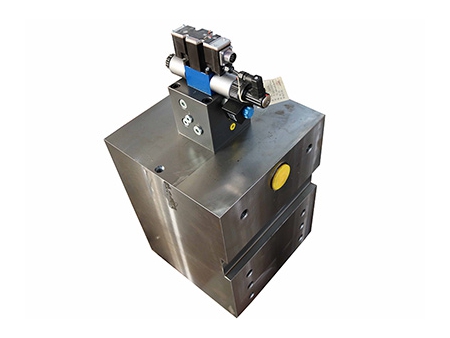

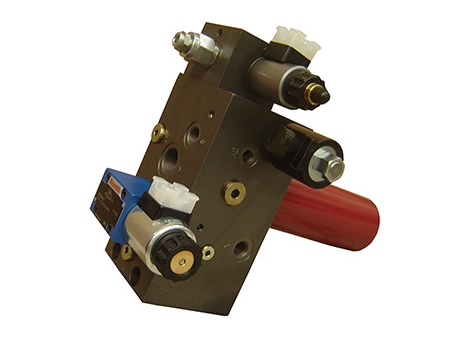

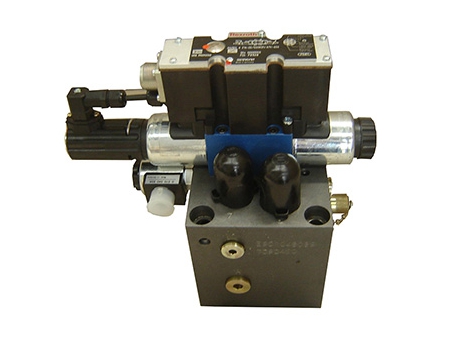

- REXROTH proportional servo valve
- REXROTH pressure valve

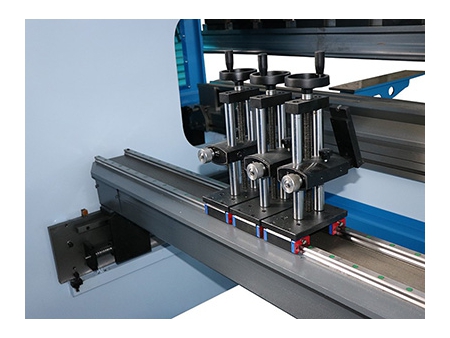

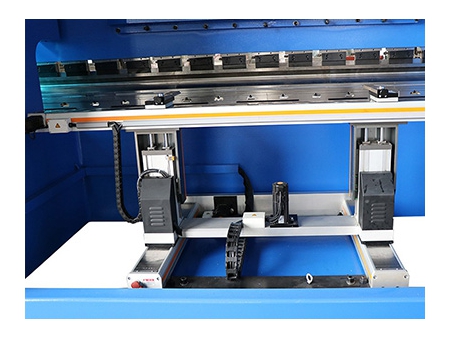

- CNC back gauge (X-axis), R-axis and Z-axis are manually adjusted
Optional configurations

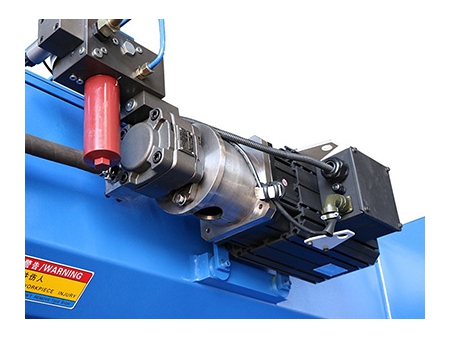

- Servo motor, servo hydraulic pump
- X-R-Z axes CNC back gauge

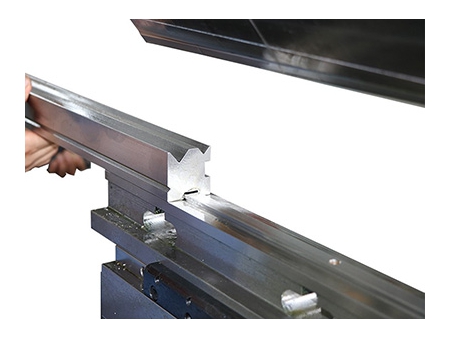

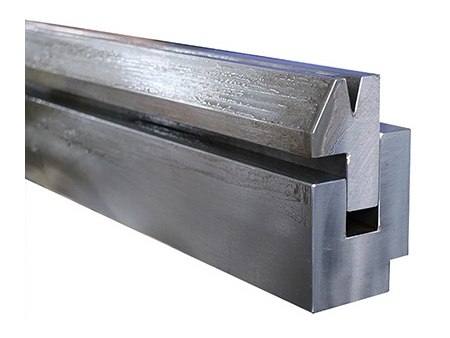

- Quick change bottom die

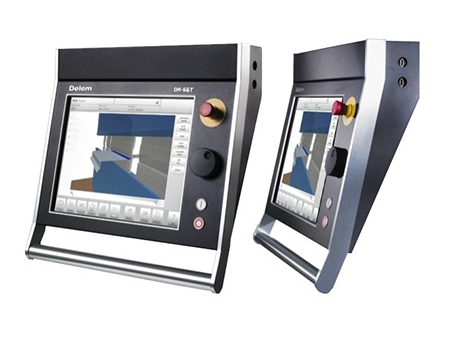

- DA-53S, DA-56S, DA-58T, DA-66T CNC control system

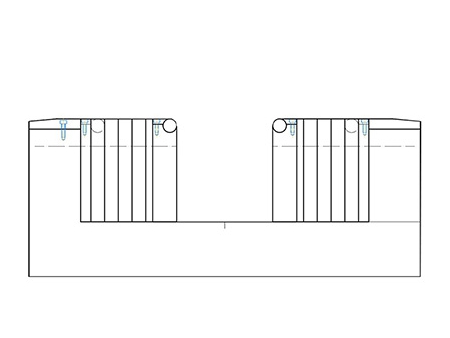

- Bottom die and die holder
- Adjustable bottom die

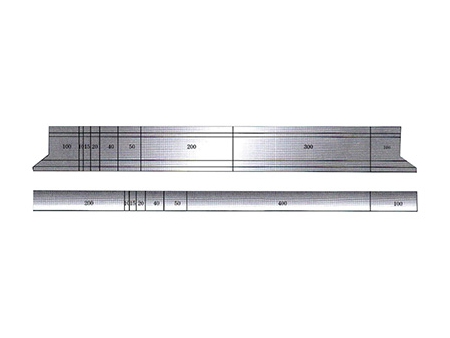

- Segmented top punch

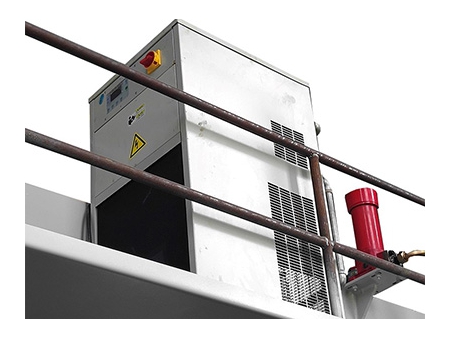

- Oil cooler
Specifications
| No. | Model | Unit | WE67K-63/2500 | WE67K-100/3200 | WE67K-125/3200 | WE67K-125/4000 | WE67K-160/3200 | WE67K-160/4000 |
| 1 | Nominal pressure | KN | 630 | 1000 | 1250 | 1250 | 1600 | 1600 |
| 2 | Bending width | mm | 2500 | 3200 | 3200 | 4000 | 3200 | 4000 |
| 3 | Distance between uprights | mm | 2050 | 2600 | 2600 | 3100 | 2500 | 3100 |
| 4 | Stroke | mm | 110 | 150 | 150 | 150 | 200 | 200 |
| 5 | Max. daylight | mm | 235 | 330 | 330 | 330 | 400 | 400 |
| 6 | Throat depth | mm | 250 | 320 | 320 | 320 | 320 | 350 |
| 7 | Working table length | mm | 2500 | 3200 | 3200 | 4000 | 3200 | 320 |
| 8 | Approaching speed | mm/s | 100 | 100 | 100 | 100 | 60 | 60 |
| 9 | Bending speed | mm/s | 8.5 | 8.5 | 8.5 | 8.5 | 6.5 | 6.5 |
| 10 | Returning speed | mm/s | 80 | 80 | 80 | 80 | 60 | 60 |
| 11 | Main motor power | KW | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| 12 | Oil pump | mr/r | 10 | 16 | 16 | 16 | 25 | 25 |
| 13 | Back gauge range | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| 14 | Machine length | mm | 2600 | 3300 | 3300 | 4100 | 3300 | 4100 |
| 15 | Machine width | mm | 1400 | 1400 | 1400 | 1400 | 1550 | 1550 |
| 16 | Machine height | mm | 1950 | 2380 | 2380 | 2430 | 2630 | 2630 |
| 17 | CNC axis | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V |
| No. | Model | Unit | WE67K-200/3200 Servo | WE67K-200/4000 | WE67K-250/3200 | WE67K-250/4000 | WE67K-250/6000 | WE67K-300/4000 |
| 1 | Nominal pressure | KN | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 |
| 2 | Bending width | mm | 3200 | 4000 | 3200 | 4000 | 6000 | 4000 |
| 3 | Distance between uprights | mm | 2500 | 3100 | 2600 | 3100 | 4800 | 3100 |
| 4 | Stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 |
| 5 | Max. daylight | mm | 435 | 435 | 435 | 435 | 435 | 435 |
| 6 | Throat depth | mm | 320 | 320 | 320 | 320 | 320 | 350 |
| 7 | Working table length | mm | 3200 | 4000 | 3200 | 4000 | 6000 | 400 |
| 8 | Approaching speed | mm/s | 60 | 100 | 100 | 100 | 70 | 60 |
| 9 | Bending speed | mm/s | 6.5 | 8.5 | 8.5 | 8.5 | 7 | 6.5 |
| 10 | Returning speed | mm/s | 60 | 80 | 80 | 80 | 60 | 60 |
| 11 | Main motor power | KW | 15 | 15 | 18.5 | 18.5 | 18.5 | 220 |
| 12 | Oil pump | mr/r | 25 | 25 | 32 | 32 | 32 | 40 |
| 13 | Back gauge range | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| 14 | Machine length | mm | 3300 | 4100 | 3300 | 4100 | 6200 | 4100 |
| 15 | Machine width | mm | 1650 | 1630 | 1750 | 1750 | 1850 | 1850 |
| 16 | Machine height | mm | 2930 | 3070 | 3070 | 3070 | 3360 | 3285 |
| 17 | CNC axis | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V |
| No. | Model | Unit | WE67K-400/3200 | WE67K-400/4000 | WE67K-400/6300 | WE67K-600/4000 | WE67K-600/6000 | WE67K-600/7000 |
| 1 | Nominal pressure | KN | 4000 | 4000 | 4000 | 6000 | 6000 | 6000 |
| 2 | Bending width | mm | 3200 | 4000 | 6300 | 4000 | 6000 | 7000 |
| 3 | Distance between uprights | mm | 2600 | 3100 | 4800 | 3100 | 4800 | 5600 |
| 4 | Stroke | mm | 250 | 250 | 250 | 300 | 300 | 300 |
| 5 | Max. daylight | mm | 520 | 520 | 520 | 600 | 600 | 600 |
| 6 | Throat depth | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| 7 | Working table length | mm | 3200 | 4000 | 6300 | 400 | 6000 | 7000 |
| 8 | Approaching speed | mm/s | 60 | 60 | 70 | 70 | 70 | 70 |
| 9 | Bending speed | mm/s | 6.5 | 6.5 | 7 | 7 | 7 | 7 |
| 10 | Returning speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 |
| 11 | Main motor power | KW | 30 | 30 | 30 | 45 | 45 | 45 |
| 12 | Oil pump | mr/r | 50 | 50 | 50 | 80 | 80 | 80 |
| 13 | Back gauge range | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| 14 | Machine length | mm | 3300 | 4100 | 6400 | 4200 | 6200 | 7200 |
| 15 | Machine width | mm | 2000 | 2000 | 2100 | 2600 | 2600 | 2600 |
| 16 | Machine height | mm | 3230 | 3430 | 3600 | 3750 | 4350 | 4570 |
| 17 | CNC axis | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V |
| No. | Model | Unit | WE67K-600/8000 | WE67K-700/7000 | WE67K-800/6000 | WE67K-800/7000 | WE67K-8000/8000 | WE67K-1200/8000 |
| 1 | Nominal pressure | KN | 6000 | 7000 | 8000 | 8000 | 8000 | 12000 |
| 2 | Bending width | mm | 8000 | 7000 | 6000 | 7000 | 8000 | 8000 |
| 3 | Distance between uprights | mm | 6200 | 5600 | 4800 | 5600 | 6200 | 6200 |
| 4 | Stroke | mm | 300 | 300 | 400 | 400 | 400 | 400 |
| 5 | Max. daylight | mm | 600 | 640 | 800 | 800 | 800 | 900 |
| 6 | Throat depth | mm | 400 | 500 | 500 | 500 | 500 | 1200 |
| 7 | Working table length | mm | 8000 | 7000 | 6000 | 7000 | 8000 | 8000 |
| 8 | Approaching speed | mm/s | 70 | 70 | 70 | 100 | 100 | 70 |
| 9 | Bending speed | mm/s | 7 | 7 | 7 | 8.5 | 8.5 | 7 |
| 10 | Returning speed | mm/s | 60 | 60 | 60 | 80 | 80 | 70 |
| 11 | Main motor power | KW | 45 | 55 | 74 | 74 | 74 | 30 |
| 12 | Oil pump | mr/r | 80 | 100 | 100 | 100 | 126 | 160 |
| 13 | Back gauge range | mm | 600 | 600 | 600 | 600 | 600 | 1000 |
| 14 | Machine length | mm | 8200 | 7100 | 6200 | 7100 | 8100 | 8300 |
| 15 | Machine width | mm | 2700 | 2850 | 3200 | 3200 | 3200 | 4100 |
| 16 | Machine height | mm | 4600 | 4650 | 4800 | 5000 | 5300 | 6720 |
| 17 | CNC axis | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V |
| No. | Model | Unit | WE67K-2000/10000 | WE67K-2500/12000 | WE67K-3000/14000 | WE67K-1000/10000 |
| 1 | Nominal pressure | KN | 20000 | 25000 | 30000 | 10000 |
| 2 | Bending width | mm | 10000 | 12000 | 14000 | 10000 |
| 3 | Distance between uprights | mm | 7800 | 9050 | 10500 | 7800 |
| 4 | Stroke | mm | 400 | 300 | 600 | 400 |
| 5 | Max. daylight | mm | 920 | 900 | 1900 | 800 |
| 6 | Throat depth | mm | 600 | 600 | 1200 | 600 |
| 7 | Main motor power | KW | 110 | 45 | 165 | 90 |
| 8 | CNC axis | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V | Y1-Y2-X V |
