Honeycomb All-in-One Compact Dryer

Request a Quote

View All: http://plastics-machines.com/1-5-honeycomb-all-in-one-compact-dryer.html

SCD

Plastic processing machine combining functions of dehumidifying, drying and conveying

This honeycomb all-in-one compact dryer is an innovative dryer integrating three main functions: dehumidifying, drying, and conveying. Designed to optimize the handling of hygroscopic plastic materials such as PET, PA, and PC. Its main features are tailored to enhance the efficiency and quality of plastic processing.

Features

Combines dehumidification, drying, and conveying capabilities, streamlining the plastic processing workflow
Utilizes a full molecular sieve honeycomb rotor that provides stable, low dew point air, preventing material contamination that can occur with older dual-tower systems
Features a cutting system within the suction box to ensure that no residual materials remain in the tubes, preventing moisture regain
The insulated drying hopper uses a downward-blowing air pipe design coupled with a cyclone exhaust system to minimize heat loss and improve drying efficiency

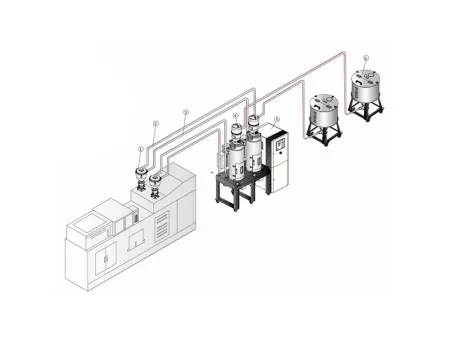

Equipped with two drying hoppers, each with individually controlled drying temperatures, allowing for simultaneous dehumidification and drying of two different types of plastics, typically used with dual-color molding machines
Includes a weekly timer for scheduling automatic operations, enhancing productivity with minimal supervision
The new and improved drying hoppers reduce floor space requirements by 14-20% compared to previous models

Applications

As an important piece of plastic auxiliary machinery, this honeycomb all-in-one compact dryer is specifically designed for plastics that are susceptible to moisture, providing essential dehumidification, drying, and conveying operations. For volatile materials, it is recommended to use an EOF oil filter to ensure safe and effective processing.

Specifications (Hermetic)

Model SCD-		20U/30H-OP	40U/30H-OP	80U/50H-OP	120U/80HOP	40U/40H	80U/40H	120U/80H	160U/80H	160U/120H	230U/120H	300U/200H	450U/200H
Drying system	Drying heater power (kW)	3	3	4	6	4	4	4	4	6	6	12	12
	Drying blower power (kW)	0.4	0.4	0.4	0.75	0.18	0.18	0.75	0.75	0.75	0.75	1.5	1.5
	Insulated hopper capacity (L)	20	40	80	120	40	80	120	160	160	230	300	450
Dehumidifying system	Regeneration heater power (kW)	3	3	3	3	3	3	3	3	4	4	4	4
	Regeneration blower power (kW)	0.4	0.4	0.4	0.4	0.12	0.12	0.18	0.18	0.18	0.18	0.4	0.4
	Dehumidifying air volume (m³/hr)	30	30	50	80	40	40	80	80	120	120	200	200
Feeding system	Feeding blower power (kW)	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
	Diameter of material pipe (inch)	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
	SVH-L hopper (L)	3*	3*	3*	3*	3	6	6	6	6	12	12	12
	SHR-U hopper (L)	3	3	6	6	3	6	6	6	6	12	12	12
Dimensions	W(mm)	1081	1097	1159	1159	1081	1097	1159	1159	1159	1257	1460	1460
	D(mm)	900	900	1000	1000	903	903	903	903	903	903	1020	1020
	H(mm)	1400	1500	1670	1710	1685	1771	1957	2102	2102	2014	2160	2350
Weight (kg)		235	280	330	385	295	325	340	350	390	420	565	595

Specifications (Semi-open)

Model SCD-		600U/400H	750U/400H	900U/700H		1200U/700H	40Ux2/80H	80U×2/80H	20U×2/120H	160U×2/200H
Drying system	Drying heater power (kW)	18	18	24		24	3×2	3.9×2	3.9×2	6×2
	Drying blower power (kW)	3.75	3.75	7.5		7.5	0.75	0.4	0.75	1.5
	Insulated hopper capacity (L)	600	750	900		1200	40×2	80×2	120×2	160×2
Dehumidifying system	Regeneration heater power (kW)	7.2	7.2	10		10	3	3	4	4
	Regeneration blower power (kW)	0.75	0.75	1.5		1.5	0.4	0.4	0.4	0.4
	Dehumidifying air volume (m³/hr)	400	400	700		700	80	80	120	200
Feeding system	Feeding blower power (kW)	1.5	1.8	3.75		3.75	1.5	1.5	1.5	1.5
	Diameter of material pipe (inch)	1.5	1.5	2		2	1.5	1.5	1.5	1.5
	SVH-L hopper (L)	12	12	24		24	6	6	6	6
	SHR-U hopper (L)	12	12	24		24	3	6	6	6
Dimensions	H(mm)	2380	2610	2640		3070	1655	1866	1800	2113
	W(mm)	1745	1745	2140		2140	1422	1886	2084	2124
	D(mm)	1255	1255	1380		1380	853	915	915	930
Weight (kg)		640	690	850		900	320	400	500	565
Notes: 1) Plastic materials can be fully dried by drying air with dew-point temperature ≤-20°C 2) "*" stands for hopper receiver SHR-CP-U 3) Power: 3φ, 400VAC, 50Hz					We reserve the right to change specifications without prior notice.
