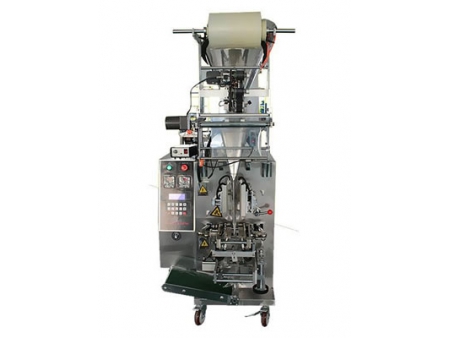

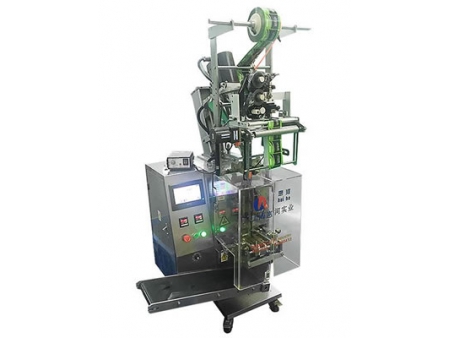

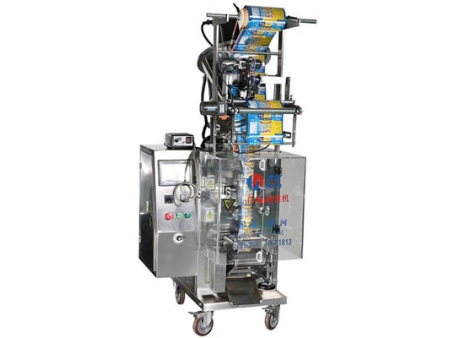

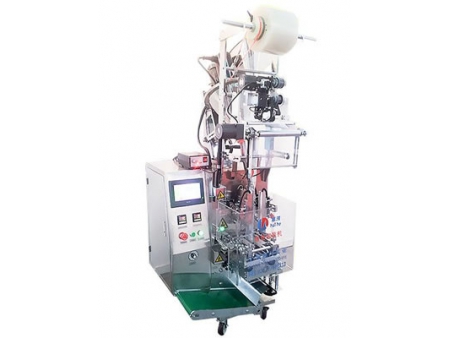

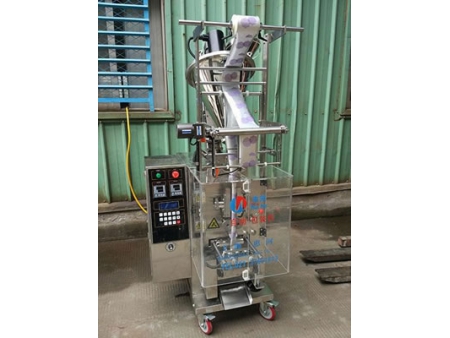

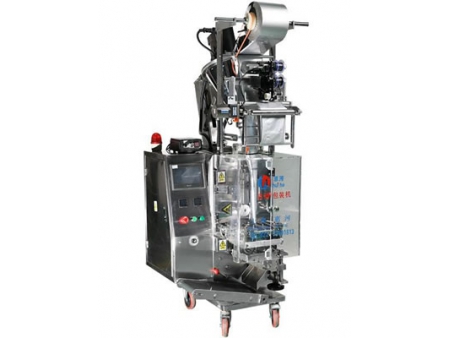

Automatic Powder Bag Forming Filling Sealing Machine
(0.5-200g)

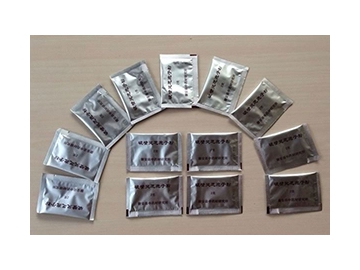

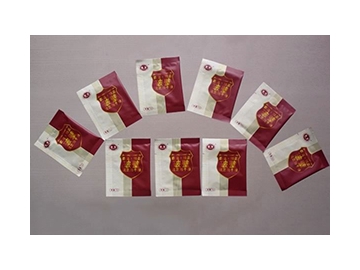

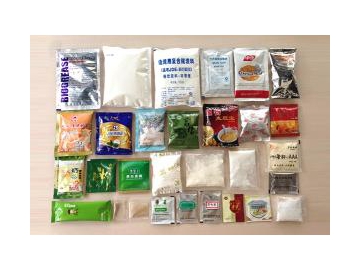

Samples
| Model | DXDF-240 | DXDF-300 |
| Sealing type | 3/4 side sealing | 3/4 side sealing |
| Method of measurement | Screw type measuring device (one set equipped) | |
| Range of measurement | 0-100 ml | 0-350 ml |
| Packaging speed | 40-60 bags/min | |
| Bag size | W: 30-120mm L: 30-170mm | W: 30-150mm L: 30-170mm |
| Power | 1400W | 1600W |
| Voltage | 380V, 220V or customized | 380V, 220V or customized |
| Machine weight | 210 kg | 270 kg |
| Dimensions | 630×750×1600mm | 1020×750×1800mm |
Features
1. The automatic powder bag forming filling sealing machine is well designed and has some attractive features. For example, the part directly contacting with materials is made from SUS304 stainless steel, in order to guarantee high hygiene. A micro-computer LCD is installed for intelligent control. The malfunction alarm system and electric control cabinet contribute to 24-hour continuous running of the automatic powder packaging machine. The powder bagging machine provides variable-frequency speed adjustment and passes CE certificate. It automatically completes bag making, measuring, filling, sealing, cutting and counting by itself.
2. With the use of a stepping motor, the automatic powder packaging machine is capable to pack materials at a customized length or flexible length. There is no need to adjust the parameter, saving time and film. Plus, the powder packaging system will automatically give an alarm for film shortage.
3. In this automatic powder bag forming filling sealing machine, the temperature is controlled by an intelligent solid-state double-loop PID controller for suiting various types of packaging materials. A protection device is also equipped to ensure packaging material and product will not be burned.
4. Optional configurations of this vertical packaging machine include ribbon printer, filling device, gas-exhaust device and beating device.
5. The drive system possesses compact structure, reliable performance and convenient maintenance.
6. Applicable materials are PET/PE, Paper/PE, PET/AL/PE and OPP/PE.
