43mm Chain Width
- Beam width: 45mm
- Chain width: 43mm
- Chain pitch: 12.7mm
- Chain tension limit/tensile strength: 500N
- Maximum conveyor load: 30kg
- Maximum conveyor length: 6m
- Materials: aluminum/stainless steel
*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

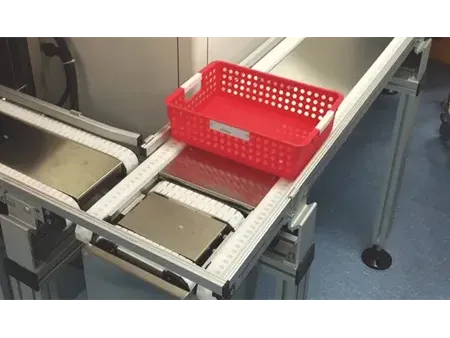

The CX45 modular plastic chain conveyor system is a compact and robust modular plastic chain conveyor designed to streamline the handling of small and lightweight products.

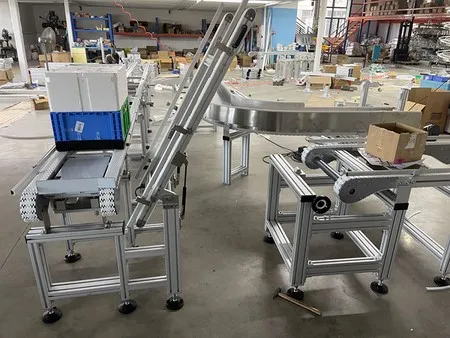

The conveyor system features aluminum alloy beams that enable both horizontal and vertical product conveying and distribution. Its design of compact, space-saving vertical bends ensures efficient floor space utilization, supports multi-level transportation, and facilitates operator access. This modular conveyor with chain width of 43mm accommodates a wide range of products with diverse weights and shapes, ranging from a few grams to 8 kilograms.
- Longer lifespan: Under standard conditions, our modular plastic chain conveyors boast an extended lifespan, often lasting for years without any performance degradation and demanding minimal maintenance.
- Tailored conveyor solutions: We use standard components to design customized conveyor solutions tailored to the unique needs of each customer.
- Quick delivery: Leveraging standard components allows for efficient design and assembly processes, enabling the delivery of customized conveyor solutions in less time.
- Compatibility and flexibility: Our plastic chain conveyors are seamlessly compatible with renowned conveyor lines like Flexlink, FlexMove, and Rexroth. This compatibility offers you the flexibility to select the conveyor system that precisely fits your needs and preferences.

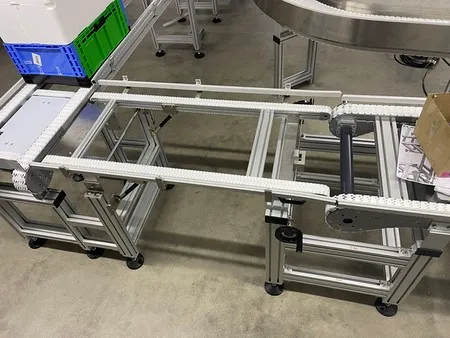

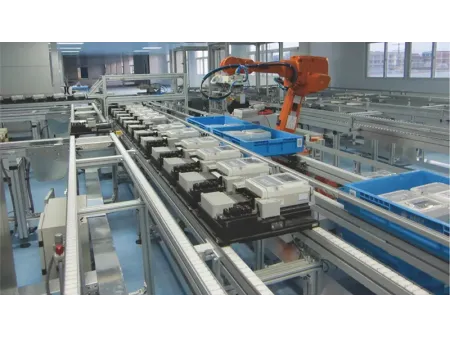

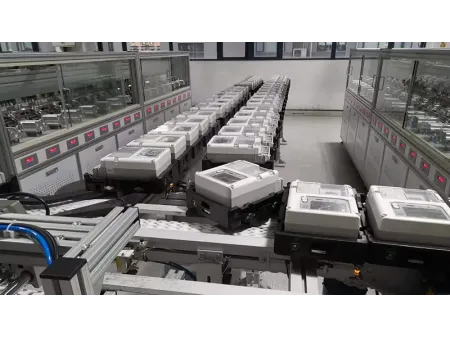

This modular plastic chain conveyor is suitable for conveying products as small as 10mm and lightweight products e.g. small bottles, cosmetics, etc. The modular conveyor system can be configured and assembled as twin-track pallet conveyor system.

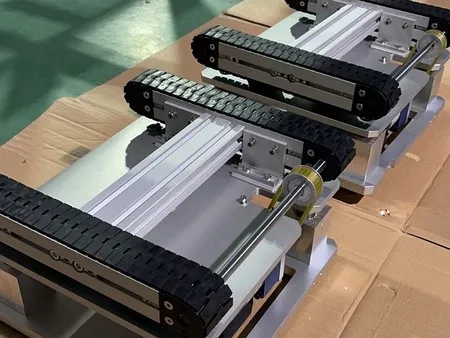

Transverse Conveyor
Pass-Through Gate Conveyor

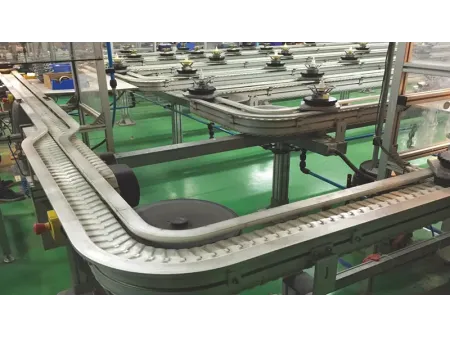

Lift Transfer Unit- Curve Conveyor
This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

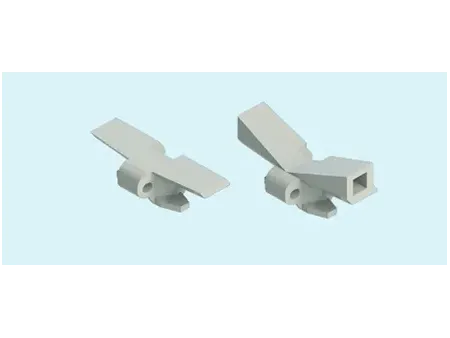

Conveyor chains

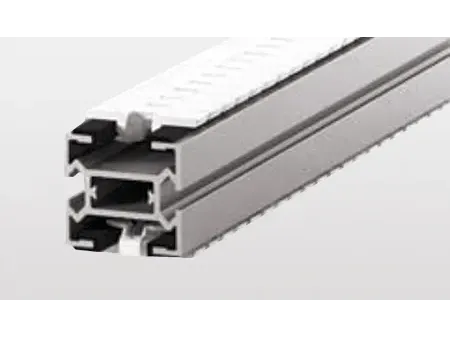

Conveyor beam

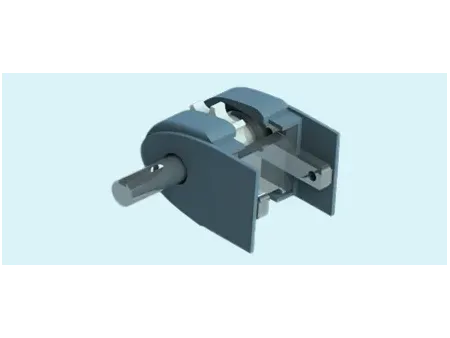

End drive unit

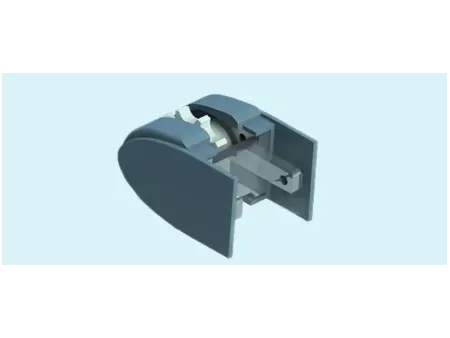

Idler end unit

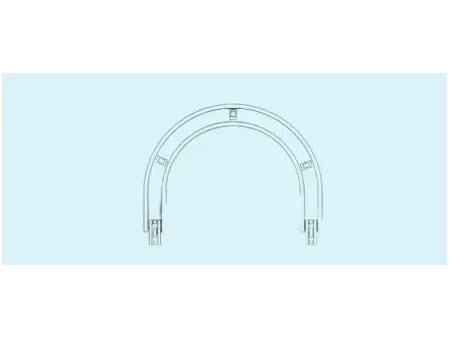

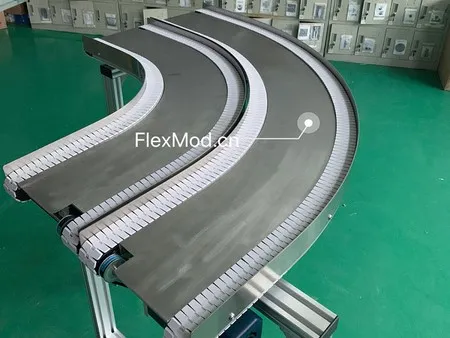

Horizontal plain bends
