175mm Chain Width
- Beam width: 182mm
- Chain width: 175mm
- Chain pitch: 33.5mm
- Chain tension limit/tensile strength: 1250N
- Item width: 70-200mm
- Maximum item weight:
- Horizontal transport:15kg
- Maximum conveyor load: 200kg
- Maximum conveyor length: 30m
*Conveyor components may vary, and the conveyor system can be configured with the appropriate chain based on production needs like temperature and strength requirements.
The modular plastic chain conveyor system features aluminum beams and flexible plastic chains crafted from high-quality DuPont raw materials. These conveyor chains efficiently distribute products horizontally and vertically across multiple levels. The compact vertical design of the conveyors saves floor space and enhances accessibility and operability for operators. The standard conveyor chain width is 175mm.
- Exceptional service and support: Our modular plastic chain conveyors are known for their top-notch service and technical support, which are on par with international brands.
- Efficient delivery and competitive pricing: We ensure fast assembly and delivery, maintain a large inventory, and offer competitive pricing compared to global brands.
- Compatible and flexible: Our advantage lies in the compatibility of our chain plates with well-known conveyor lines such as Flexlink, FlexMove, and Rexroth, giving customers more choice and flexibility.

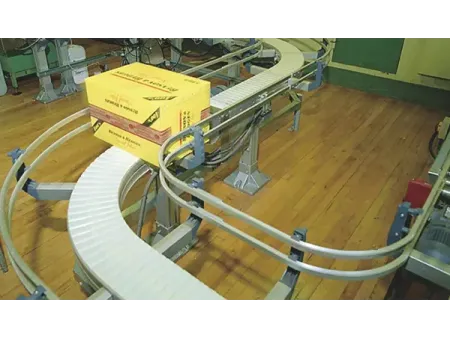

This modular plastic chain conveyor is suitable for conveying large cardboard boxes, soft plastic packaging, personal items, chemical barrels, plastic bottles, and other products. It can be widely used in various industries such as industrial manufacturing, logistics, packaging, etc.
This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

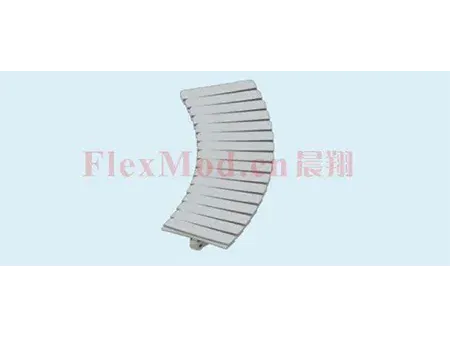

Conveyor chains

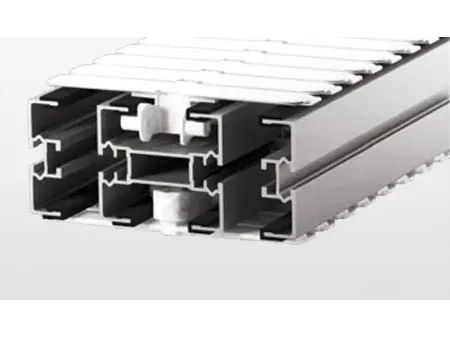

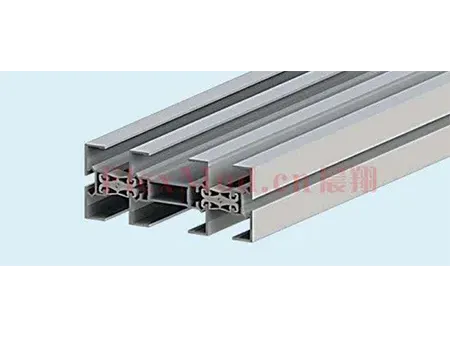

Conveyor beam

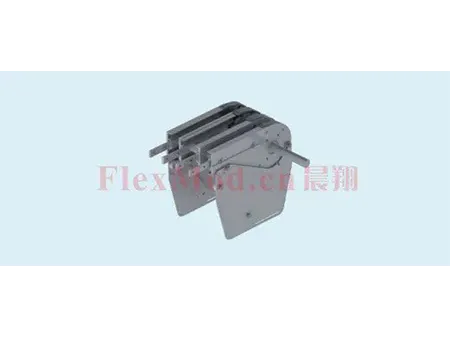

End drive units

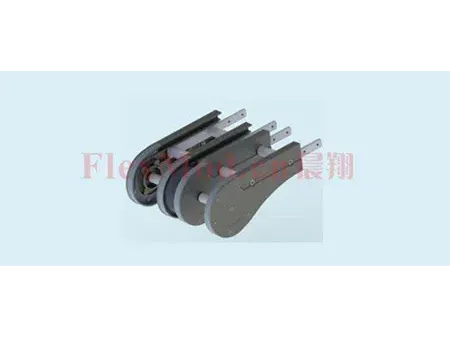

Idler end unit

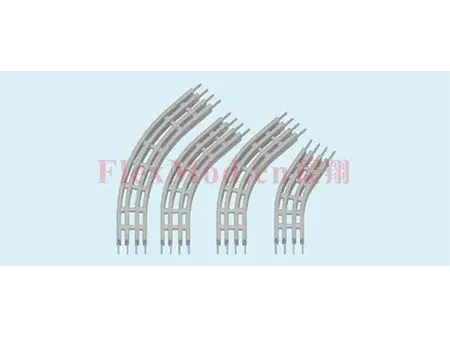

Horizontal plain bends
