Resin Reactor
Request a Quote

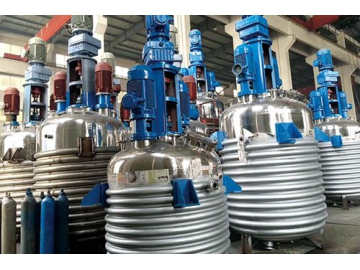

Resin reactor is a chemical reactor mainly constructed to produce unsaturated polyester resins, phenolic resins, epoxy resins and ABS resins. It consists of reaction vessel, fractionating column, vertical condenser, water storage unit and dilution tank, all parts in contact with materials are made of stainless steel.
Vessel capacity: 50-5000L
Specifications
| Items | Volume & Size | |||||||
| Reaction vessel capacity (L) | 50 | 100 | 300 | 500 | 1000 | 2000 | 3000 | 5000 |
| Fractionating column (diameter × height) (mm) | DN70x460 | DN100x500 | DN150x560 | DN150x750 | DN200x790 | DN200x1000 | DN250x1200 | DN300x1200 |
| Vertical condenser area (m²) | 0.01 | 0.19 | 0.22 | 0.49 | 1 | 1.5 | 2.5 | 5 |
| Horizontal condenser area (m²) | 0.29 | 0.58 | 1.5 | 2.08 | 3.17 | 5 | 12 | 20 |
| Water storage (L) | 8 | 30 | 50 | 60 | 100 | 120 | 198 | 300 |
| Dilution tank (L) | 100 | 200 | 500 | 800 | 1500 | 3000 | 4500 | 7500 |
