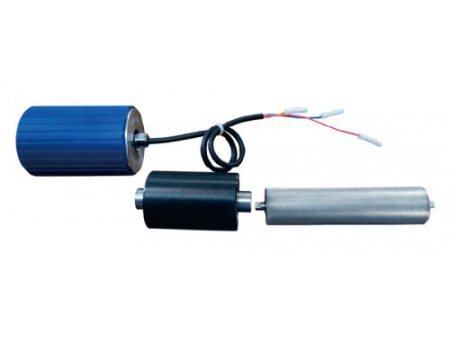

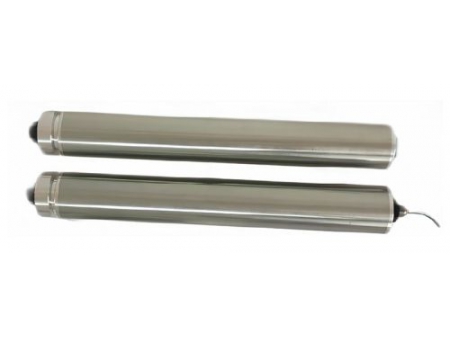

Drum motor used in conveyor systems for unit handling

Permanent magnet motorized pulley, using a permanent magnet outer rotor motor, with high-precision speed feedback through a Hall encoder, driven by a dedicated control card, and intelligent control of IO and communication via 485/CAN.

Applications
  • Modular belt conveyors, sorting machines, bagging machines, and roller conveyors
  • Automation control, security scanners, express sorting, and other industries.
Application Display
  • Flywheel
  • Sorting system
  • Turntable

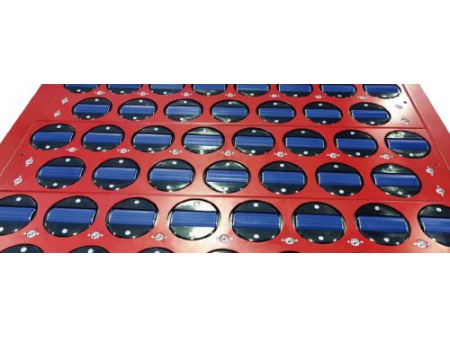

  • Sorting module

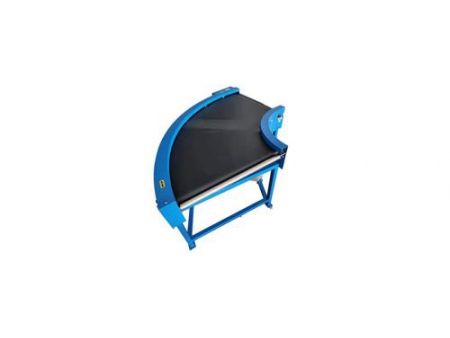

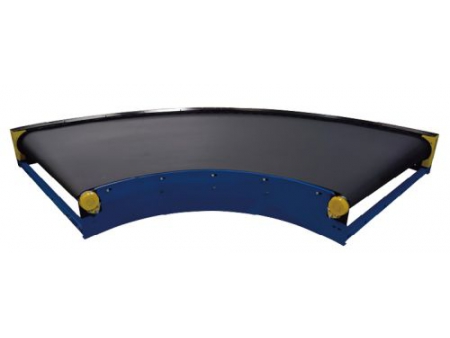

  • Curved belt conveyor

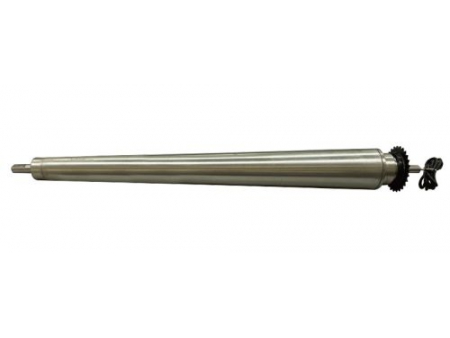

  • Conical roller
Features
    • Permanent magnet motorized pulley comes with safe voltage, ultra-low noise, no leakage, and excellent user experience.
    • This drum motor allows for frequent start-stop, and more flexibility.
    • Wide speed range ensures adjustment according to demand.
    • Excellent low-temperature resistance
Technical Data
Drum Diameter
D mm
Torque
M Nm
Input Power of Rotational Speed (RPM)
P W
Voltage
V
Speed induction Control
Rated Peak 30~100 120~180 200~300 300~450 450~600 600~800
Ø50 0.8 1.5       35 50 75 DC24 DC48 H: Hall M: Magnetic encoder IO CAN 485
1.6 2.5       70 100 150
2.5 5 40 50 60 70 100
Ø67 1 2       50 75 100 DC48
2 4       100 150 200
4 8       160 240 320
8 16       320 480 640
Ø100 9 47     300 450 600   DC48
17 26     500 750 1100
Ø113 15 23 150 250 450 670     DC48
30 45 300 550 900 1100 1500
