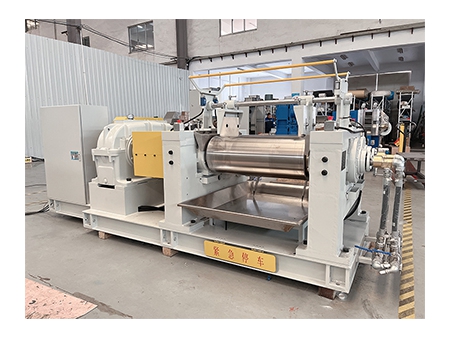

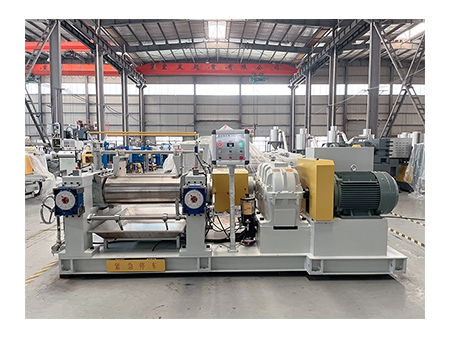

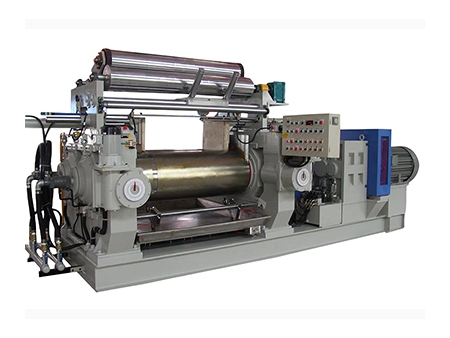

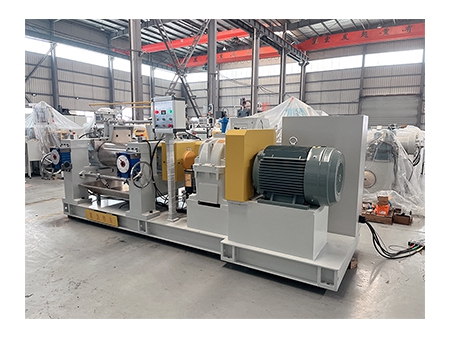

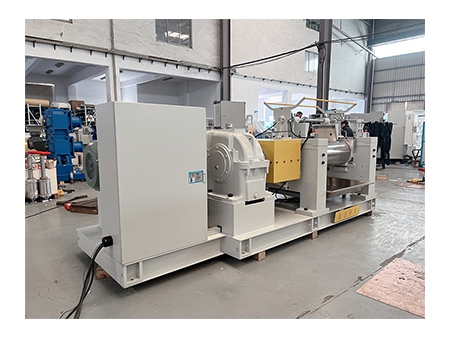

Rubber & Plastic Open Mixing Mill

Rubber & Plastic Open Mixing Mill
Rubber & Plastic Open Mixing Mill
Rubber & Plastic Open Mixing Mill
Rubber & Plastic Open Mixing Mill
Rubber & Plastic Open Mixing Mill
Rubber & Plastic Open Mixing Mill
Request a Quote
Applications
  • Plasticizing, mixing, pressing, and impurity removal in rubber compounds.
  • Thermal refining, mixing, post-stage supply of mixed rubber.
  • Plasticizing of plastics, mixing of plastics, blending of fillers, blending of blending modifiers, preparation of masterbatches, and continuous feeding of plasticized plastics for calendering machines.
Specifications
Spec Ø16’’ Ø14’’ Ø12’’
Roll Size (diameter×length) 408×1000 360×920 305×700
Line Speed (m/min) 20.65 19 15.1
Front Roll Speed RPM (min) 16.44 16.5 16.5
Roll Ratio (front/back) 1:1.27 1:1.27 1:1.27
Capacity (once) (kg) 20-35 20-25 14-20
Motor Power 45kW-6P 30kW-6P 22kW
Weight (kg) 8000 5800 4300
Container Volume (m³) 12 8 6
Overall Dimensions (L×W×H) (mm) 4001×1500×1870 3700×11425×1870 2754×1275×1657
