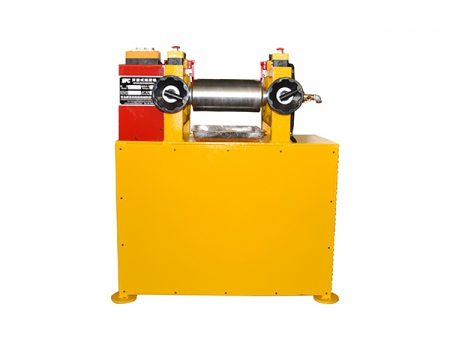

Lab Rubber Mixing Mill
Request a Quote
Applications
Lab rubber mixing mills are used to mix rubber that has been processed by a rubber kneader or banbury rubber mixer in a uniform manner. This lab rubber equipment is widely used in rubber and rubber product fields, serving as lab equipment in tire factories, cable factories, rubber hose and belt factories, rubber shoe factories, sealing element factories, calcium-resin factories and more.
Parameters
| Technical parameters Model | |
| Roller working diameter（mm） | 160 |
| Roller working length （mm） | 320 |
| Front roller linear speed （m/min） | 8.95 |
| Roller speed ratio | 1:1.35 |
| Maximum roller spacing（mm） | 4.5 |
| Capacity per batch（kg） | 1-2 |
| Motor power （kw） | 5.5 |
| Dimension: L×W×H（mm） | 1380×860 ×1320 |
Product description of Lab Rubber Mixing Mill
- The machine is compact, occupying a space of only1.2m2.
- The lab rubber mixing mill is equipped with both an emergency stop button and a knee push emergency stop switch for added protection.
