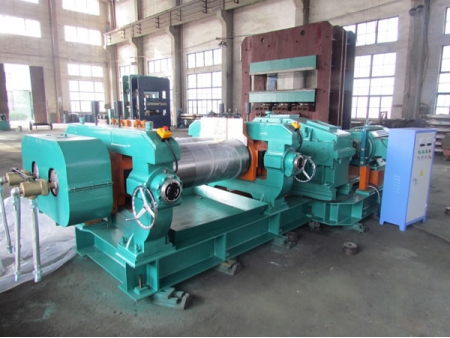

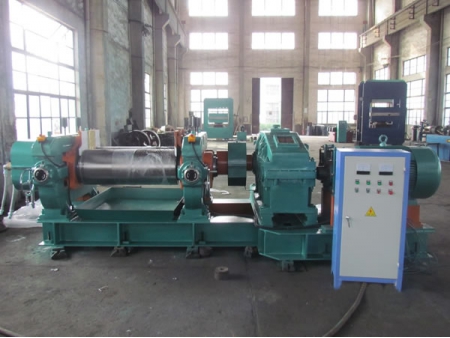

Rubber Mixing Mill with Stock Blender( H Type)
Request a Quote
Rubber Kneader, Mixing Mill, Rubber Mill
The H type rubber mixing mill with stock blender uses imported technology, giving the open type mixing mill the advantages of stable operation with an outstanding mixing capacity.
Technical Parameters
| Dia of roll (mm) | 560 |
| Working length of rolls (mm) | 1524 |
| Working linear speed of front roll (m/min) | 22.63 |
| Friction ratio of front and rear roll | 1:1.24 |
| Max. gap (mm) | 15 |
| Capacity per batch (kg) | 75~100 |
| Motor power (kw) | 110 |
| Overall dimension (mm) | 5970X2200X1600 |
| Weight (kg) | 21500 |
