Rubber Mixing Mill (A Type)
Request a Quote
Mixing Mill, Rubber Mill, Open Mixing Mill, Two Roll Mill, Rubber Machine

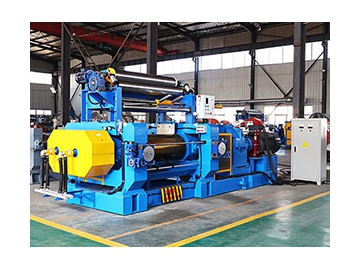

The A type rubber mixing mill is primarily used in rubber and plastic production factories for natural rubber plasticizing, raw rubber and compound mixing as well as a warm up unit for rubber and rubber sheeting.
Features

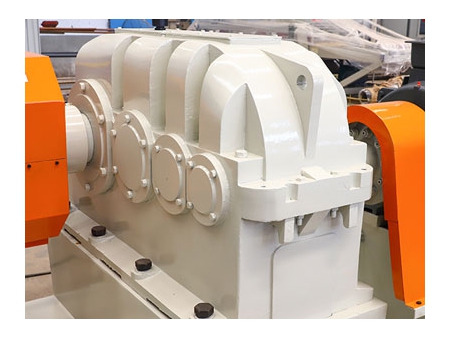

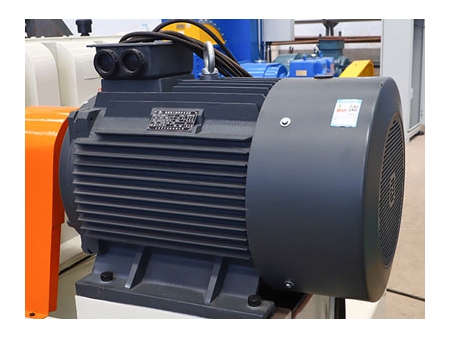

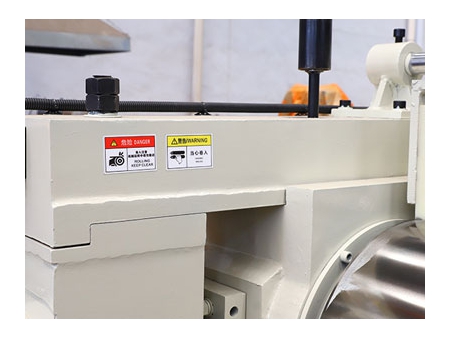

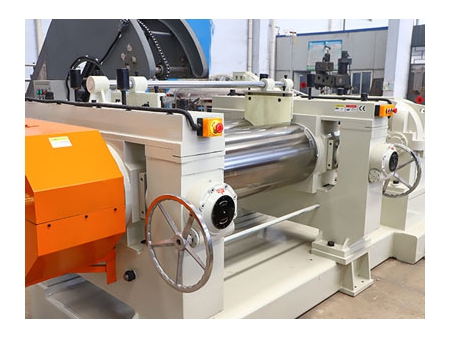

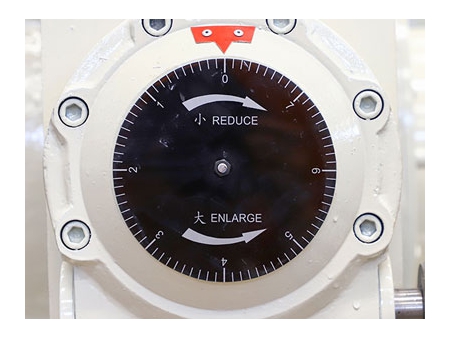

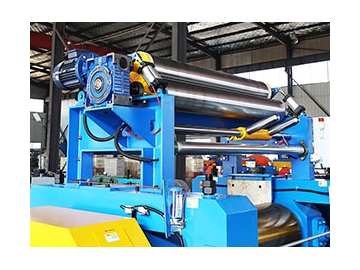

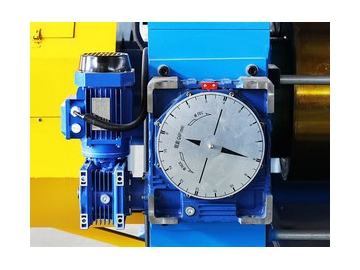

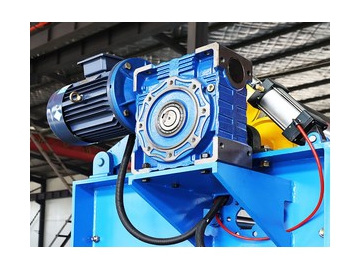

- As an open type two roller mixing mill, it consists of a seat, frame, roller, driving gear, lubricating device, cooling and heating device, adjusting device of roller nip, safety brake, motor and reducer.

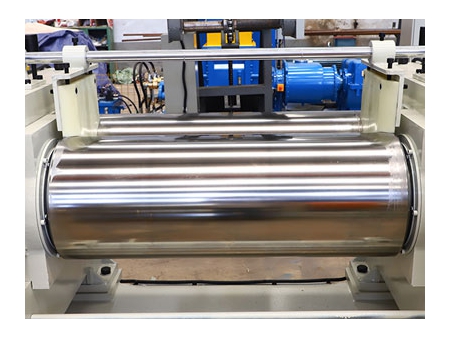

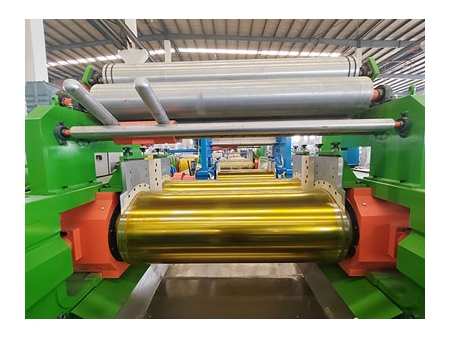

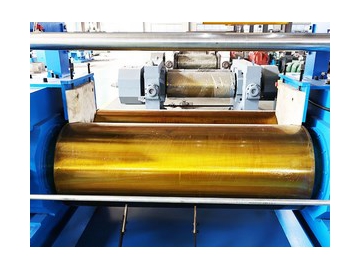

- The polished roller, is made of chilled cast iron. Steam and cooling water can be injected in the empty roller to adjust the roller’s temperature. Two rollers rotate inversely with different speeds, so that rubber materials are drawn into the gap of the two rollers for processing.
Technical Parameters
Type | ||||||||
Working diameter of rolls (mm) | Ø150 | Ø250 | Ø300 | Ø360 | Ø400 | Ø450 | Ø560 | |
Working length of rolls (mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1530 | |
Working linear speed of front roll(m/min) | 8 | 15.1 | 15.1 | 16.25 | 18.65 | 24.5 | 27.7 | |
Max gap (mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 | |
Capacity per batch(kg) | 1-2 | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 | |
Driving motor power(kw) | 7.5 | 18.5 | 22 | 30 | 37 | 55 | 95 | |
Overall dimension (mm) | L | 1080 | 3400 | 3580 | 3940 | 4250 | 5200 | 6120 |
W | 796 | 1350 | 1550 | 1780 | 1850 | 2380 | 2280 | |
H | 1415 | 1500 | 1695 | 1740 | 1870 | 1770 | 2000 | |
Weight (kg) | 1100 | 3500 | 5205 | 5670 | 7600 | 13000 | 22000 | |
Notes | Bearing | Nylon bush grease LUB Copper sleeve oil LUB | Nylon bush grease LUB |
