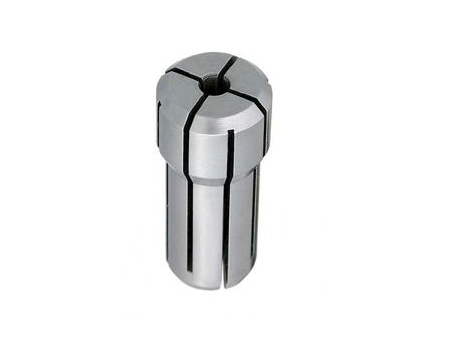

DA Double Angle Collet

Request a Quote

View All: http://weedcontrolproduct.com/4-7-gibberellic-acid.html

The DA (Double Angle) collet is usually used for drilling and milling, especially for machining processes the require collets with short diameters, such as multi-axis drilling in precision manufacturing center. The raw material and processed materials of collet have a significant impact on the quality of the collet, so in order to ensure the quality and accuracy of collet, all the raw and processed materials are directly provided by high-quality manufacturers. At the same time, the whole production process is completed in the LONNZ factory, which makes it easier for us to manage it strictly, thus improving the stability and service life of the collets.

We have several types of DS collet in stock

DA 100 collets
DA 180 collets
DA 200 collets
DA 300 collets

Features of Precision double angle collet

Clamps well on slightly uneven surfaces
Collets collapse 1/64”

Technical parameter

DA Collet Dimensions	DA 100	DA 180	DA 200	DA 300
D	0.769”	1.035”	0.532”	0.375"
L	1.44”	1.64”	1.19”	1.004
Bore Range	1/8-9/16	1/8-3/4	1/16-3/8	1/16-1/4
Collapse	1/64	1/64	1/64	1/64
