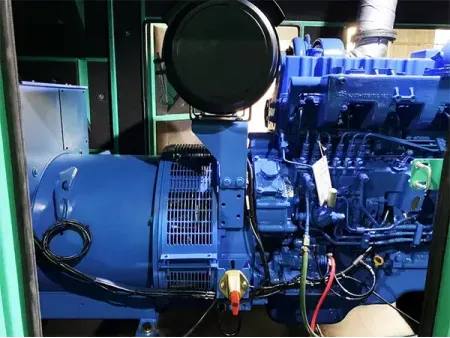

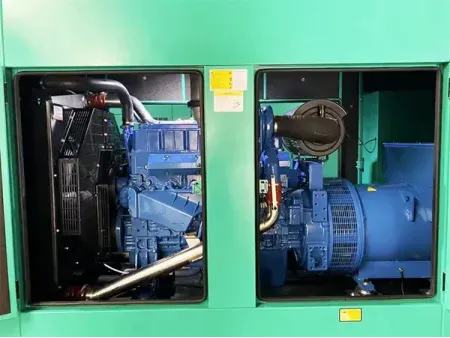

Yuchai MTU Powered Diesel Generators
Our diesel generator sets are equipped with MTU engines designed and manufactured to original factory specifications. With decades of experience and complete system expertise, MTU diesel gensets are built to deliver maximum reliablity, combining low fuel consumption, extended service intervals, and reduced emissions. Built to meet stringent international emission standards such as EU Stage V and EPA Tier 4, these units deliver rated power outputs from 1250 to 3000 kVA. They also feature integrated remote monitoring and fault diagnosis capabilities, enabling efficient oversight and maintenance from virtually anywhere.
| Frequency | 50Hz | 60Hz |
| Prime Power | 1250-3000kVA (1000-2400kW) | 1750-3512kVA (1400-2810kW) |
| Standby Power | 1375-3250kVA (1100-2600kW) | 2000-4062kVA (1600-3250kW) |
| Fuel Consumption | 275.4-585L/h | 350.2-585L/h |
| Displacement | 57.2-95.4L | 57.2-95.4L |
| Genset Model | Prime Power | Standby Power | Engine Model | Fuel Consumption | Cylinder | Displacement | ||
| kVA | kW | kVA | kW | L/h | L | |||
| | 1250 | 1000 | 1375 | 1100 | 12V4000G23RF | 275.4 | 12V | 57.2 |
| | 1500 | 1200 | 1750 | 1400 | 12V4000G23F | 350.2 | 12V | 57.2 |
| | 1750 | 1400 | 2000 | 1600 | 12V4000G63F | 355.8 | 12V | 57.2 |
| | 2000 | 1600 | 2250 | 1800 | 16V4000G23F | 406.1 | 16V | 76.3 |
| | 2250 | 1800 | 2500 | 2000 | 16V4000G63F | 441.5 | 16V | 76.3 |
| | 2500 | 2000 | 2750 | 2200 | 20V4000G23F | 504.7 | 20V | 95.4 |
| | 2750 | 2200 | 3000 | 2400 | 20V4000G63F | 549.5 | 20V | 95.4 |
| | 3000 | 2400 | 3250 | 2600 | 20V4000G63LF | 585 | 20V | 95.4 |
| Genset Model | Prime Power | Standby Power | Engine Model | Fuel Consumption | Cylinder | Displacement | ||
| kVA | kW | kVA | kW | L/h | L | |||
| | 1750 | 1400 | 2000 | 1600 | 12V4000G43S | 350.2 | 12V | 57.2 |
| | 2000 | 1600 | 2188 | 1750 | 12V4000G83S | 355.8 | 12V | 57.2 |
| | 2250 | 1800 | 2625 | 2100 | 16V4000G43S | 406.1 | 16V | 76.3 |
| | 2625 | 2100 | 2875 | 2300 | 16V4000G83S | 441.5 | 16V | 76.3 |
| | 2875 | 2300 | 3188 | 2550 | 20V4000G43S | 504.7 | 20V | 95.4 |
| | 3125 | 2500 | 3500 | 2800 | 20V4000G83S | 549.5 | 20V | 95.4 |
| | 3512 | 2810 | 4062 | 3250 | 20V4000G83LS | 585 | 20V | 95.4 |
Through the remote monitoring management system, operators are able to track real-time operating status, receive fault alerts, and manage maintenance without being on-site. The system allows you to view parameters such as fuel level, battery voltage, oil pressure, engine temperature, output power, running hours, mains and generator voltage and frequency, and engine speed from a remote interface.
Common voltage options include 220V for single-phase equipment (e.g., household appliances) and 380V for three-phase equipment (e.g., industrial machinery). Frequency can also be adjusted, typically between 50Hz and 60Hz, the two most widely used international power standards. Adjusting the frequency ensures the generator’s output matches the requirements of connected equipment for optimal performance.
