Yuchai Powered Diesel Generators

Request a Quote

Website: http://dieselgenerator-en.com/1-6-yuchai-powered-diesel-generators.html

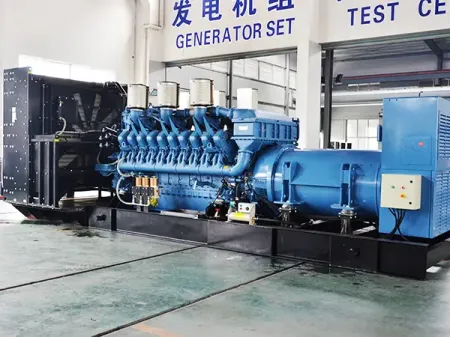

Our diesel generators are equipped with Yuchai-manufactured diesel engines featuring advanced common rail fuel injection (CRS) and turbocharging technology. Meeting China III and higher emission standards, these Yuchai engine powered gensets are engineered to perform reliably in challenging environments, including high temperatures, high humidity, and high altitudes. Their combination of fuel efficiency, consistent output, and durability makes them a practical choice for a variety of applications, from industrial operations to commercial facilities and critical infrastructure.

Frequency	50Hz	60Hz
Prime Power	20-3500kVA (16-2800kW)	20-2000kVA (16-1600kW)
Standby Power	22-3750kVA (18-3000kW)	22-2250kVA (18-1800kW)
Fuel Consumption	6.3-800.0L/h	6.3-430L/h
Displacement	2.5-105.6L	2.5-52.3L

Technical Specifications

50Hz Diesel Generator Sets

Genset Model	Prime Power		Standby Power		Engine Model	Fuel Consumption	Cylinder	Displacement
Genset Model	kVA	kW	kVA	kW	Engine Model	L/h	Cylinder	L
CDY22	20	16	22	18	YCV2.5N35-G20	6.3	4L	2.5
CDY33	30	24	33	27	YCV2.5T45-G20	4.7	4L	2.5
CDY41	38	30	41	33	YCV2.5T55-G20	10.4	4L	2.5
CDY45	40	32	45	36	YCD4.2N60-G20	10.4	4L	4.2
CDY69	63	50	69	55	YCD4.2T90-G20	13.8	4L	4.2
CDY80	75	60	80	64	YCA4.8T100-G20	15.3	4L	4.8
CDY88	80	64	88	70	YCA4.8T110-G20	17.9	4L	4.8
CDY113	100	80	113	90	YCA4.8TAA140-G20	24.6	4L	4.8
CDY138	125	100	138	110	YCA4.8TAA180-G20	29.9	4L	4.8
CDY150	135	108	150	120	YCB6.9TAA180-G20	24.7	6L	6.9
CDY165	150	120	165	132	YCB6.9TAA205-G20	28.5	6L	6.9
CDY200	188	150	200	160	YCA7.3TAA245-G20	40.1	6L	7.3
CDY225	200	160	225	180	YCQ7.5260-G30	45.5	6L	7.4
CDY225	200	160	225	180	YCMK10TAA285-G20	46.7	6L	10.3
CDY275	250	200	275	220	YCMK10TAA350-G20	57.2	6L	10.3
CDY350	313	250	350	280	YCMK10TAA420-G20	69.1	6L	10.3
CDY400	375	320	400	320	YCMJ12TAA500-G20	81.4	6L	11.7
CDY450	400	320	450	360	YCMJ12540-G30	87.9	6L	11.7
CDY500	450	360	500	400	YCT16TAA600-G20	98.2	6L	16.4
CDY550	500	400	550	440	YCT16TAA660-G20	110.1	6L	16.4
CDY550	500	400	550	440	YCT16660-G31	113.8	6L	16.4
CDY625	563	450	625	500	YCTD20780-G31	130.8	6L	19.6
CDY688	625	500	688	550	YCTD20840-G31	143.2	6L	19.6
CDY750	700	560	750	600	YCTD20900-G31	154.3	6L	19.6
CDY825	750	600	825	660	YCTD201000-G30	166.4	6L	19.6
CDY900	813	650	900	720	YCTH281070-G31	177.2	6L	28.1
CDY1000	900	720	1000	800	YCTH281220-G31	199.1	6L	28.1
CDY1125	1000	800	1125	900	YCTH281320-G31	216.4	6L	28.1
CDY1125	1000	800	1125	900	YCC401320-G31	220.2	6L	39.6
CDY1250	1125	900	1250	1000	YCC401520-G31	253.3	6L	39.6
CDY1250	1125	900	1250	1000	YCTD40TA1500-G30	230.8	12V	39.2
CDY1375	1250	1000	1375	1100	YCTD40TA1680-G30	259.1	12V	39.2
CDY1500	1375	1100	1500	1200	YCTD40TA1830-G30	285.2	12V	39.2
CDY1625	1500	1200	1625	1300	YCTD40TA2000-G30	319.7	12V	39.2
CDY1875	1688	1350	1875	1500	YCTD52TA2270-G30	383.0	16V	52.3
CDY2063	1875	1500	2063	1650	YCTD52TA2510-G30	412.5	16V	52.3
CDY2250	2000	1600	2250	1800	YCTD52TA2700-G30	430.0	16V	52.3
CDY2250	2125	1700	2250	1800	YCC80TA2700-G31	441.9	12V	79.2
CDY2500	2250	1800	2500	2000	YCC80TA3000-G30	505.9	12V	79.2
CDY2500	2250	1800	2500	2000	YCC105TA3000-G31	493.9	16V	105.6
CDY2750	2500	2000	2750	2200	YCC105TA3300-G31	543.2	16V	105.6
CDY3000	2750	2200	3000	2400	YCC105TA3600-G31	595.3	16V	105.6
CDY3250	3000	2400	3250	2600	YCC105TA4000-G31	673.9	16V	105.6
CDY3500	3250	2600	3500	2800	YCC105TA4200-G30	752.0	16V	105.6
CDY3750	3500	2800	3750	3000	YCC105TA4500-G30	800.0	16V	105.6

60Hz Diesel Generator Sets

Genset Model	Prime Power		Standby Power		Engine Model	Fuel Consumption	Cylinder	Displacement
Genset Model	kVA	kW	kVA	kW	Engine Model	L/h	Cylinder	L
CDY22	20	16	22	18	YCV2.5N35-G21	6.3	4L	2.5
CDY33	30	24	33	26	YCV2.5T45-G21	4.7	4L	2.5
CDY41	38	30	41	33	YCV2.5T55-G21	10.4	4L	2.5
CDY45	40	32	45	36	YCD4.2N65-G21	10.4	4L	4.2
CDY63	56	45	63	50	YCD4.2T80-G21	13.8	4L	4.2
CDY75	69	55	75	60	YCD4.2T100-G21	15.3	4L	4.8
CDY100	88	70	100	80	YCB6.9T130-G21	24.7	6L	6.9
CDY125	113	90	125	100	YCB6.9T160-G21	25.6	6L	6.9
CDY165	150	120	165	132	YCB6.9TAA210-G21	28.5	6L	6.9
CDY200	188	150	200	160	YCA7.3TAA245-G21	40.1	6L	7.3
CDY275	250	200	275	220	YCMK10TAA360-G21	57.2	6L	10.3
CDY350	313	250	350	280	YCMK10TAA420-G21	69.1	6L	10.3
CDY400	375	300	400	320	YCMJ12TAA515-G21	81.4	6L	11.7
CDY450	400	320	450	360	YCMJ12540-G33	87.9	6L	11.7
CDY500	450	360	500	400	YCT16TAA600-G21	98.2	6L	16.4
CDY550	500	400	550	440	YCT16TAA660-G21	110.1	6L	16.4
CDY625	562.5	450	625	500	YCTD20780-G33	130.8	6L	19.6
CDY688	625	500	688	550	YCTD20840-G33	143.2	6L	19.6
CDY750	700	560	750	600	YCTD20940-G32	154.3	6L	19.6
CDY825	750	600	825	660	YCTD201020-G32	166.4	6L	19.6
CDY900	813	650	900	720	YCTH281070-G33	177.2	6L	28.1
CDY1000	900	720	1000	800	YCTH281220-G33	199.1	6L	28.1
CDY1125	1000	800	1125	900	YCTH281350-G33	216.4	6L	28.1
CDY1125	1000	800	1125	900	YCTD40TA1350-G32	223.4	12V	39.2
CDY1250	1125	900	1250	1000	YCTD40TA1500-G32	230.8	12V	39.2
CDY1375	1250	1000	1375	1100	YCTD40TA1680-G32	259.1	12V	39.2
CDY1500	1375	1100	1500	1200	YCTD40TA1860-G32	285.2	12V	39.2
CDY1688	1500	1200	1688	1350	YCTD40TA2070-G32	319.7	12V	39.2
CDY1875	1688	1350	1875	1500	YCTD52TA2270-G32	383	16V	52.3
CDY2063	1875	1500	2063	1650	YCTD52TA2510-G32	412.5	16V	52.3
CDY2250	2000	1600	2250	1800	YCTD52TA2700-G32	430	16V	52.3

Light diesel is the standard choice for Yuchai gensets, while heavy fuel is limited to specific models. Selection should take into account operating duration, ambient temperature, and cost considerations. Always adhere to fuel quality standards to help extend the service life of the generator.

The intelligent version of Yuchai diesel generators comes with remote monitoring and alert functions. Through a dedicated app, users can remotely start or stop the generator, automatically generate fuel consumption, load rate, and carbon emission reports, and receive early warnings of potential faults, reducing the need for on-site maintenance personnel. This is particularly suited for industrial environments where operational efficiency is critical.
