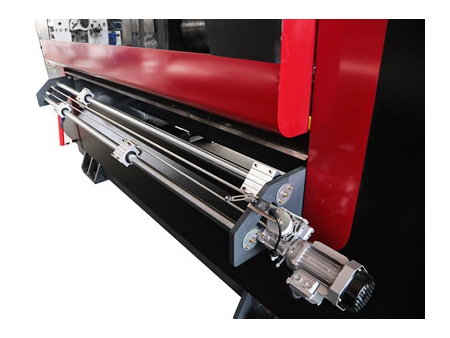

Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC

Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Automatic Slitter Scorer, 150/200/250m/min, SMBD-ANC
Request a Quote

Corrugated Board Manufacturing

Features

  • Slitting blade and scoring wheel are controlled by independent motors, ensuring fast, precise and reliable operation;
  • Variable frequency drive is used for control of slitting and scoring, speed can be synchronized with corrugating line;
  • Two rows of scoring wheels achieve minimum scoring distance of 0mm;
  • Three score profiles are available;
  • Electric adjustment of scoring depth;
  • Tungsten steel alloy blade is featured by long service life, automatic sharpening system is configured;
  • Transverse movement control system is available;
  • HMI touch screen for easy operation;
  • Designed with standard interface to facilitate access to production management system;
  • Up to 999 orders can be stored;
  • Compact structure with less vibrations;
  • Linear slider of high precision and grinding ball screw transmission, ensuring the positioning accuracy of slitting line.
  • Automatically tracking the speed of manufacturing line to ensure their synchronizing and compatible with existing manufacturing administrative system.
  • Automatic or manual sharpening controlled by the computer, lightweight and easy to maintain.
  • Synchronous belt with high precision, low noise and long service life.
  • Electric left and right guiding 200mm.
  • Longitudinal knife and scoring wheel is respectively controlled by individual motor, 1-3 second order change and precision ± 0.5mm.
  • Synchronous belt transmission with no gap and precise encoder monitoring.
  • Imported branded components, ensuring the perfect running.
  • Two machines can be alternately used, guaranteeing the continuity of slitting with no necessity of stopping machines.

Specifications

Model 1800 2200 2500
Effective width 1850mm(72.83") 2250mm(88.58") 2550(100.39")
Min. slitting 135mm(5.31")
Min. scoring distance 0mm
Slitting blade size 260*158*1.3mm(10.24*6.22*0.05")
Scoring wheel size Upper 162mm(6.38"),lower 162mm(6.38")
Order change (servo) 1-3s
Guiding range ±100mm(3.94")
Precision ±0.5mm(0.020")
Slitting/scoring 5/8 6/10 7/12
Servo quantity 14 28 33
Power 16kW 20kW 21kW
Dimension (pre-pressing type) 3840*2100*2450mm (151.18*82.68*96.46") 4240*2100*2450mm (166.93*82.68*96.46") 4540*2100*2450mm (178.74*82.68*96.46")
Dimension (common type) 3840*1720*2450mm (151.18*67.72*96.46") 4240*1720*2450mm (166.93*67.72*96.46") 4540*1720*2450mm (178.74*67.72*96.46")
Scoring depth 12mm(0.47")
Speed (m/min) 150/200/250m(5905.51/7874.02/9842.52")/min
