Waterjet Cutting Machine

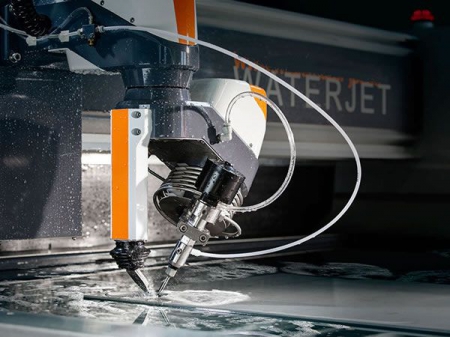

ACCURL 3D 5 Axis Waterjet CNC Machine, Water Jet Cutting Stainless Steel, High Pressure Waterjets

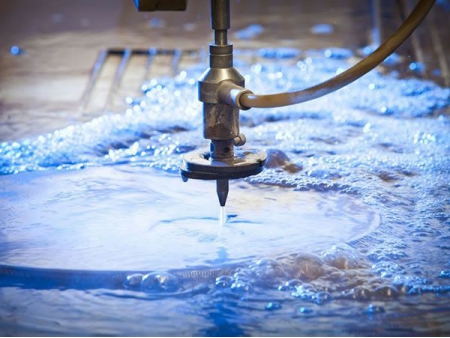

The ACCURL® abrasive water jet machine is a high-pressure waterjet machine that utilizes straight water cutting or abrasive waterjet cutting to cut several types of material. The ACCURL® is a heavy-duty precision, ground ball screw designed system for maximum precision and rigidity.

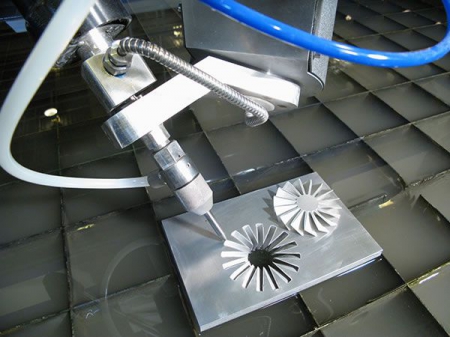

The ACCURL® will cut material such as aluminum, armor plate, brass, carpet, copper, glass, granite, leather, marble, mild steel, plastic, stainless steel, stone, tile, titanium. It makes use of the high pressure water jet to cut materials of thicknesses up to 8".
- No heat-affected zone
- No mechanical stresses
- Very narrow kerf
- No need for secondary operations
- Smooth surface
- Can cut various materials
- Can process extremely detailed parts
- Minimal loss of material
- Environmentally friendly
The fast, efficient, and precise ACCURL® Center provides top performance in waterjet machining of complex parts from many materials. From simple metals to complex composites, the 4' 7” square cutting area of the proven is ideal for rapid prototyping and just-in-time manufacturing of small to medium-sized parts. With simple fixation and easy access to the cutting table, the setup time is significantly reduced, increasing productivity and profitability.
| Model | MAX-WJ-1212D | MAX-WJ-2515D | MAX-WJ-3020D | ||
| Working table | mm | 1200 x 1200 | 2500 x 1500 | 3000 x 2000 | |
| X-axis | Stroke | mm | 1250 | 2550 | 3050 |
| Speed | m/min | 0~15 | 0~15 | 0~15 | |
| Y-axis | Stroke | mm | 1220 | 1520 | 2050 |
| Speed | m/min | 0~15 | 0~15 | 0~15 | |
| Z-axis | Stroke | mm | 200 | 200 | 200 |
| Speed | m/min | 0~12 | 0~12 | 0~12 | |
| Control accuracy | mm | ± 0.01 | ± 0.01 | ± 0.01 | |
| Cutting accuracy | mm | ± 0.01 | ± 0.01 | ± 0.01 | |
| High pressure system | Max. pressure | Mpa | 380 | 380 | 420 |
| Power | Kw | 37(50HP) | 37(50HP) | 37(50HP) | |
| Total electric power | kW | 38 | 38 | 38 | |
| Max. load of working table | Kgs | 1000 | 1000 | 1000 | |
| Format supported | AI, PLT, DXF, etc. | ||||
| Machine weight | Kgs | 2550 | 4350 | 5650 | |
| Outside dimension | mm | 2050x1850x1850 | 4050x2250x1850 | 4050x2250x1850 | |
