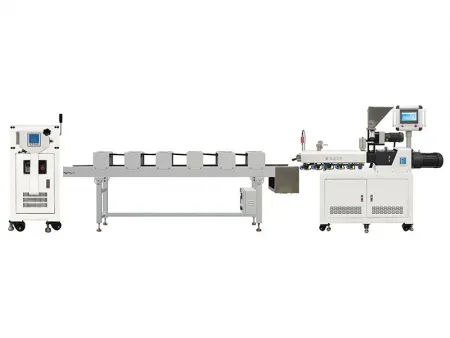

BP-8177-ZB Split Type Laboratory Twin Screw Pelletizing Line
Request a Quote

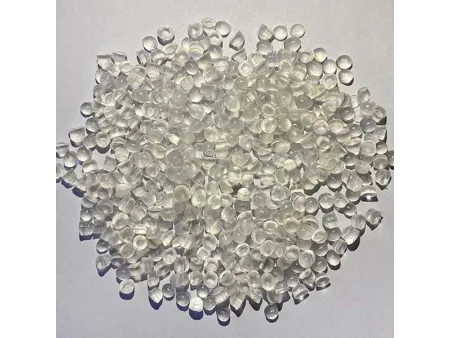

Laboratory pelletizer with twin screw extruder for the production of extruded pellets (granules) from plastic materials
- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 40:1
- Cutting speed: 1-20kg/h adjustable

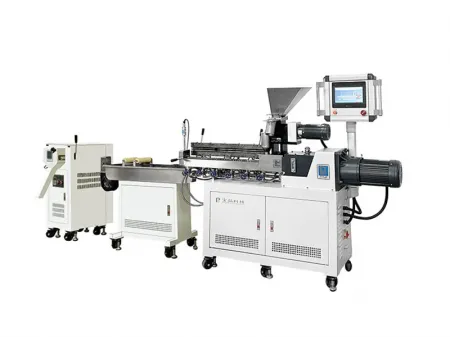

The split type laboratory twin screw pelletizing line features a twin screw extruder, water tank, and pelletizer. It is designed for the mixing, plastification, and extrusion of engineering plastics, modified plastics, and masterbatches. This system ensures homogeneous plastification, color sampling, and filling modification. The split-type design allows for easy opening of the extruder barrel for cleaning and inspection, making it perfect for industries that require frequent color changes and cleaning.
Optimize your polymer processing with the split type laboratory twin screw pelletizing line, designed for versatility and easy maintenance.
Technical Data
Twin Screw Extruder
- Output
Depending on raw material and process formula - Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request) - L/D ratio
40:1 - Screw rotating direction
co-rotating parallel (two screws rotate in the same direction) - Rotor speed
0-280rpm - Power supply
AC380V, 50Hz, 3-phase 5-wire - Dimensions (W×D×H)
1950×500×1500mm - Weight
285kg
Water Bath
- Material
304 stainless steel - Level control
Stainless steel water level control valve - Dimensions (W×D×H)
1200×260×800mm - Weight
28kg
Strand Pelletizer
- Number of strands
3 - Cutting speed
1-20kg/h (adjustable) - Cutter material
high-speed alloy steel - Power supply
AC380V, 10A, 3 phase - Dimensions (W×D×H)
450×430×850mm - Weight
125kg
