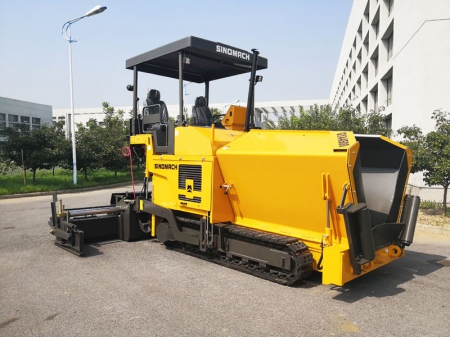

GYA4500 Asphalt Paver

Request a Quote

Website: http://sinomachhiglobal.com/11-2-asphalt-paver-clps90c.html

Small pavers are widely used for municipal roads, indoor work, small area projects, etc.
Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.

Consulting Products Information

The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.
External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.

Technical Specification:

Model	GYA4500
Length×Width×Height (mm):	5500×2050×3415
Total weight (kg):	10500
Engine	Cummins QSB 3.9-C125
Rated output (kw)	93
Basic paving width (mm)	2000
Max. paving width (mm)	4500
Max. paving thickness (mm)	200
Travelling type	Crawler
Travelling speed (km/h)	0-4.5
Paving speed (m/min)	0-20
Hoper capacity (t)	8

Besides the GYA4500 asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.

Gallery

Brief Description

SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
