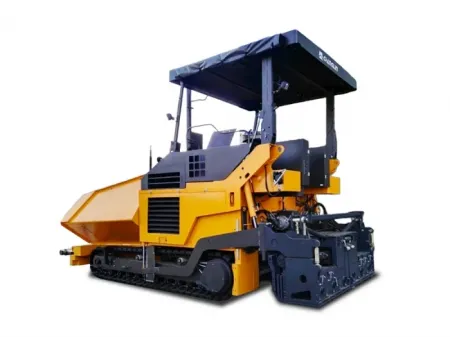

Asphalt Paver GYA9000
Request a Quote
- Hopper Capacity 16t
- Rated Power 194kW
- Max. paving width 9000mm
Video
- Large pavers are widely used in asphalt, stabilized soil construction operations such as highways, national roads, provincial roads, and urban roads.
- Cummins EFI engine, strong power, high reliability; good low temperature start-up performance, suitable for all kinds of complex working conditions, mountain and plateau construction operations.
- All imported hydraulic pumps, motors, valves, joints, reducers, radiators, water tanks, etc.
- Configure double vibrating, eccentric vibrating mechanical extension screed or hydraulic telescopic screed. The telescopic plate is equipped with screed tensioning system and pressurizing system to prevent screed deformation and meet the requirements of stable soil thickness paving operation.
Model | GYA9000 |
Length×Width×Height (mm): | 6720×2540×3887 |
Total weight (kg): | 26500 |
Engine | Cummins |
Rated output (kw) | 194 |
Basic paving width (mm) | 2500 |
Max. paving width (mm) | 9000 |
Max. paving thickness (mm) | 450 |
Travelling type | Crawler |
Travelling speed (km/h) | 0-3.6 |
Paving speed (m/min) | 0-20 |
Hoper capacity (t) | 16 |
