GYA4500 Track Asphalt Paver
This compact asphalt paver is designed for urban and highway construction projects, with a standard paving width of 2 meters and a maximum of up to 4.5 meters. Available in tracked or wheeled configurations, it ensures uniform asphalt distribution, preliminary compaction, and surface shaping, all while meeting required standards for layer thickness, smoothness, and density.
- Max. paving width 4.5 m
- Theoretical productivity 200 t/h
- Rated power 93kW

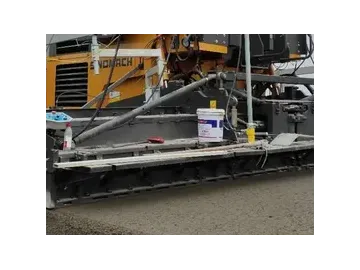

Reliable engine and adjustable screed
Powered by a Dongfeng Cummins electronic fuel injection engine, it delivers strong performance and reliable cold starts. The full-hydraulic, infinitely adjustable screed allows paving widths between 2 to 4.5 meters for flexible operation.
Durable components for extended service life
The auger blades and conveyor plates are made of wear-resistant alloy or hardened steel to ensure long-term durability and stable performance under continuous use.
Track system with rubber pads for surface protection
The rubber-padded crawler system provides excellent traction while enhancing the paver’s stability and minimizing surface damage during paving.
Large-capacity hopper with foldable push rollers
Designed to accommodate large material trucks while still allowing movement through confined spaces, the hopper ensures consistent material flow and adaptability on compact job sites.
General
- Traveling type Crawler
- Basic paving width 2.0m
- Max. paving width 4.5m
- Max. paving thickness 200mm
- Paving speed 0-20m/min
- Travel speed 0-4.5km/h
- Theoretical productivity 200t/h
- Hopper capacity 8t
- Gradeability ≥20%
- Flatness deviation (longitudinal wave) 2mm/3m
- Transverse wave deviation ±0.02%
- Degree of adjustment -1 to 3%
Engine
- Manufacturer Cummins
- Fuel tank capacity 115L
- Rated power 93kW
- Rated speed 2200rpm
- Electric system 24V
