- Product Standard: Q/EFR/J 1.1-2024
- Certifications: Chinese technical letters patent
- Diameter: ⌀80±2 (mm)
- Rated Power: 170-200 (W)
- Peak Power: 190-220 (W)

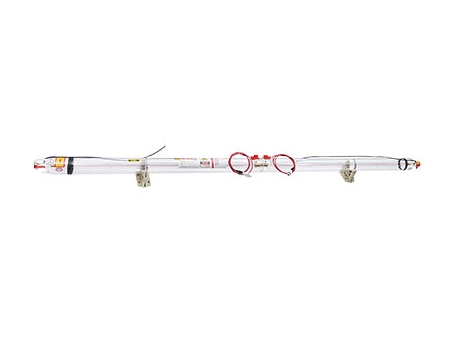

DF Series CO₂ Laser Tube
Request a Quote
Parameters
| Model | Length (mm) | Diameter (mm) | Output Power (W) | Max. Power (W) | Catalyst | Warranty |
| 1850±20 | ⌀80±2 | 170 | 190 | Yes | 360 days | |
| 2250±20 | ⌀80±2 | 200 | 220 |
Package Size
| Model | Packing | Dimensions (L*W*H)(cm) | Net Weight (kg) | Gross Weight (kg) |
| | Single Packing | 221*32*34 | 4.5 | 9 |
| | Single Packing | 242*32*34 | 5 | 10.55 |
Operating Condition
- Cooling method: Water cooling
- Cooling liquid: clean water
- Flow rate: 3-5L/min
- Standard water temperature: 10℃-40℃
- Ambient temperature: 2℃ -40℃
- Ambient humidity: 10-60%
Features

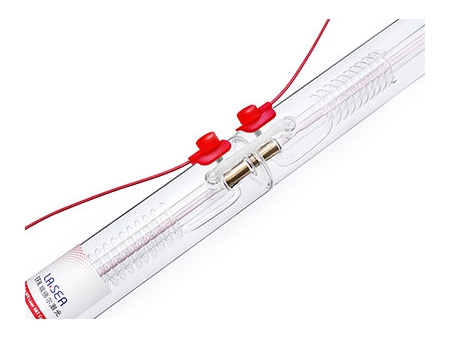

- CO₂ laser tube features a coaxial concentric multi-segment structure. High voltage is positioned in the center of the laser, while low voltage is placed on both ends of the laser. This achieves segmented discharge, and greatly reduces starting and operating voltage. Therefore, the working efficiency is significantly improved due to increased output power.
- The CO₂ laser tube with the multi-segmented structure integrates the advantages of various types of laser tubes including low, medium and high power. It's characterized by quick response, small laser spot size, high output power, high stability, etc. These features make it a great choice in cutting, marking, and engraving on various materials in different industries.
- Designed with a high voltage protection device, dust and moisture can be greatly prevented. With prolonged service life, this CO₂ laser tube can be used in various complex industrial working environments.
