Plow

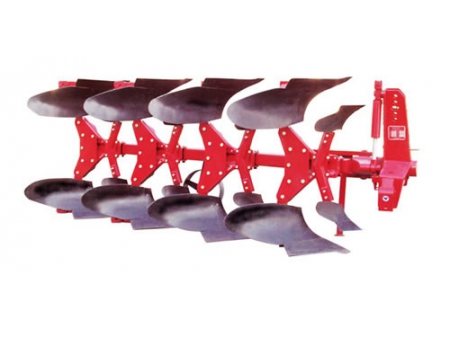

Reversible plow

Product Name Model Plowing Width (m) Matched Power (Hp)
1LF-30/35 series reversible plow 1LF-330/335/430/435/535 0.9-1.75 50-130

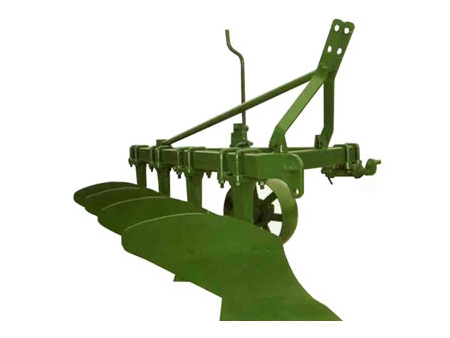

Furrow plow

Product Name Model Plowing Width (m) Matched Power (Hp)
1LF-30/35 series reversible plow 1LF-330/335/430/435/535 0.9-1.75 50-130

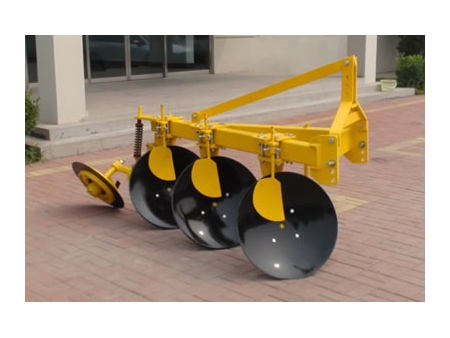

Disc plow

Model Unit
1LYQ(T)-220
1LYQ(T)-315
1LYQ(T)-320
1LY(T)-325
1LY(T)-330
1LY(T)-425
1LY(T)-525
1LY(T)-625
Plowing Width mm 0.4 0.45 0.6 0.75 0.90 1.0 1.25 1.5
Plowing Depth mm 200 180 200 250 300 250 250 250
Disc Diameter mm 510 450 510 660 710 660 660 660
Number of disc pcs. 2 3 3 3 3 4 5 6
Weight kg 150 180 190 420 470 500 560 650
Matched power Hp ≥18 ≥25 25-40 ≥50 70-90 90-120 120-140 120-160
Linkage - Three-point suspension

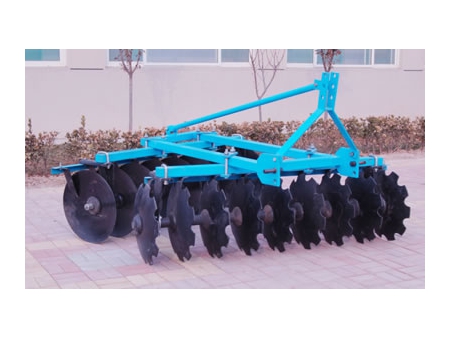

Disc harrow
Product Name Model Width (m) Matched Power (Hp)
1BQX series three-point suspension light-duty harrow 1BQX-1.1/1.3/1.5/1.7/1.9/2.3 1.1-2.3 12-50
1BQD series light-duty opposed disc harrow 1BQD-1.6/2.0/2.4 1.6-2.4 30-60
1BZD series hydraulic heavy-duty opposed disc harrow 1BZD-2.8/3.3/3.8 2.8-3.8 80-160
1BJX series three-point suspension medium-duty harrow 1BJX-1.8/2.0/2.2/2.4/2.5 1.8-2.5 45-80
Heavy-duty harrow (South America style) TSM-12/14/16/18/20 1.2-2.0 75-140
Double-folding wing hydraulic medium-duty harrow, 1BJ type 1BJ-4.4/5.3 4.4-5.3 80-160
TAY series heavy-duty harrow TAY28/32/36-28 2.8-3.6 180-260

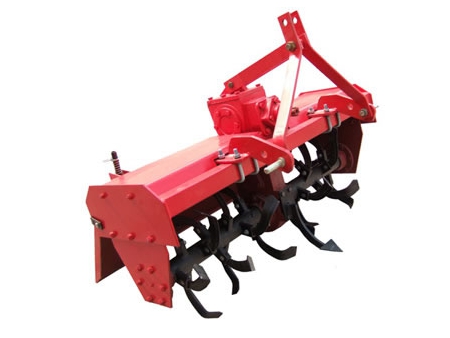

Rotary tiller
Product Name Model Width (m) Matched Power (Hp)
1G series rotary tiller with lateral drive 1G-90/100/125/140/150 0.9-1.5 12-30
1GN series rotary tiller with intermediate drive 1GN-100/120/130/150/160 1.0-1.6 15-45
1GNQ series rotary tiller 1GQN-165/170/180/200/230/250 1.65-2.5 40-100
1GQQN-J series frame-type rotary tiller with high box body 1GQQN-180/200/230/250/280/300/350 J 1.8-3.5 50-160
European style 1GL and 1GQL series rotary tiller 1GL-130/150/160/180 1.3-1.8 20-55
1GQN-JDSL series frame-type stubble ploughing, rotary tillage and subsoiling ridger 1GQN-JDSL125/140/165/180/210/240/250 1.25-2.5 25-80

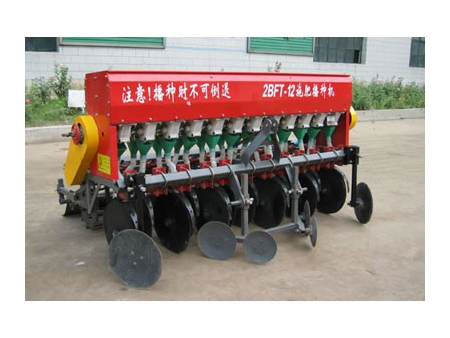

Seeder
Product Name Model Width (m)/Row Number Matched Power (Hp)
2BFSF-24 seeder (Separate seeding and fertilization) 2BFSF-24 3.6/44 55-70
2BFT-14 seed and fertilizer drill 2BFT-14 1.8/12 20-30
2BFX-24 seeder 2BFX-24 3.6/24 60-80
2BFY-24/28/36 combined seed and fertilizer drill 2BFY-24/28/36 3.6-5.4/24-36 55-120
2BX-18 seeder 2BX-18/24 2.7-3.6/18-24 55-100
2BFY-6A corn combined seed and fertilizer drill 2BFY-6A 5.0/8 50-100
2BQ-3/5/6 air-suction precise seeder 2BQ-3/5/6 1.8-3.6/3-6 30-70

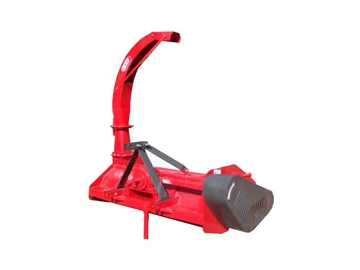

Shredded straw collecting machine
Product model 4JQ-1.8
Working width (m) 1.8
Shredding length (mm) 30-100
Stubble height (mm) 100-150
Matched power (Hp) 60-80

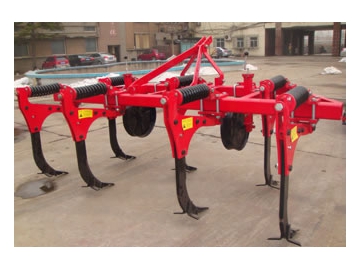

Subsoiler
Product model 1S-300
Working width (m) 3.0
Number of shovels 3-7
Row spacing (mm) 400-600
Subsoiling depth (mm) 250-400
Matched power (Hp) ≥90

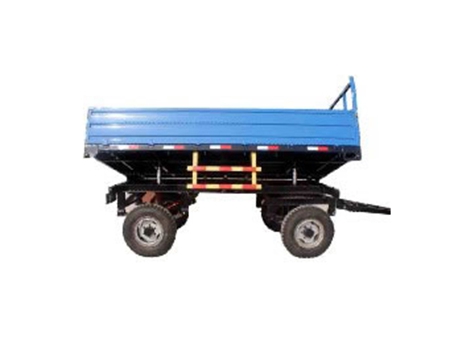

Trailer
Product Name Model Load (t)
7C series trailer 7C-1.5/2/2.5/3.5/4 1.5/2/2.5/3.5/4
7CX series self-dump trailer 7CX-4-20 4-20
Grapple trailer ZMJ-8-600 3.6/24

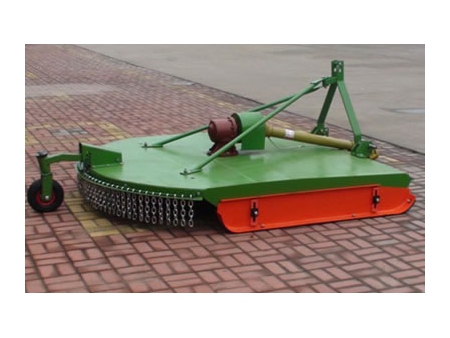

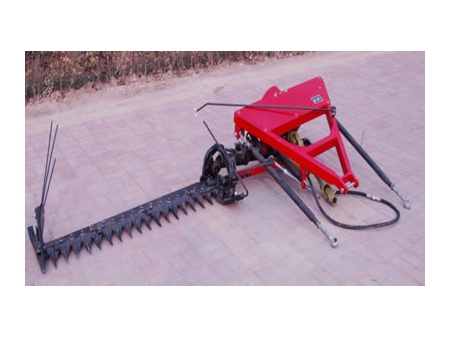

9G series mower
Model Unit 9G-1.4 9G-1.6 9G-1.8 9G-2.1
Cutting width m 1.4 1.6 1.8 2.1
Cutting height cm 5-6 5-6 5-6 5-6
Total weight kg 140 160 180 200
Matched power Hp 15 18 20 25
Linkage - Standard three-point suspension
Model Unit 9GX-1.5A 9GX-1.8A 9GX-2.1A
Cutting width m 1.5 1.8 2.1
Cutting height cm 20-50 20-50 20-50
Total weight kg 380 490 550
Matched power Hp 40-60 60-80 70-90
Linkage - Three-point suspension

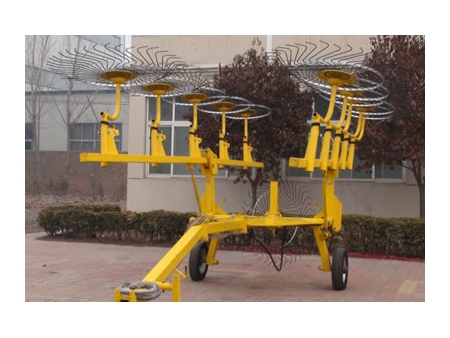

Hay rake
Model Unit
TSWR-11
TSWR-13
Working width mm 6500 7000
Swath width mm 1200-1500 1200-1500
Transport dimension (L×W×H) mm 7800×3520×2600 8500×3520×2600
Spring tooth diameter mm 1450 1450
Towing height mm 470 (adjustable) 580 (adjustable)
Matched power Hp 80-100 80-100
Potato planter and harvester

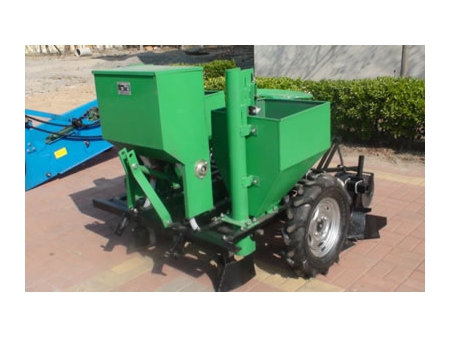

Potato planter

Model Unit
2CM-1
2CM-2
Overall weight kg 90 200
Row spacing cm - 50-80
Planting distance cm 25-33 25-33
Matched power Hp 18-25 25-35
Linkage Three-point suspension

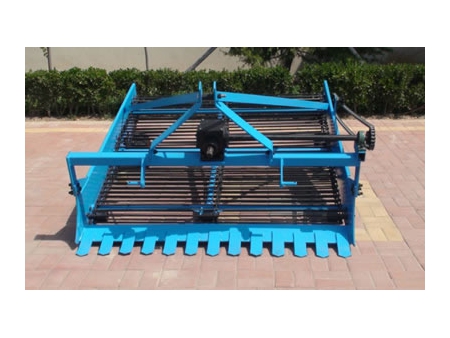

Potato harvester

Model Unit
4UD-1
4UD-2
Overall weight kg 125 200 420
Working width cm 60-80 60-80 1.3-1.5
Matched power Hp 25-35 25-35 50
Linkage - - Three-point suspension
