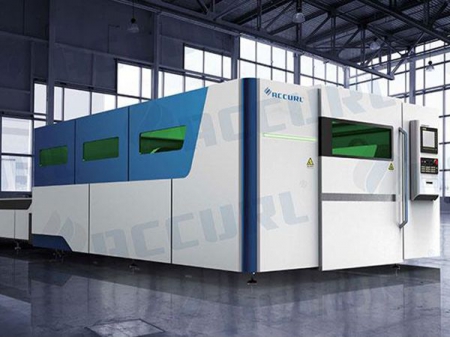

1kW IPG Fiber Laser CNC Aluminum Cutting Machine
Request a Quote
ACCURL's 1000Watt fiber laser cutting machine features a fast cutting and energy efficiency, especially when compared to CO2 lasers. With its easy to use structure that requires little to no maintenance, its service is among the highest of fiber lasers, and s globally recognized for its efficiency.
Features
- User friendly FISCUT CypCut CNC control unit
- Very easy to operate.
- Quick and easy installation.
- Low investment and operating costs.
- The most cost-efficient solution for every requirement.
- Flexible beam path
- High output power
- High optical quality
- Up to 00 faster cutting
- High wall plug efficiency (>0)
- Copper, brass cutting ability
- Advanced Raytools cutting head (with air cross blast).
- High performance and high accuracy rack and pinion system.
- Dual proportional valve control system for different gas pressures and special system for high
Standard Equipment
- FISCUT CypCut CNC Controller
- IPG YLS-1000W Ytterbium Laser Resonator
- Automatic Double Pallet Changer(Shuttle Table)
- Precision Rack & Pinion Drive System (Made in Germany)
- Radan or Lantek CAD/CAM system
- Light source
- Chiller
- 3 lower protective lenses
- Fiber Beam Transmission System (Fiber Cable)
- Operates with both N2 and O2 (cutting) gases
- Home Position Alignment System
- Auxiliary Gas Selector
- Auto Reflection Warning
- Working Lights
- 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)
Specifications
| Laser power | 1000W IPG Fiber Laser Cutting Machine |
| Laser source | Germany IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 14kW |
| Position accuracy X, Y and Z axle | 0.03mm |
| Repeat position accuracy X, Y and Z axle | 0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 2.1G |
| Max load of working table | 1000kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit
| Material | Cutting Thickness Limit |
| Carbon steel | 12mm |
| Stainless steel | 6mm |
| Aluminum | 4mm |
| Brass | 3mm |
| Copper | 3mm |
Main Parts
| Article Name | Remark |
| Fiber laser resonator | IPG (Germany)/1000W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | TONG FEI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
Detailed Pictures

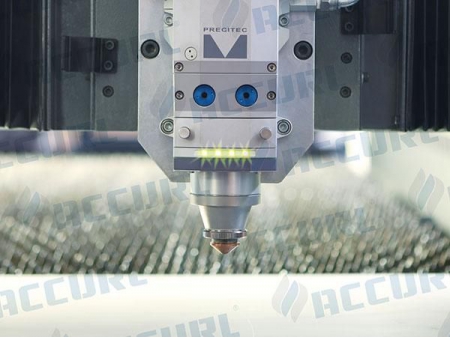

- Germany PRECITEC Laser Cutting Head

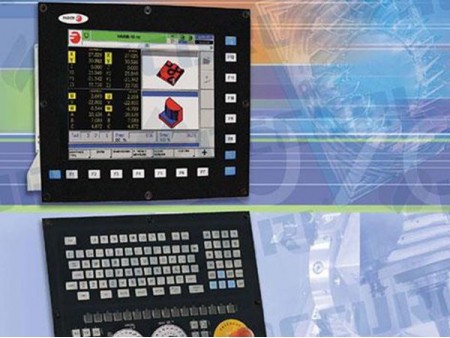

- Spain FAGOR 8060 CNC System
- Spain FAGOR Servo motor and drive

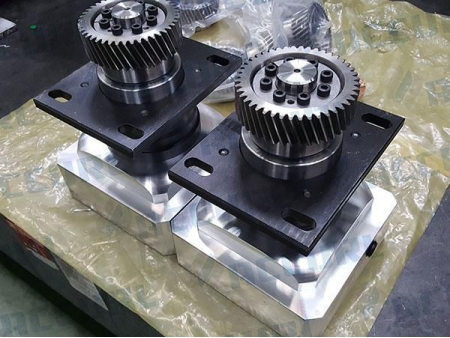

- STOBER Precision Rack and Pinion Drive System (Made in Germany)

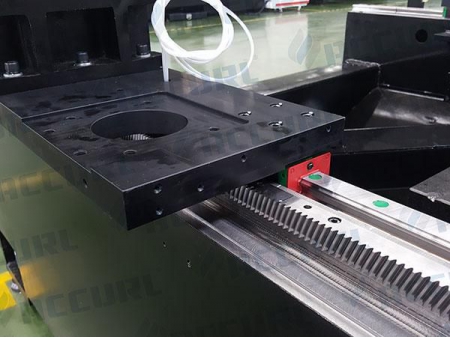

- Linear guide and Rack

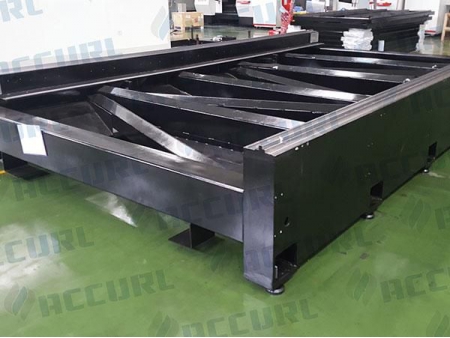

- Framework by heat treatment

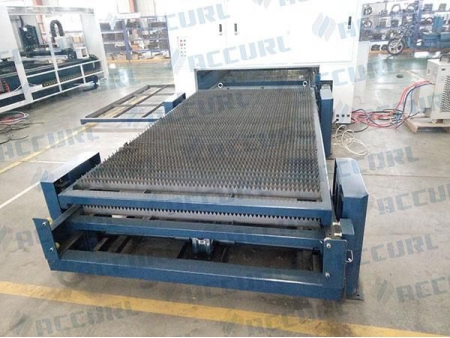

- Automatic Double Pallet Changer(Shuttle Table)
