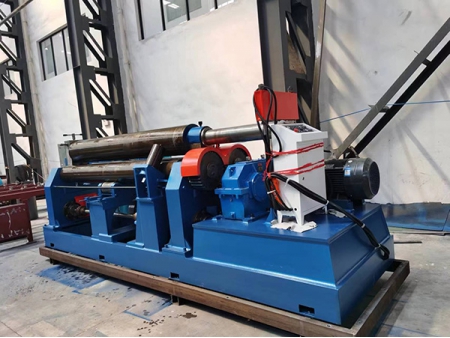

Our series of 3-roll mechanical plate bending machines are designed to accommodate the precise bending requirements of metal plates. Available in symmetrical, asymmetrical, and vertical configurations, they are pivotal in cold rolling cylindrical and arc shapes with exactitude, catering to various mechanical fields including, but not limited to, boiler production, chemical processing, mining, infrastructure development, and naval construction.

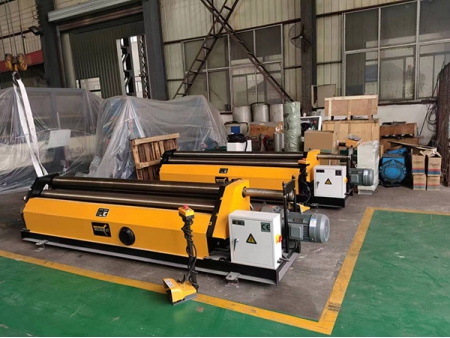

The symmetrical 3-roll benders are versatile units, ideal for processing steel plate thicknesses from 3 to 40mm, delivering consistency across various bending operations. The asymmetrical benders excel with their dual functionality, enabling sophisticated pre-bending and rolling processes encased within a design that emphasizes ease of operation and maintenance for steel plates from 1 to 10mm thick.

Applications

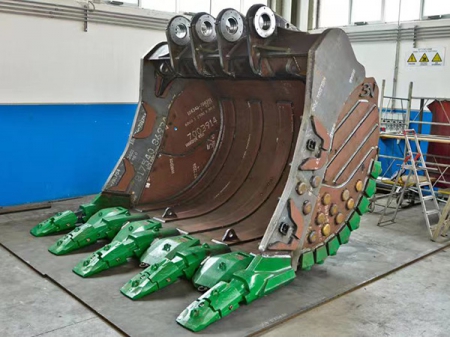

  • Construction machinery (excavator bucket)

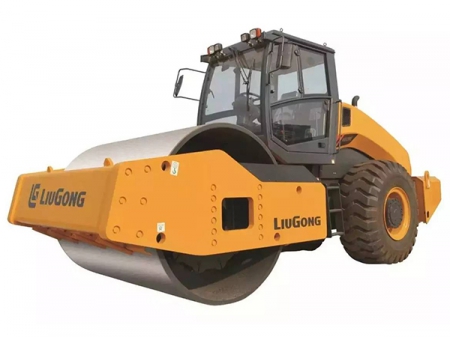

  • Construction machinery (road roller)
  • Conveyor roller

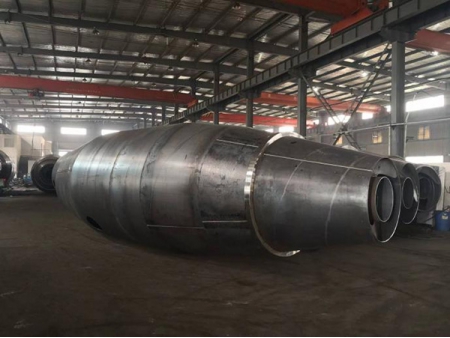

  • Mixer tanks of concrete mixer trucks

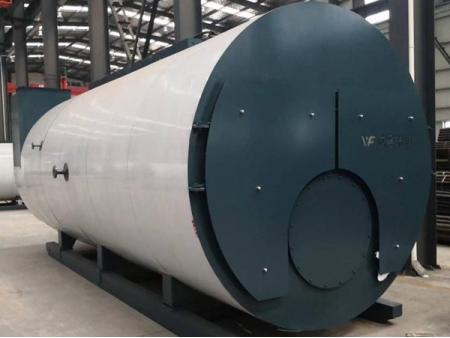

  • Boiler

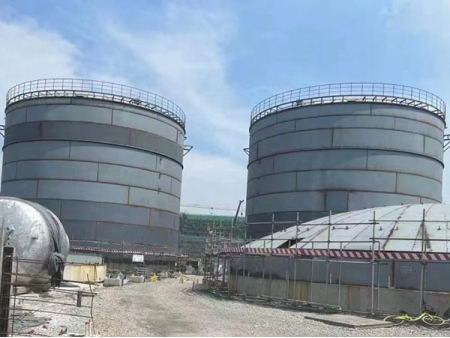

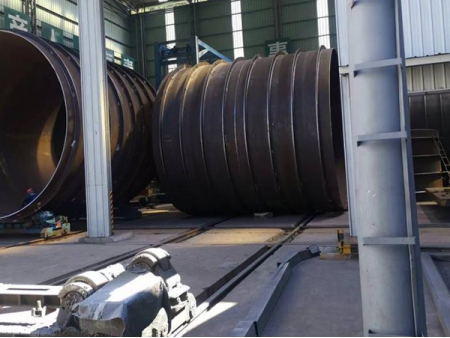

  • Steel silo
  • Drum dryer
  • Pressure vessel
Specifications
W11 Series 3-Roll Plate Bending Machine
Model Max. plate thickness (mm) Max. plate width (mm) Yielding limit (Mpa) Rolling speed (m/min) Diameter of upper roller (mm) Motor power (kW)
W11-4×1500 4 1500 245 5 150 3
W11-6×1500 6 1500 245 5 150 4
W11-6×2000 6 2000 245 4.5 170 5.5
W11-6×3200 6 3200 245 4.5 220 7.5
W11-8×2000 8 2000 245 4.5 185 5.5
W11-8×2500 8 2500 245 4.5 240 7.5
W11-12×2000 12 2000 245 4.5 240 7.5
W11-12×2500 12 2500 245 4.5 260 11
W11-12×3000 12 3000 245 4 280 11
W11-16×2000 16 2000 245 4 260 11
W11-16×2500 16 2500 245 4 280 15
W11-16×3200 16 3200 245 4 340 18.5
W11-20×2000 20 2000 245 4 280 15
W11-20×2500 20 2500 245 4 340 18.5
W11-25×2000 25 2000 245 4 330 18.5
W11-25×2500 25 2500 245 4 370 22
W11-30×2500 30 2500 245 4 420 30
W11-30×3000 30 3000 245 4 450 37
W11F Series 3-Roll Plate Bending Machine
Model Max. plate thickness (mm) Max. plate width (mm) Yielding limit (Mpa) Rolling speed (m/min) Diameter of upper roller (mm) Motor power (kW)
W11F-2x1000 2 1000 245 5 100 2.2
W11F-2x1200 2 1200 245 5 105 2.2
W11F-2x1500 2 1500 245 5 108 2.2
W11F-2x2000 2 2000 245 5 115 2.2
W11F-4x1000 4 1000 245 4.5 115 3
W11F-4x1200 4 1200 245 4.5 118 3
W11F-4x1500 4 1500 245 4.5 120 3
W11F-4x2000 4 2000 245 4.5 130 3
W11F-6x1000 6 1000 245 4.5 145 3
W11F-6x1500 6 1500 245 4.5 150 4
W11F-6x2000 6 2000 245 4.5 160 4
W11F-8x2000 8 2000 245 4.5 170 4
W11F-8x2500 8 2500 245 4.5 190 5.5
Details

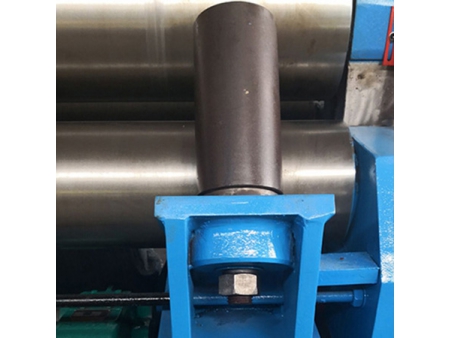

    1. Reinforced cone rolling devices, solidly welded onto the base, provide stability and long-lasting durability on either side

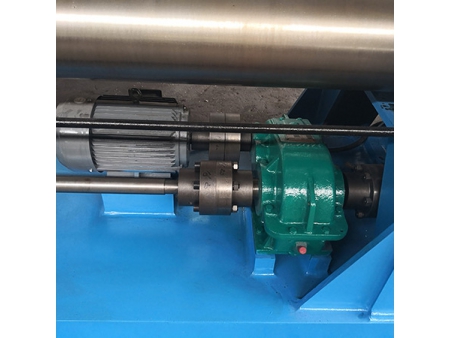

    1. Equipped with high-quality couplings to ensure multiple connection sets, easy maintenance and robust endurance
  • Utilizes forged screw rods and worm gears with ultra-wear-resistant zinc-based alloy for the worm wheels and nuts, securing stable operation
  • Siemens electrical components are used throughout the 3-roll bending machines, featuring advanced heavy-duty linear guide rail structures
  • The plate benders’ transmission and elevation mechanism components, such as screws, worms, and gears, are all forged with high precision
  • The solid forged roller shafts are subjected to high-standard heat treatment processes for optimal performance
  • Medium to large models are equipped with YZR lifting motors to ensure stability of the instantaneous current at startup and feature ZSY hard-tooth surface gear reducers for high torque and prolonged durability
Standard Configurations
  • Solid roller shafts equipped with flaw detection
  • Roller shafts subjected to quenching and tempering treatments, reaching a hardness of HRB-240-280 for resilience
  • Surface hardening of roller shafts to HRC45-50, providing superior wear resistance
  • Equipped with various user-friendly operation panels for enhanced convenience and efficiency
Related Products
Related products
