2 Roll Plate Bending Machine
Hydraulic bending roll for thin sheet metal rolling and forming
Hydraulic bending roll for thin sheet metal rolling and forming

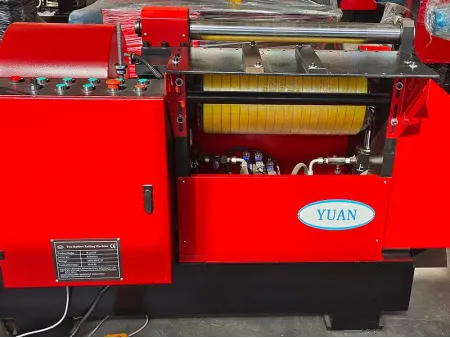

The 2-roll plate bending machine represents a cutting-edge addition to plate bending technology, boasting efficiency, precision, and automation in plate rolling processes. This highly advanced equipment is adept at bending various materials including carbon steel, stainless steel, and galvanized sheets with exceptional diameter accuracy and circularity. Notably, it excels in batch rounding of thin sheet metal, with a maximum coil thickness of 6mm and maximum coil diameter of 600mm.
- Features
- Specifications
- Components
- Ensures rapid production with a short cycle time of 4-20 seconds per workpiece.
- Eliminates the need for pre-bending with single-pass molding.

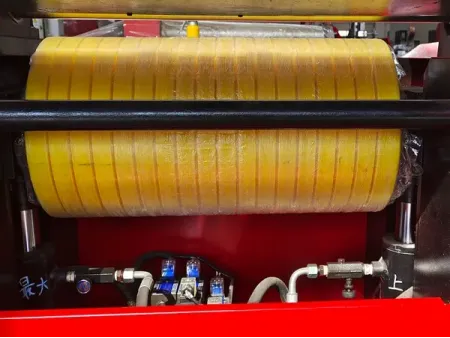

- Features one steel roll and one polyurethane roll (flexible roller), preventing surface wear on the sheet and ensuring optimal performance, particularly with stainless steel materials.
- The 2-roll plate bending machine is widely employed in the rounding and mass production of thin-walled pipes in various industries. It is instrumental in the cylindrical rolling of stainless steel, carbon steel, aluminum, copper, and other metal materials.
- Specific applications include the production of cylindrical components such as the water storage shell of solar water heaters, pressure vessels, automobile fuel tanks, food machinery parts, and firefighting equipment. Additionally, it caters to the manufacturing needs of hardware, household appliances, and other industrial sectors, facilitating the production of cylindrical or semi-cylindrical products with precision and efficiency.
Standard Hydraulic 2 Roll Plate Bending Machine
| Model | ||||
| Power (kW) | 3 | 3 | 6 | 6 |
| Rated pressure (Mpa) | 3-8 | 3-8 | 4-12 | 4-12 |
| Workpiece thickness (mm) | 0.8-2.5 | 0.8-2.5 | 0.8-3.5 | 0.8-3.5 |
| Workpiece diameter (mm) | 90-300 | 100-300 | 150-450 | 200-450 |
| Workpiece length (mm) | 50-500 | 50-700 | 50-1000 | 50-1500 |
Heavy Duty Hydraulic 2 Roll Plate Bending Machine
| Model | ||||
| Power (kW) | 6 | 6 | 7.7 | 7.7 |
| Rated pressure (Mpa) | 4-12 | 4-12 | 5-16 | 5-16 |
| Workpiece thickness (mm) | 0.8-6 | 0.8-6 | 0.8-6 | 0.8-6 |
| Workpiece diameter (mm) | 100-450 | 100-450 | 200-600 | 200-600 |
| Workpiece length (mm) | 10-500 | 100-700 | 100-1000 | 100-1500 |
Standard Configurations
- 45# steel constructed top roller

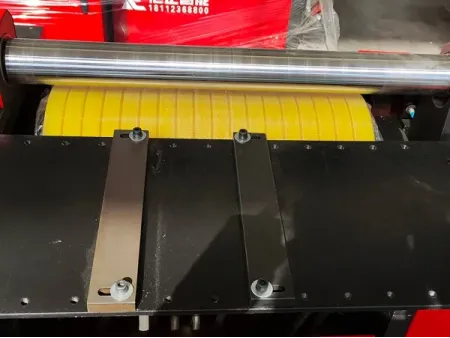

- Polyurethane-coated steel bottom roller, with lifting device facilitating easy adjustment and positioning

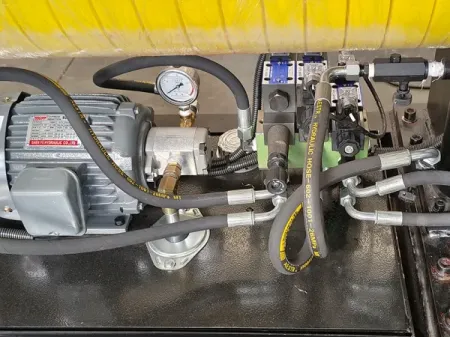

- Compact integrated hydraulic system with stable pressure and minimal noise

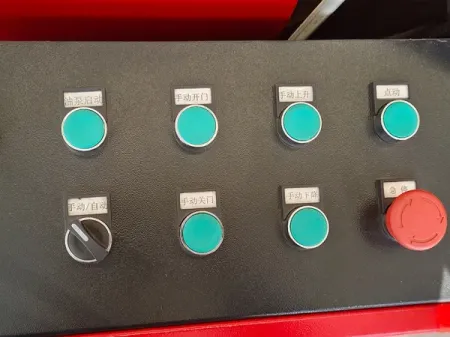

- Korea LG PLC control
- Automated production
Optional Configurations
- Upper support
- Side support
- Roller sets of various specifications
- Fully automated bending
- CE certificate
Details
Working Principle

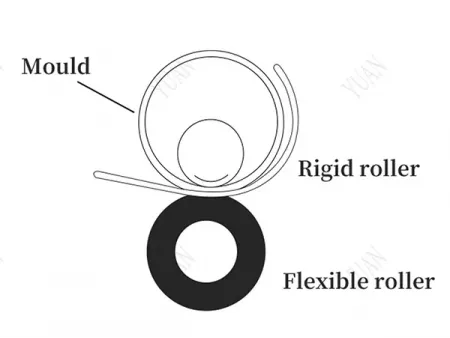

A plate rolling machine operates by passing a metal plate through a series of rolls to gradually bend it into the desired curvature or shape. The bending is usually completed in 4-20 seconds.
- Mould
- Rigid roller
- Flexible roller
