80mm 40W Brush DC Gear Motor Manufacturer

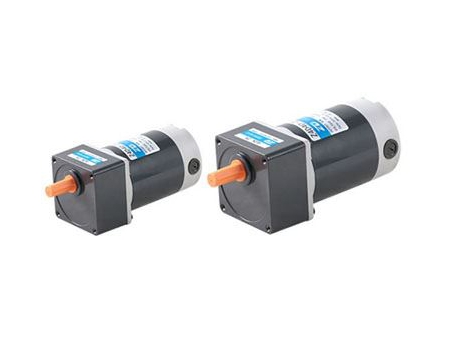

80mm 40W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-6-brush-dc-gear-motor.html

Motor Specifications

Mode	Voltage	Power	Noload Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z4040-12	12	40	3100	2.0Max.	2800	136	5.2	2000	1.8
Z4D40-24	24	40	3100	0.8Max	3000	127	2.1	2000	1.8
Z4D40-90	90	40	3200	0.3Max	3000	127	0.7	2000	1.8

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	400	333	240	200	166	120	100	83	60	50	40	33	30	25	20	16
Z4D40-24GN-30S	4GN()RC 4GN()RT	0.70	0.84	1.16	1.39	1.67	2.32	2.78	3.34	4.64	5.01	6.27	7.52	80.0	80.0	80.0	80.0
Z4D40-24GN-30S	4GN()RC 4GN()RT	7.14	8.57	11.8	14.2	17.0	23.7	28.4	34.1	47.3	51.1	64.0	76.7	80.0	80.0	80.0	80.0

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z4D40-24GN	Speed r/min	000	833	600	500	400	333	300	240	200	167	150	120	100	83	75	60	50	40	33	30	25	20	17	15
	4GN()K	0.31	0.37	0.52	0.62	0.77	0.93	1.03	1.29	1.55	1.86	2.06	2.32	2.78	3.34	3.71	4.64	5.01	6.27	7.52	8.00	8.00	8.00	8.00	8.00
	4GN()K	3.03	3.64	5.05	6.06	7.58	9.10	10.1	12.6	15.2	18.2	20.2	22.7	27.3	32.7	36.4	45.5	49.1	61.4	73.7	80.0	80.0	80.0	80.0	80.0

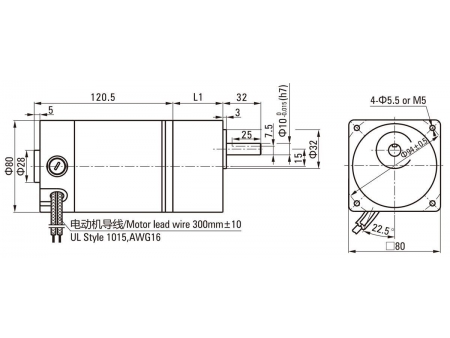

L1=42.5mm
